Shift Lock System Electrical Parts Location

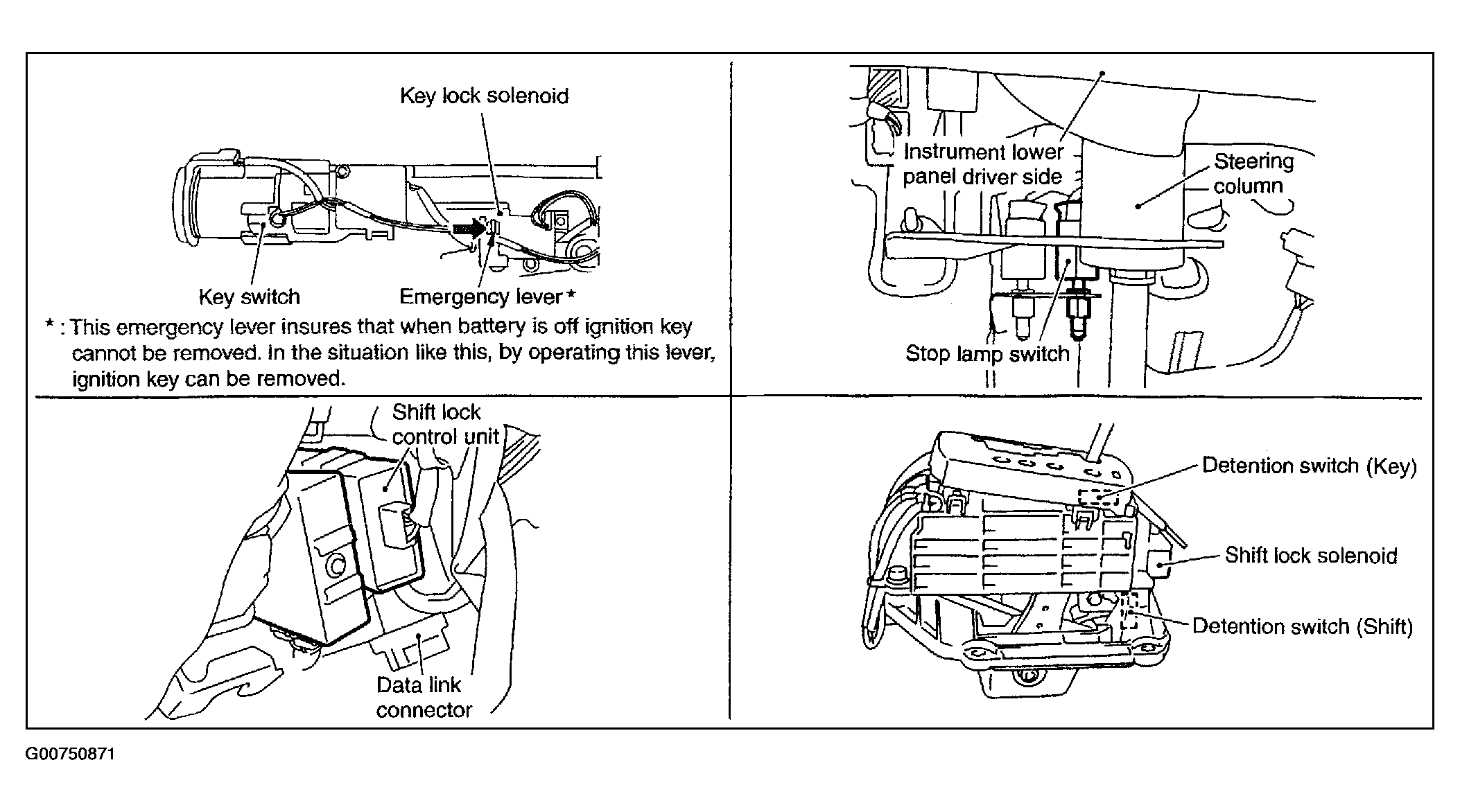

Fig 1: Locating Shift Lock System Electrical Components

G00750871

Courtesy of NISSAN MOTOR CO., U.S.A.
