BCM Input/Output Signal Standard
BCM Input/Output Signal Standard

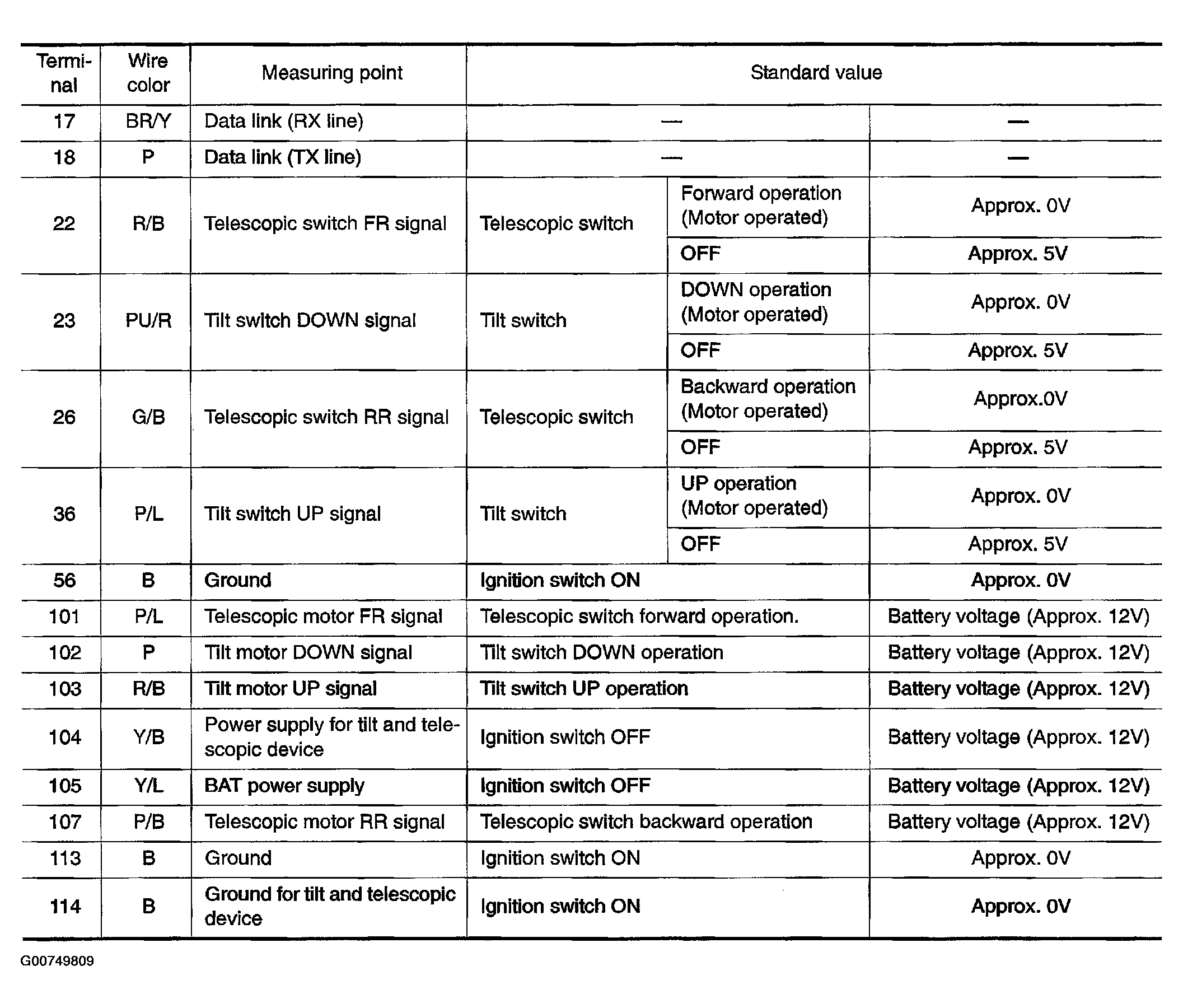

Fig 1: BCM Input/Output Signal Standard
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
