Circuit Description

WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

While a switch signal of the power mirrors is transmitted to the mirror ECU as well. This time the power mirrors face upward and downward or right and left. See Fig 1.

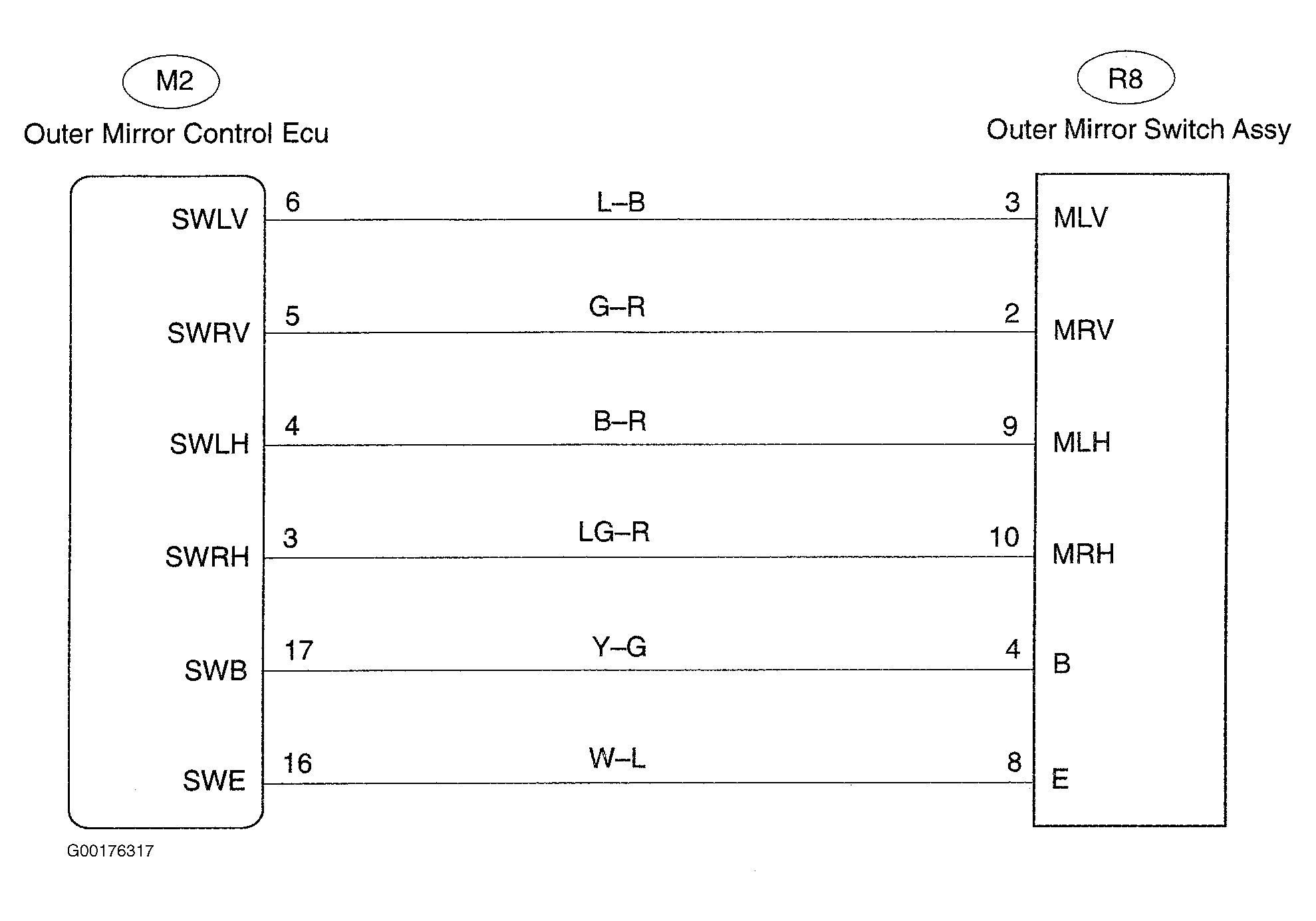

Fig 1: Identifying Outside Rear View Mirror Switch Circuit
G00176317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
