DTC P1220: Fuel Pump Control Module (FPCM)
>>
Diagnostic Procedure
>>
1. Check Ground Connections
1. Check Ground Connections
Turn ignition switch OFF.
Loosen and retighten two ground screws.

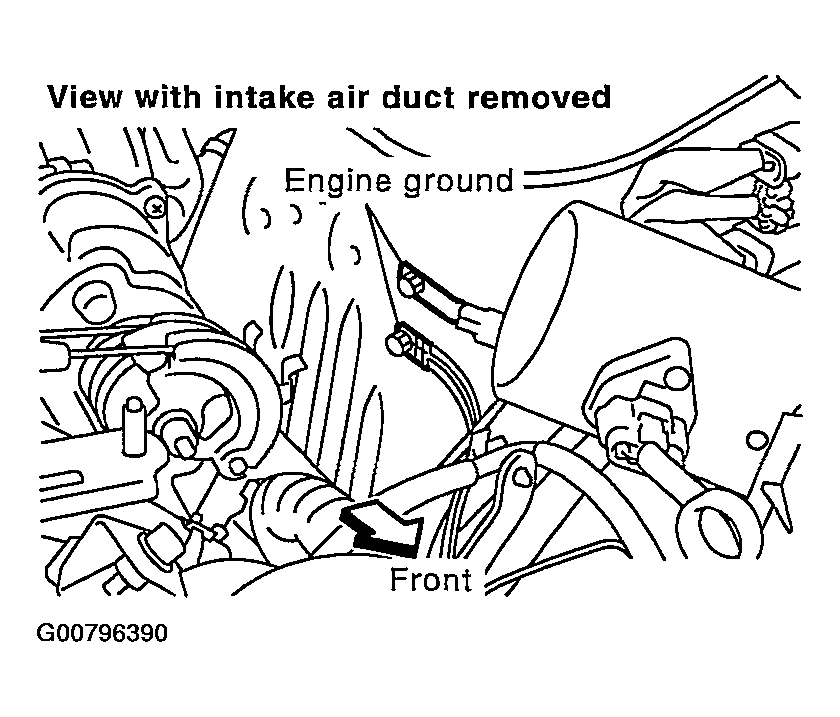

Fig 1: Identifying Engine Ground Wires
Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
OK: GO TO 2.
NG: Repair or replace ground connections.
