On Board Diagnosis Logic

NOTE: These self-diagnoses have the one trip detection logic.

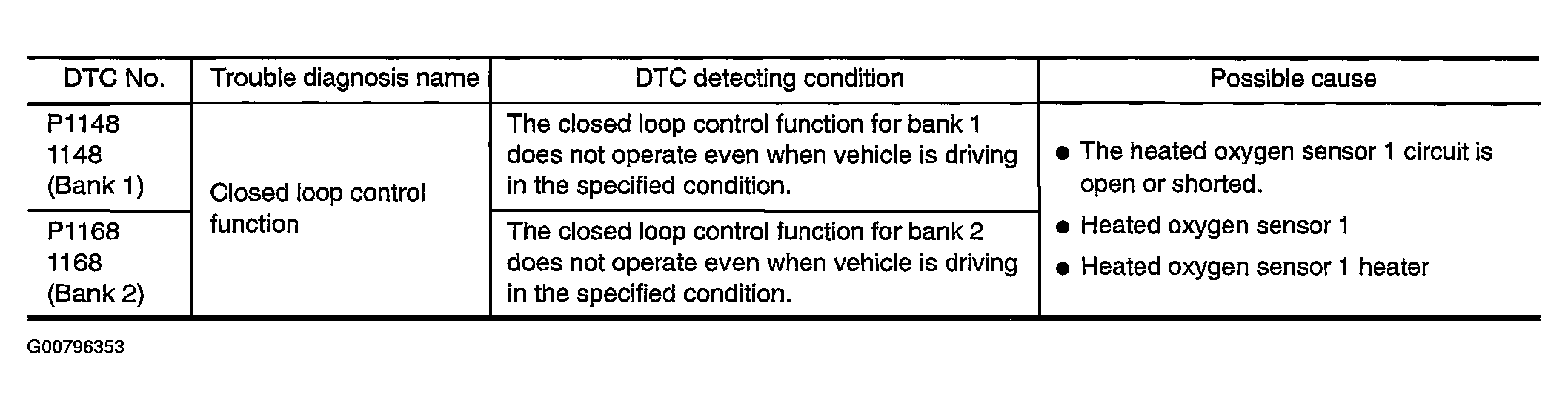

Fig 1: On Board Diagnosis Logic Chart

G00796353

Courtesy of NISSAN MOTOR CO., U.S.A.
