DTC P1144, P1164: Ho2S1
>>
CONSULT-II Reference Value in Data Monitor Mode
CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

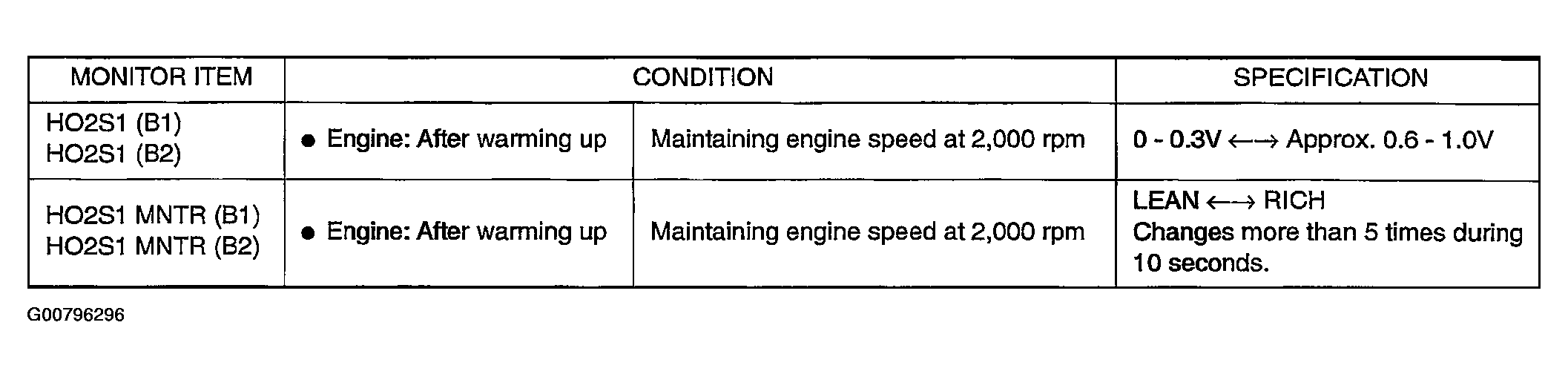

Fig 1: Reference Value Specifications Displayed In Data Monitor Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
