Terminals and Reference Value for Multifunction Switch

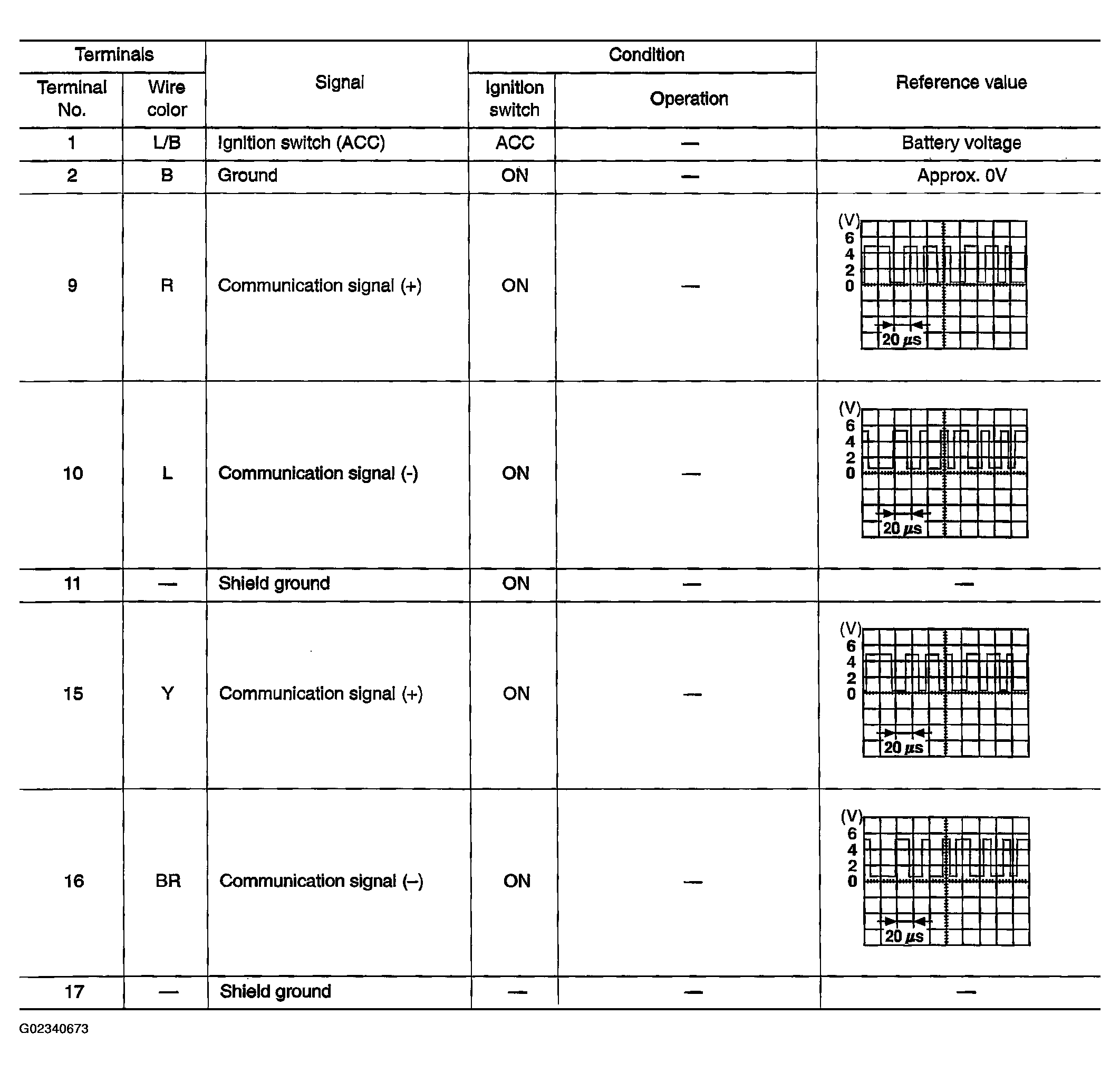

Fig 1: Terminals & Reference Value Chart For Multifunction Switch

G02340673

Courtesy of NISSAN MOTOR CO., U.S.A.
