Consult-II Reference Value In Data Monitor Mode

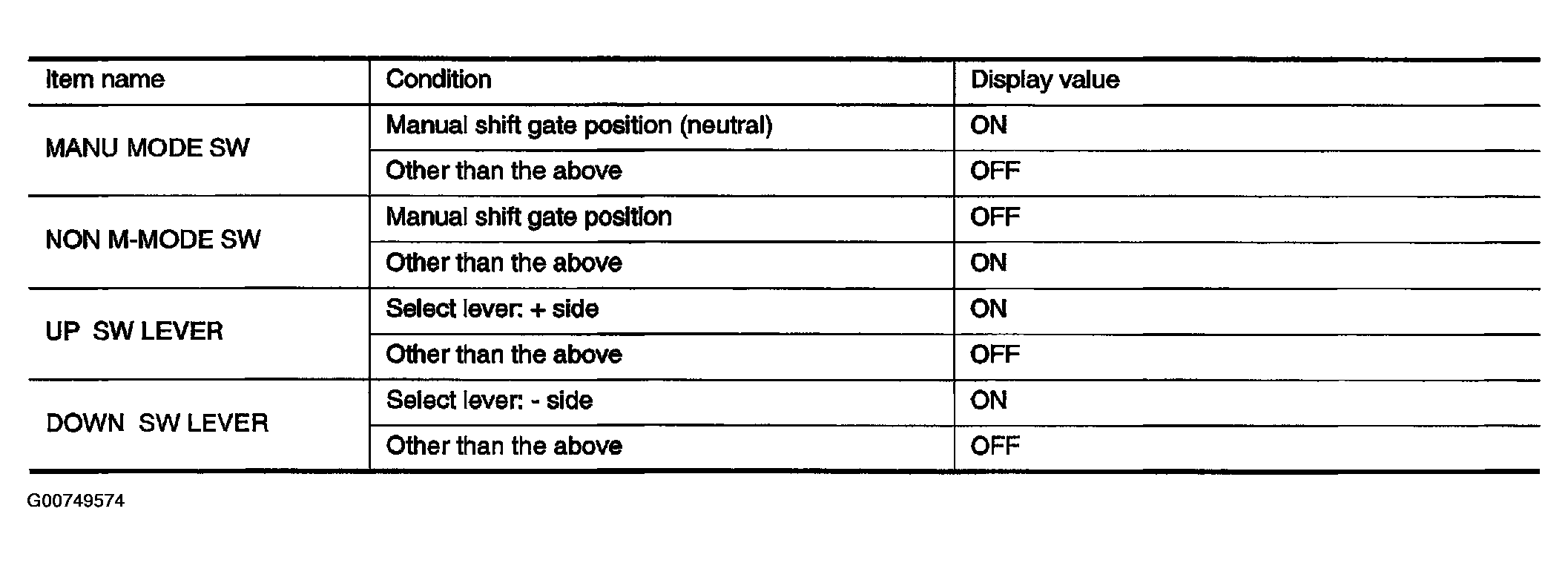

Fig 1: Consult-II Reference Value For DTC P1815 Manual Mode Switch

G00749574

Courtesy of NISSAN MOTOR CO., U.S.A.
