Terminals And Reference Value For Dual Mode Muffler Control Unit

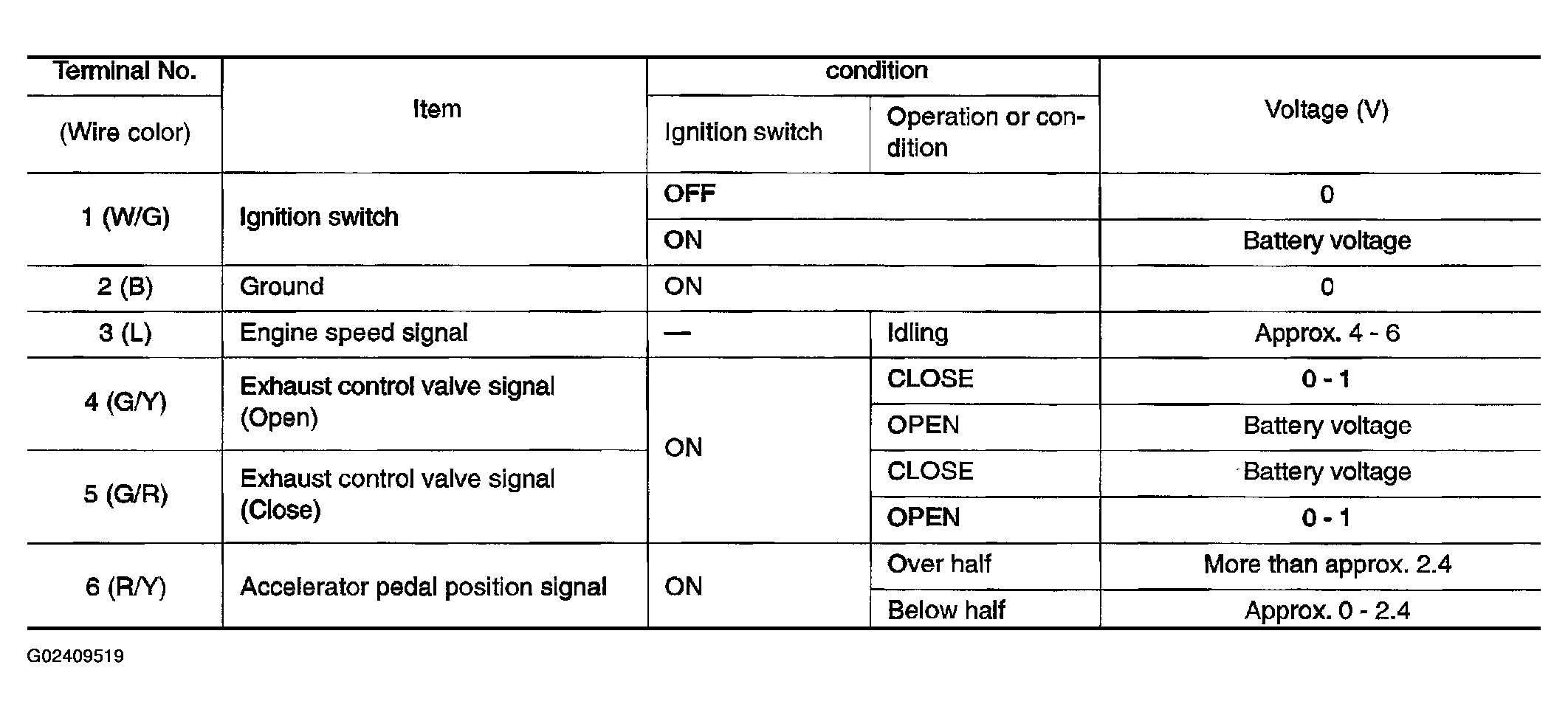

Fig 1: Dual Mode Muffler Control Unit Terminal Specifications

G02409519

Courtesy of NISSAN MOTOR CO., U.S.A.
