Quick Reference Table
CAUTION:
- When multifunction switch has a malfunction, you can not start.
- Check the following when the self-diagnosis mode you can not use:
- AV communication line between AV control unit and Display, AV communication line between Display and multifunction switch.
- multifunction switch power supply and ground circuit
- When an error is in the AV communication line, it cannot be detected on the screen because self-diagnosis is inoperative. However, the error can be detected with CONSULT-II.

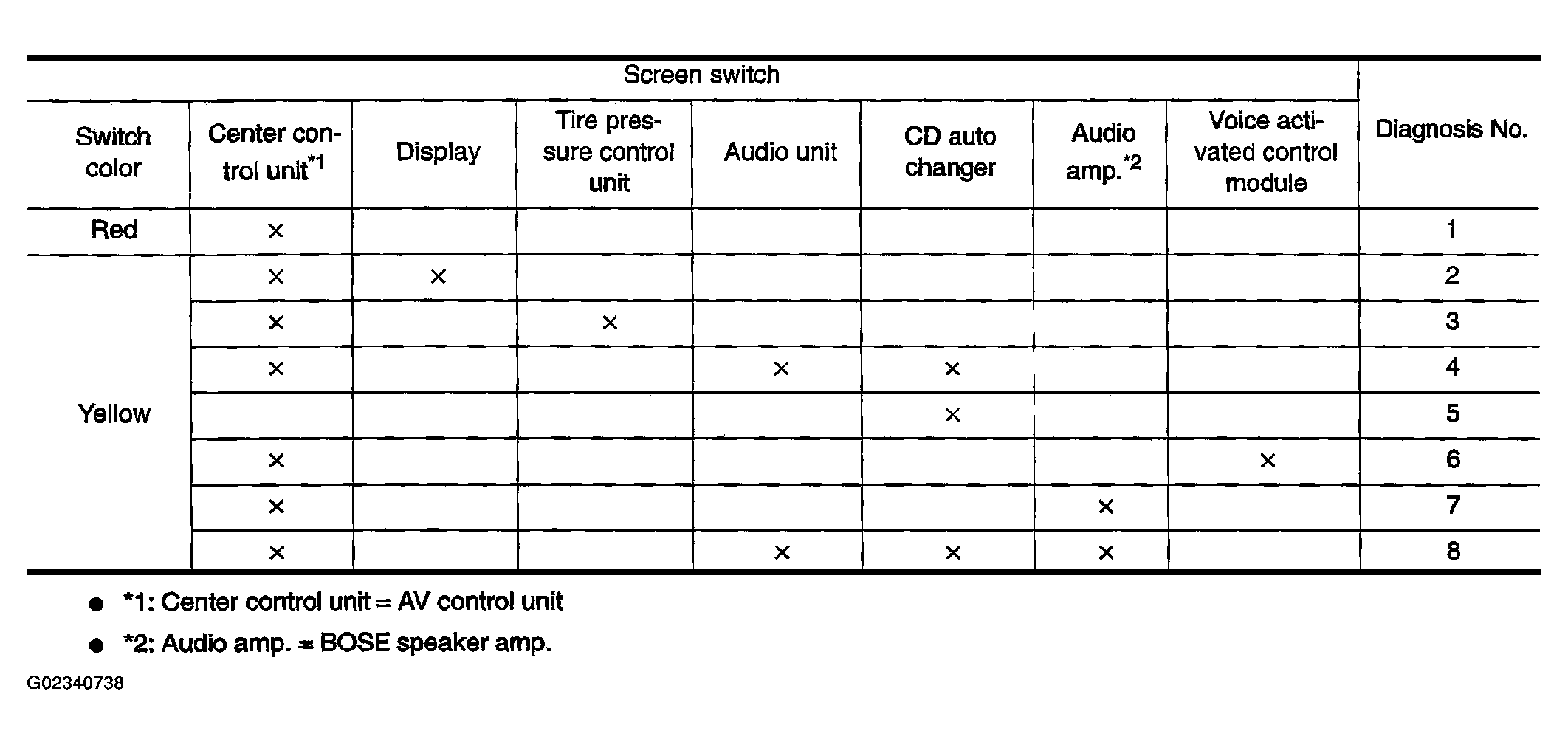

- Select an applicable diagnosis No. in the diagnosis result quick reference table.
- Find estimated malfunctioning system in the diagnosis No. table and perform check by referring to WIRING DIAGRAM - COMM- .
- Turn the ignition switch to OFF and perform self-diagnosis again.
