Wiring Diagram - INF/D -: Schematic

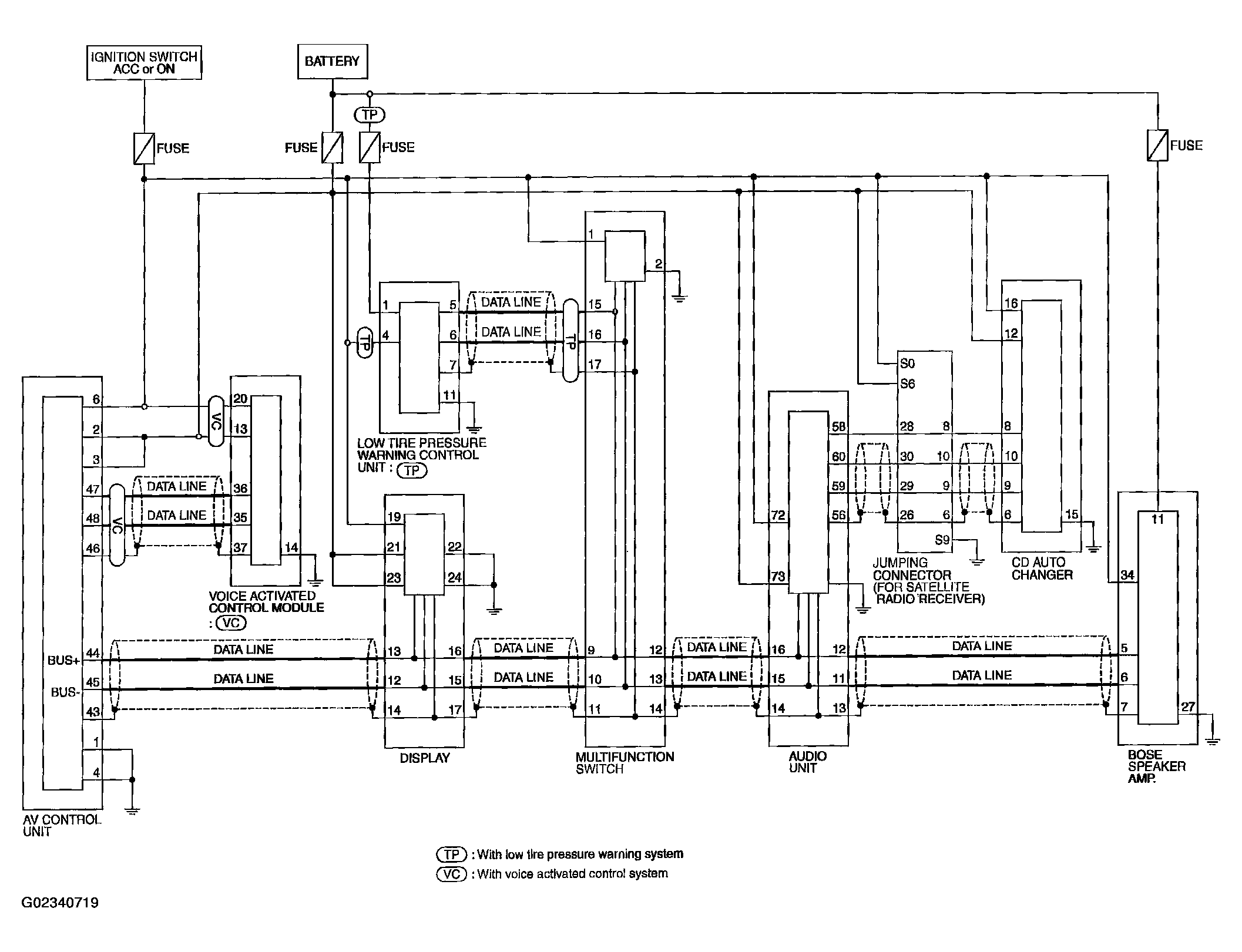

Fig 1: Vehicle Information And Integrated Switch System Schematic (Without Navigation System)

G02340719

Courtesy of NISSAN MOTOR CO., U.S.A.
