Display Diagnosis

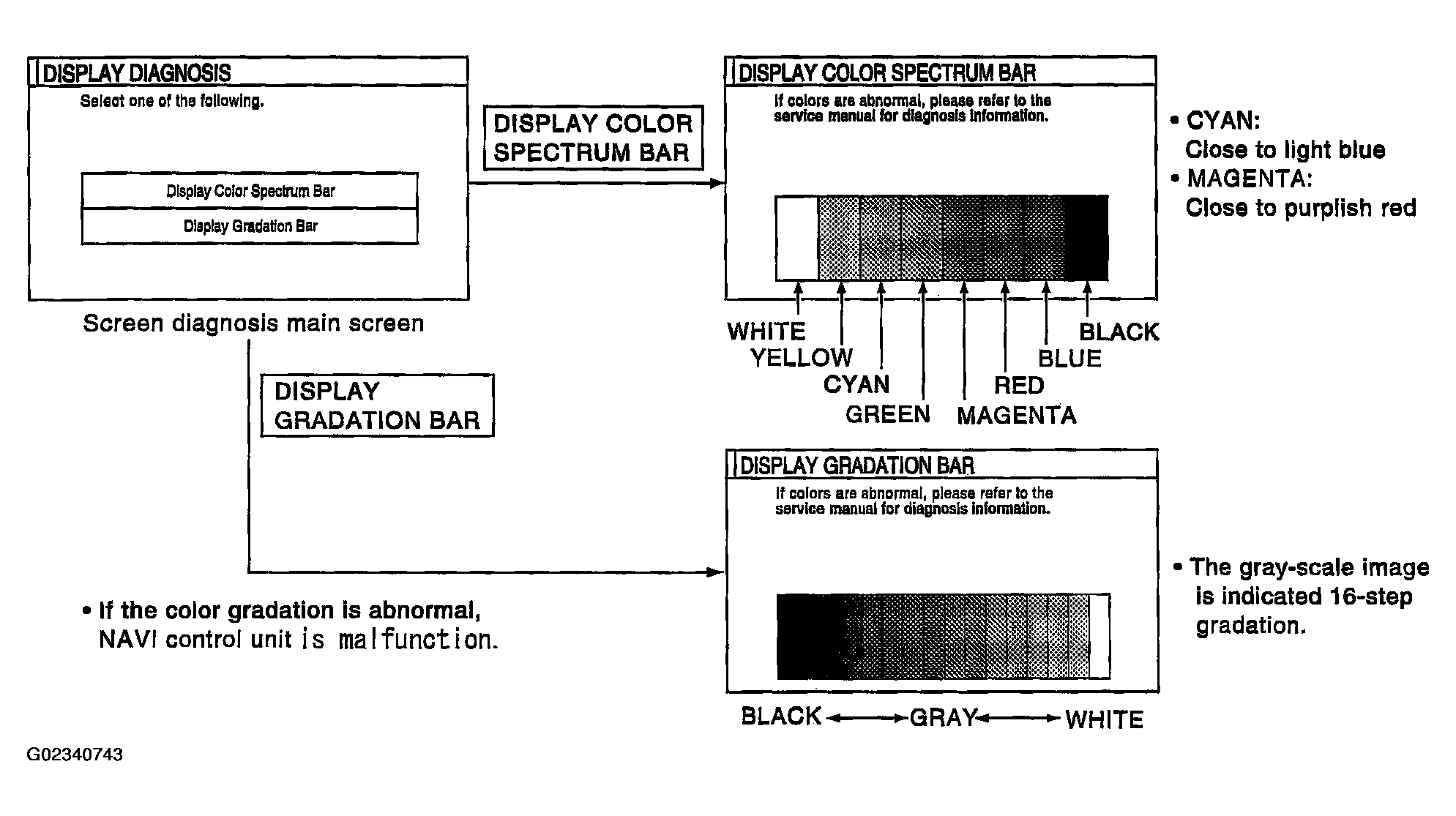

Fig 1: Display Diagnosis Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: When DISPLAY COLOR SPECTRUM BAR screen is completed after "PREV" switch is pressed, the screen color changes once. This is not abnormal.

When RGB signal error occurred in the RGB system, tone of the color bar will change as follows:
1. R (red) signal error: Screen looks bluish
2. G (green) signal error: Screen looks yellowish
3. B (blue) signal error: Screen looks reddish
When the color of the screen looks unusual, refer to COLOR OF RGB IMAGE IS NOT PROPER .
