2 Check Accelerator Pedal Position Sensor

Check accelerator pedal position sensor. Refer to "DTC P1705 ACCELERATOR PEDAL POSITION SENSOR (THROTTLE POSITION SENSOR) ".

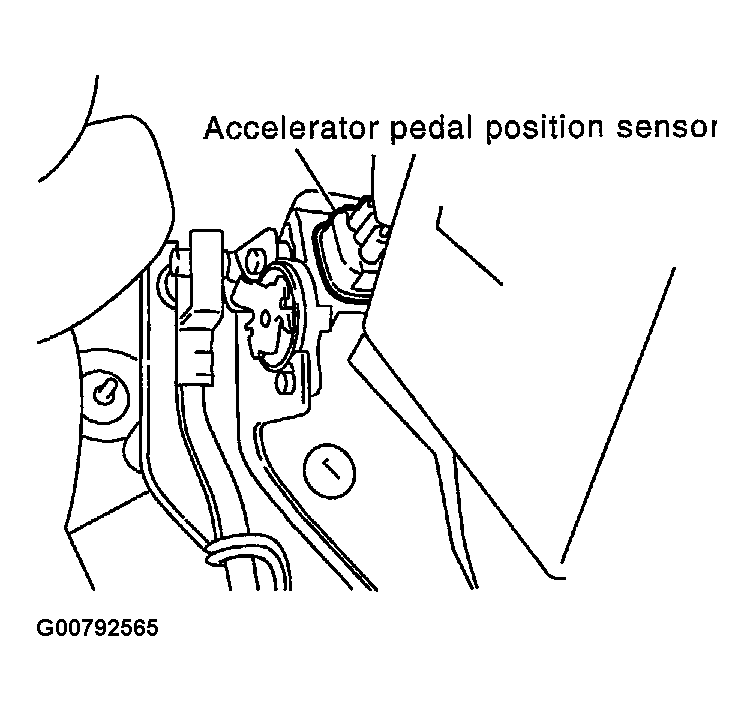

Fig 1: Identifying Accelerator Pedal Position Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 3.

NG: Repair or replace accelerator pedal position sensor.
