Service Data And Specifications (SDS): Accumulator: O-Ring

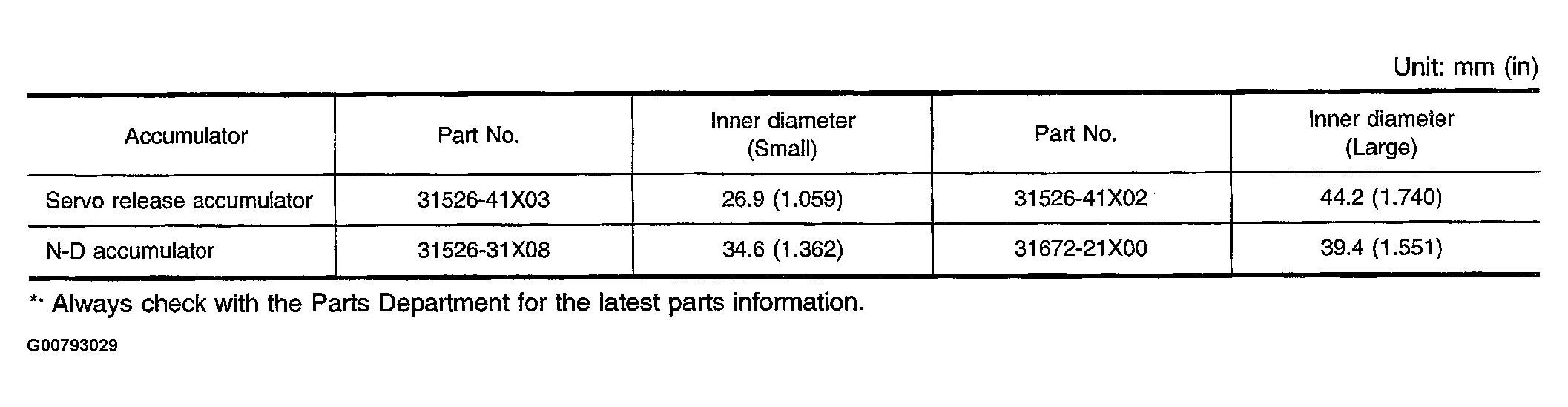

Fig 1: Specifications - Accumulator - O-Ring

G00793029

Courtesy of NISSAN MOTOR CO., U.S.A.
