Differential Side Oil Seal Replacement: Notes

Remove drive shaft assembly. Refer to .
Remove oil seal.

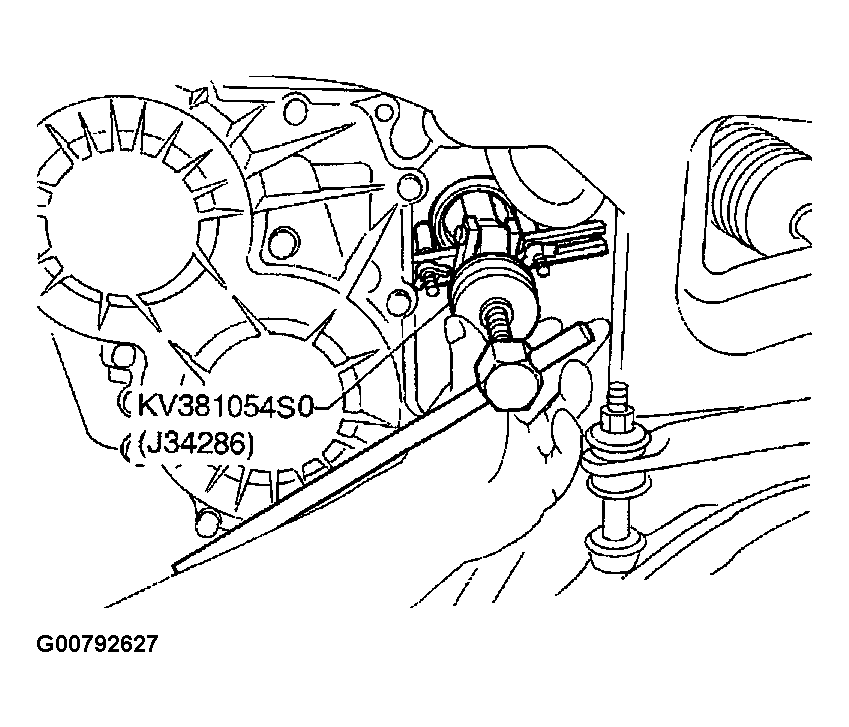

Fig 1: Removing Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil seal.
- Apply ATF before installing.

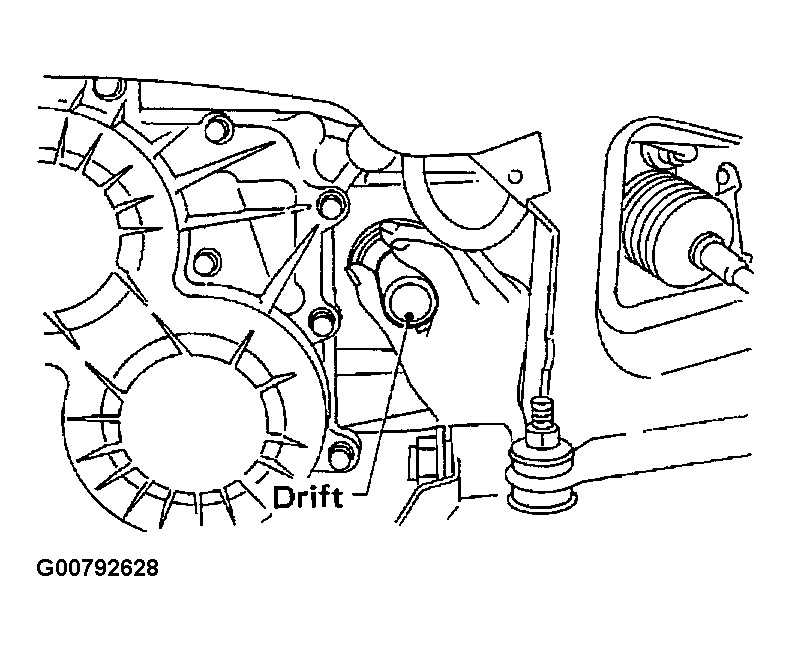

  Fig 2: Identifying Drift For Installing Oil Seal
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Install oil seals so dimension A is within specification
  1. A: -0.5 mm (-0.02 in) to 0.5 mm (0.02 in)
Reinstall any part removed.

Fig 3: Locating Oil Seal Clearance
Courtesy of NISSAN MOTOR CO., U.S.A.
