Data Monitor Mode (A/T)

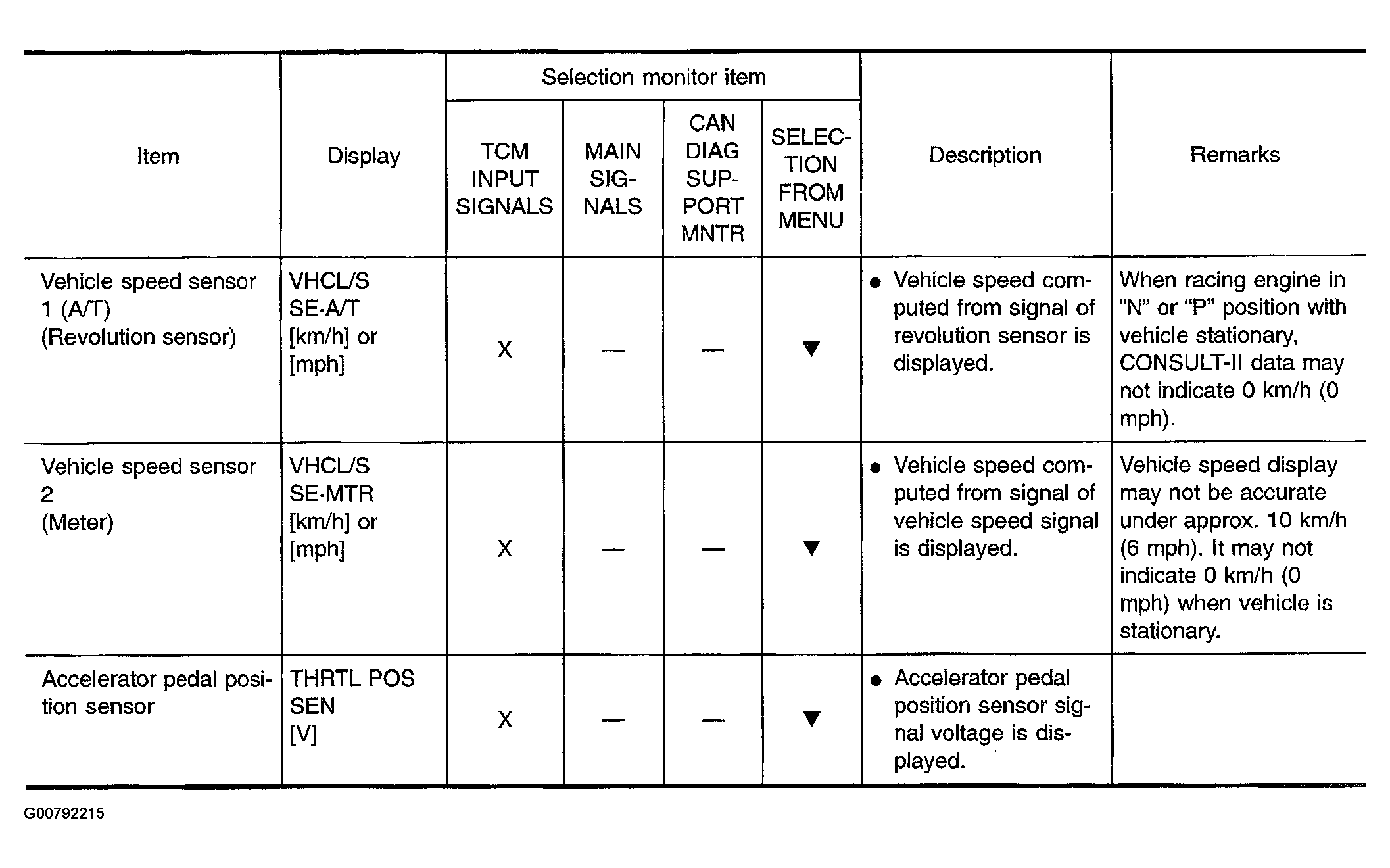

Fig 1: Data Monitor Mode (A/T) Chart (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

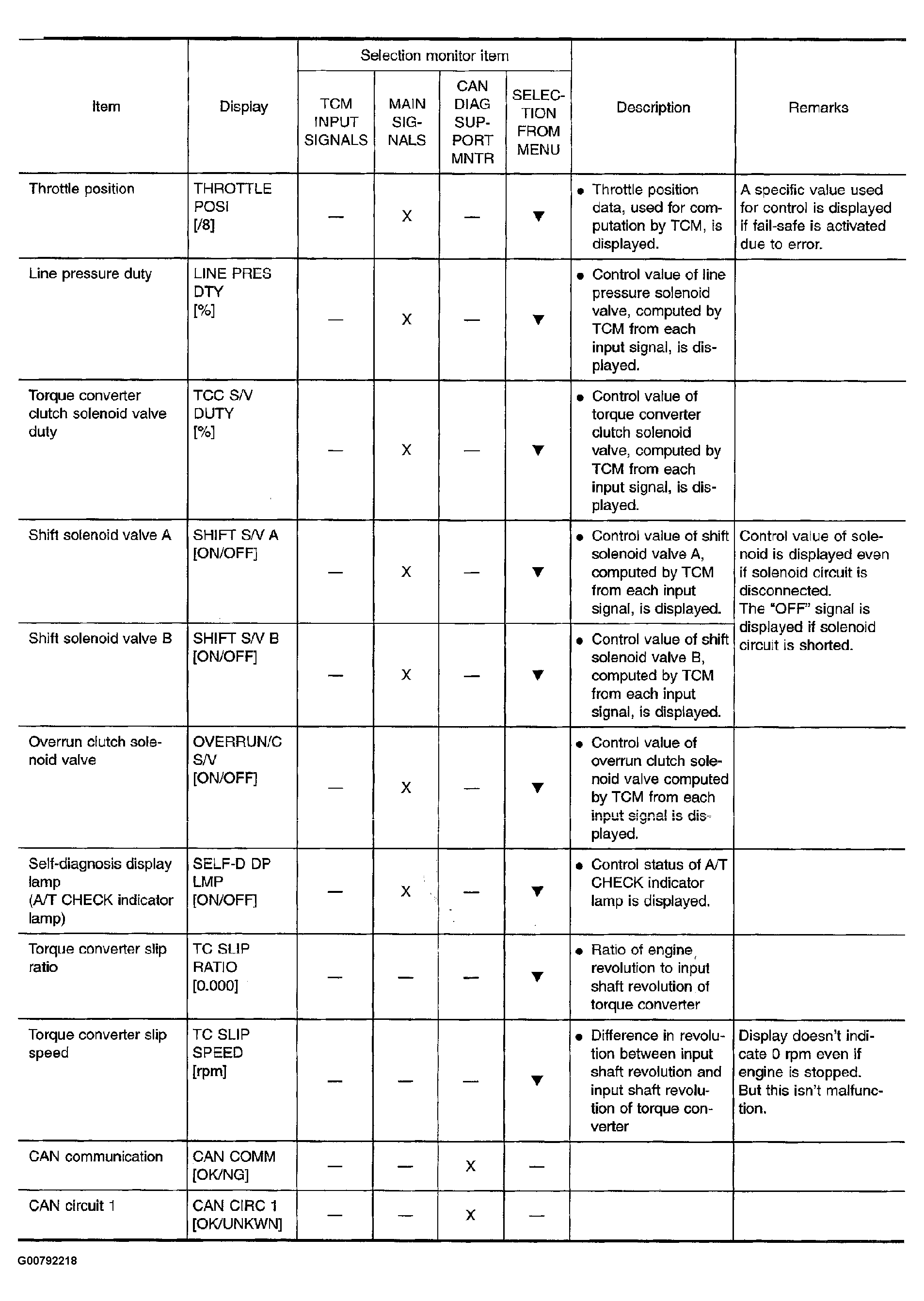

Fig 2: Data Monitor Mode (A/T) Chart (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

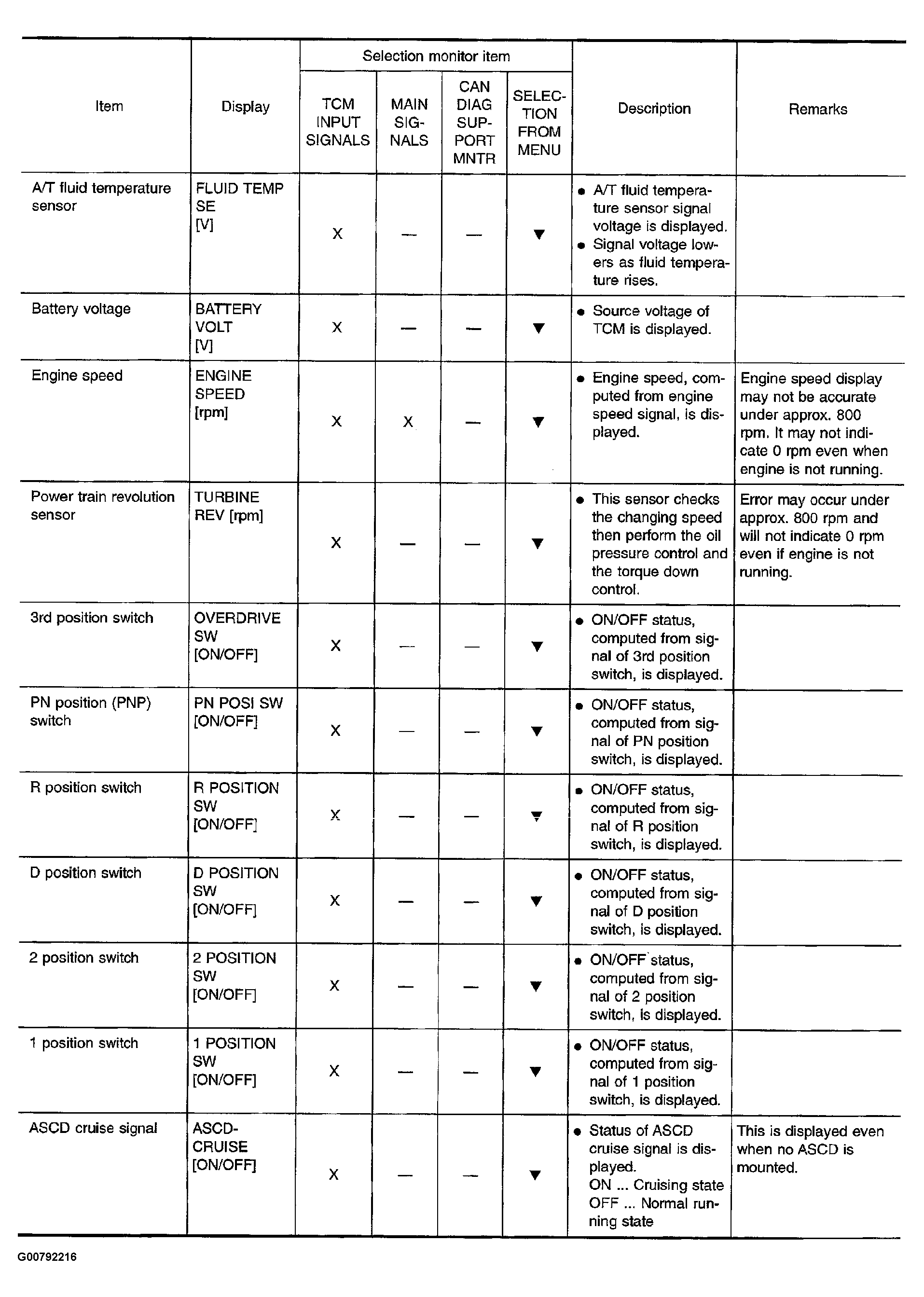

Fig 3: Data Monitor Mode (A/T) Chart (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

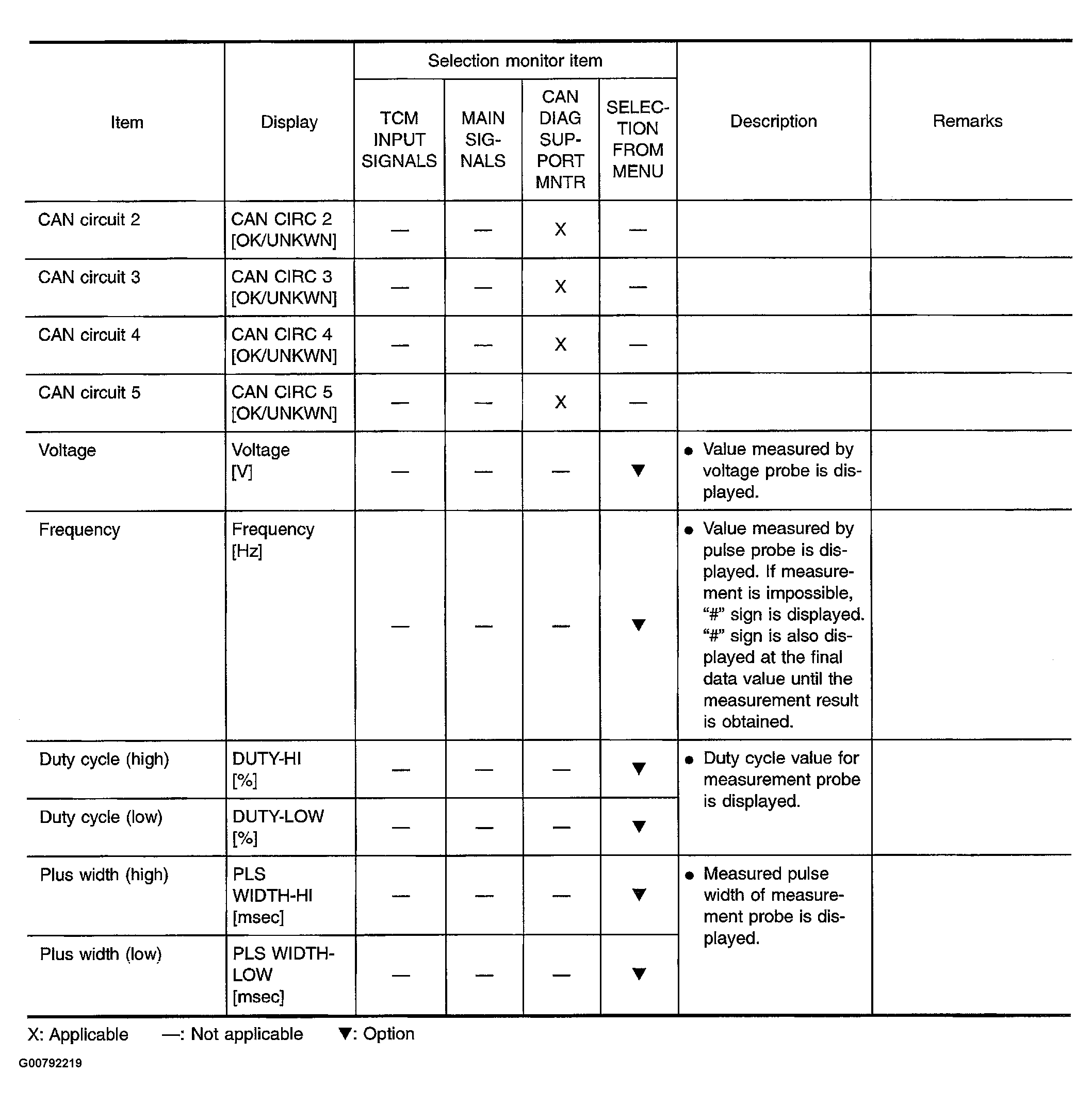

Fig 4: Data Monitor Mode (A/T) Chart (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

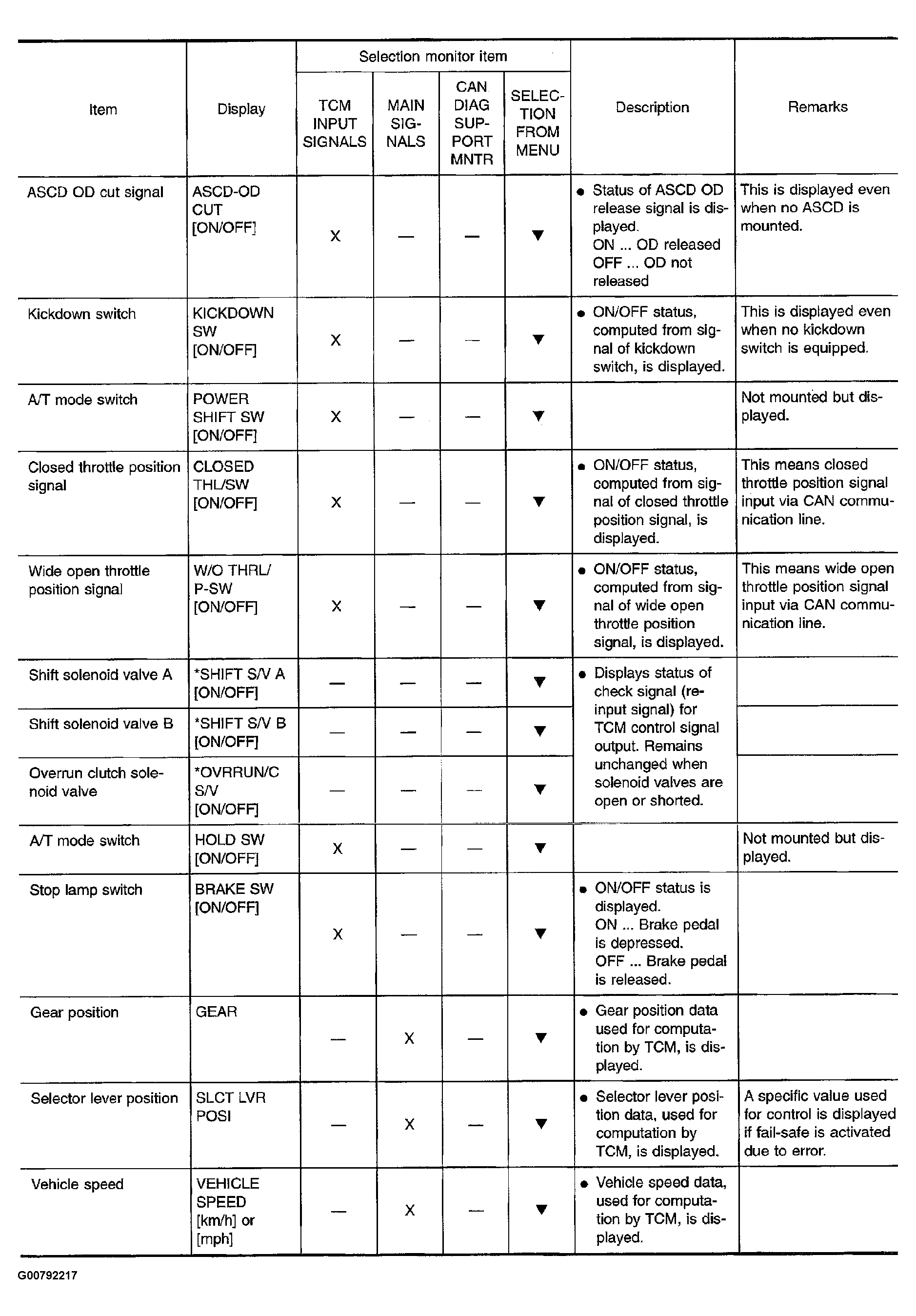

Fig 5: Data Monitor Mode (A/T) Chart (5 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
