Clutch Disc

WARNING: This page is about a different car, the 2003 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

If the contact surface shows signs of damage due to excessive heat, replace clutch disc and pulley.

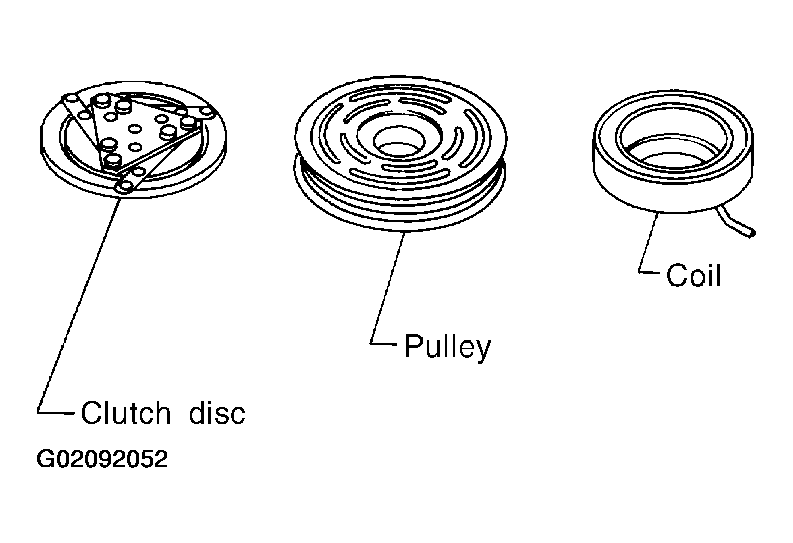

Fig 1: Identifying Coil, Pulley And Clutch Disc
G02092052Courtesy of NISSAN MOTOR CO., U.S.A.
