Wiring Diagram - TCS

WARNING: This page is about a different car, the 2003 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For wiring diagram references to EL-POWER , see POWER DISTRIBUTION and GROUND DISTRIBUTION . For complete System Wiring Diagrams, see SYSTEM WIRING DIAGRAMS .

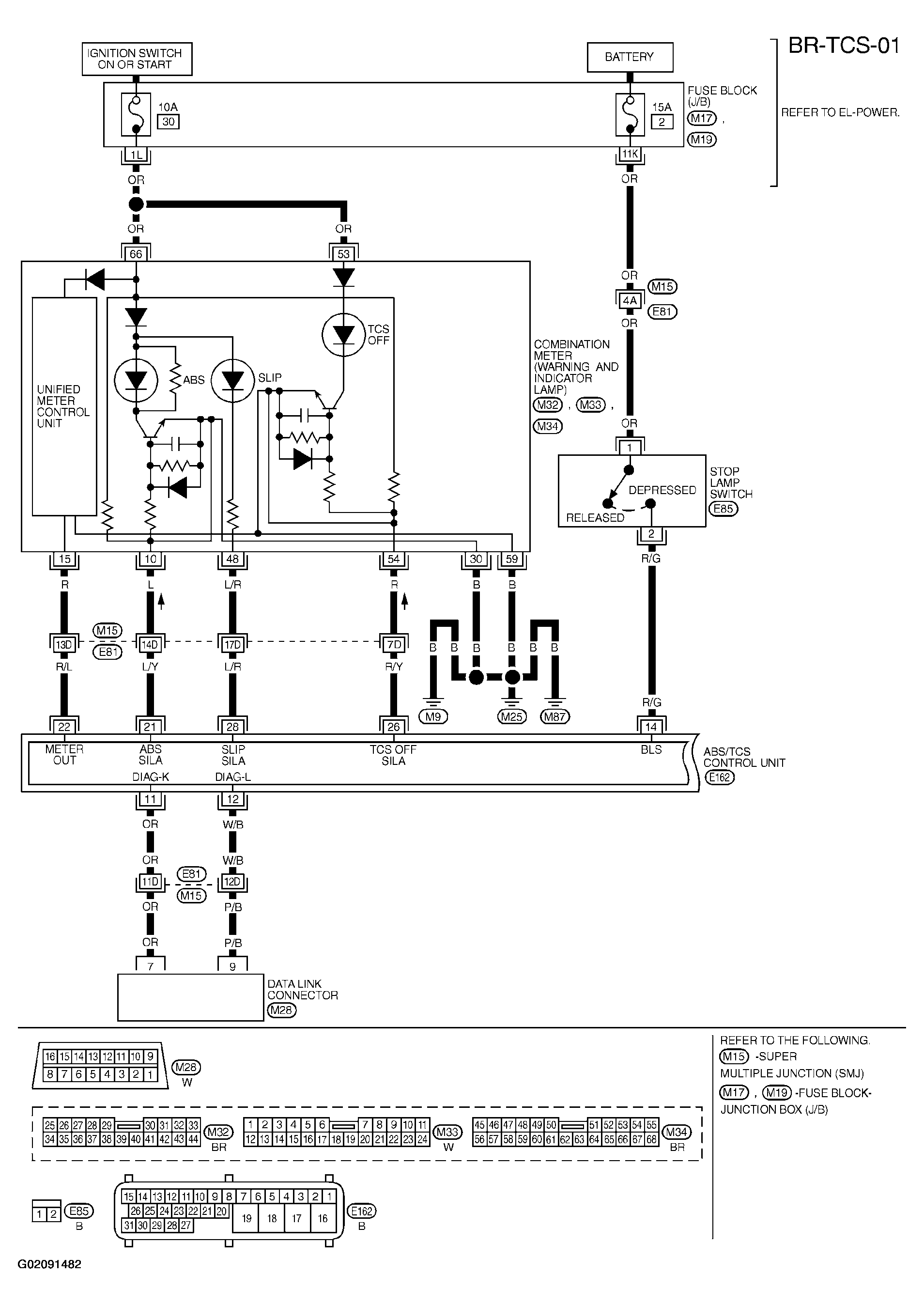

Fig 1: Identifying TCS Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

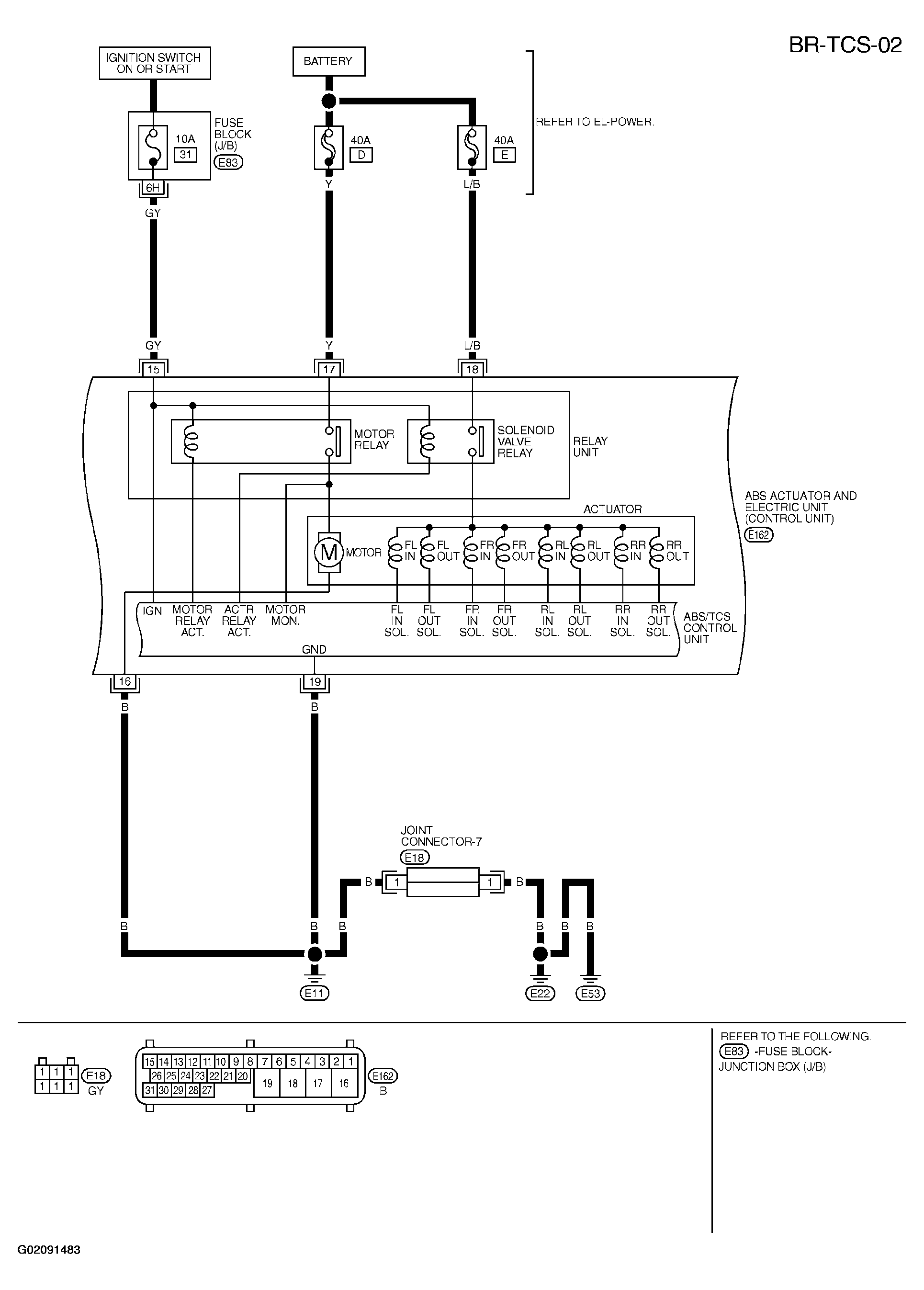

Fig 2: Identifying TCS Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

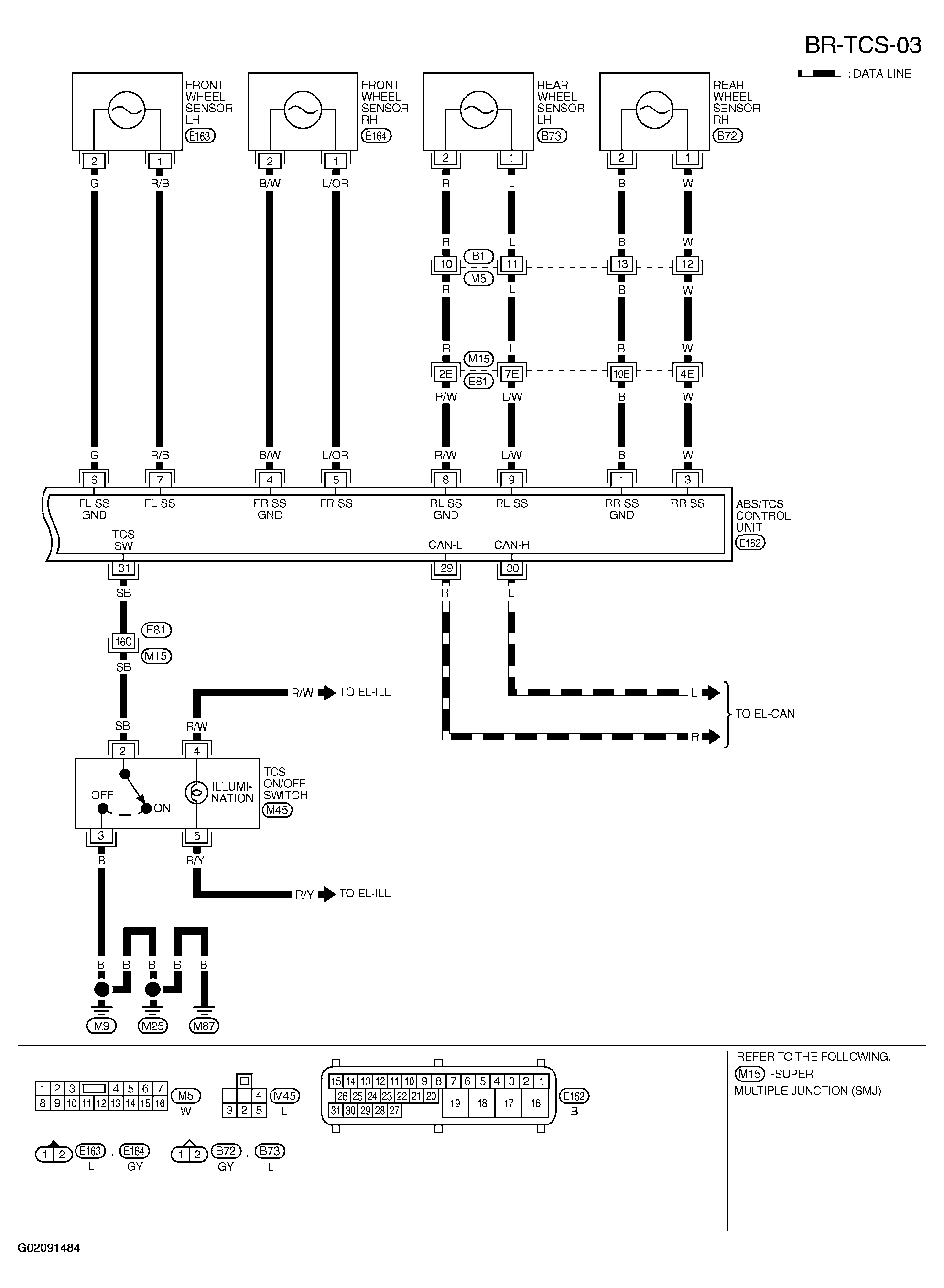

Fig 3: Identifying TCS Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

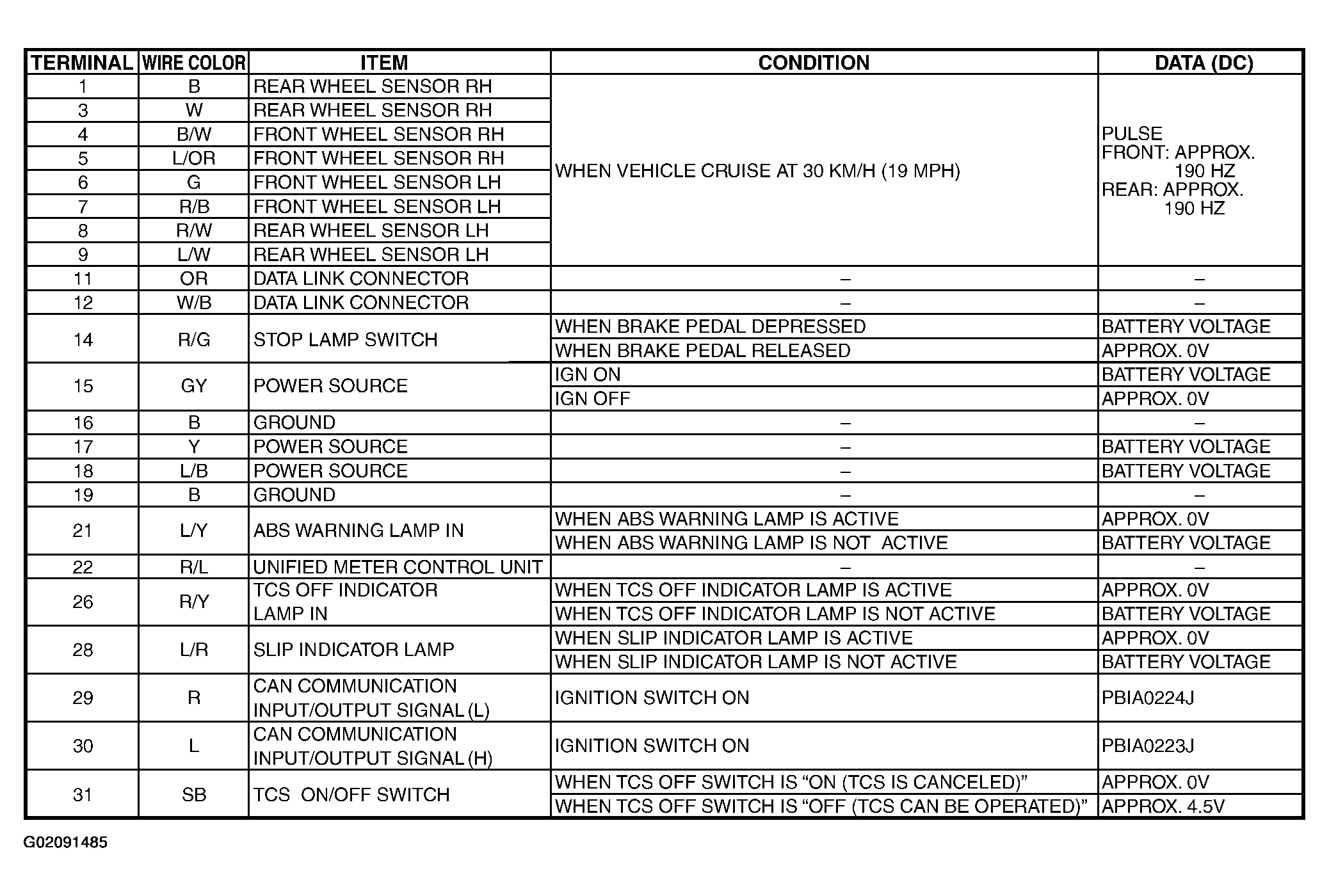

Fig 4: Identifying TCS Terminal Reference Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
