Relationship Between MIL, DTC, 1st Trip DTC And Driving Patterns For Misfire < Exhaust Quality Deterioration >, Fuel Injection System

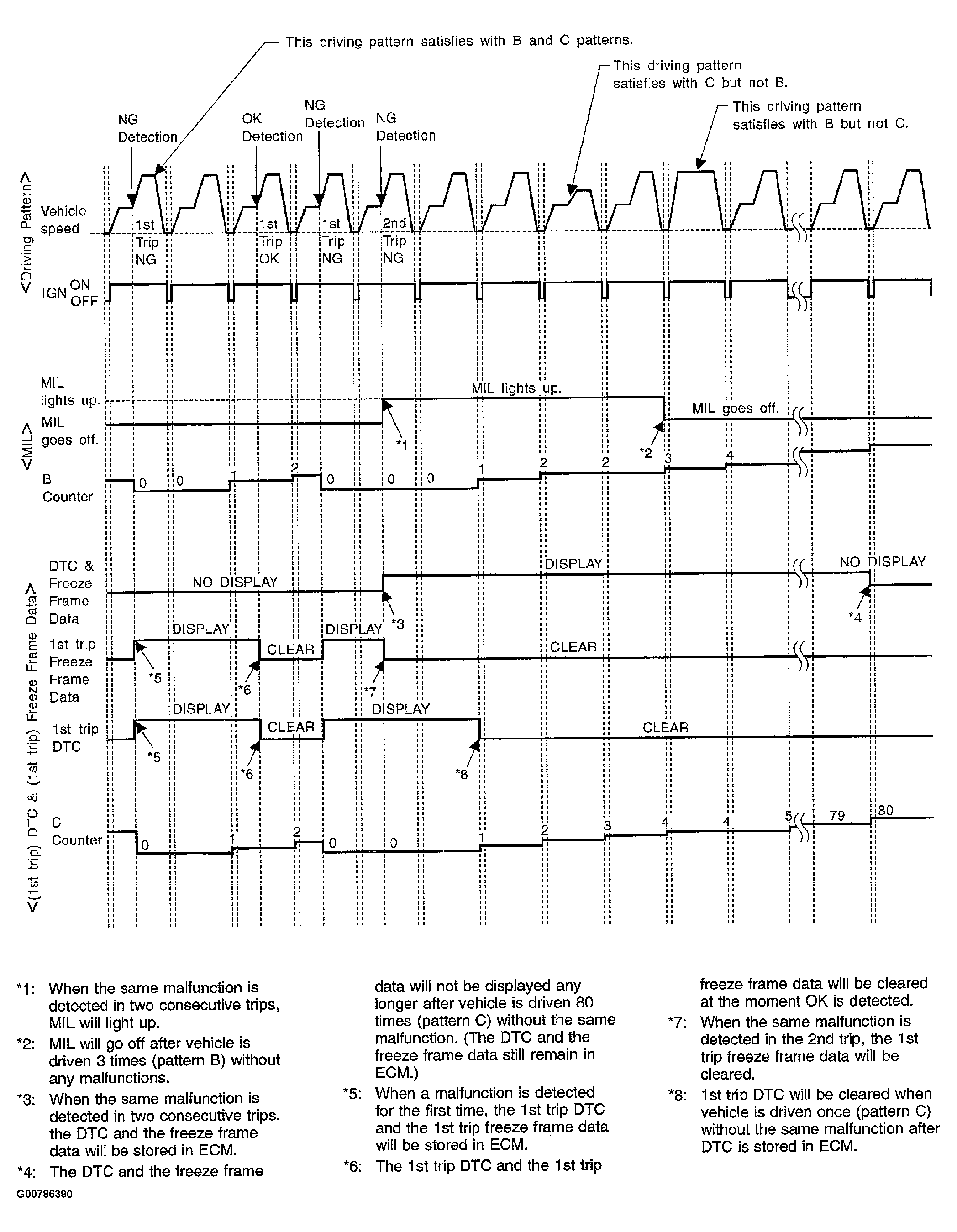

Fig 1: MIL, DTC, 1st TRIP DTC AND Driving Patterns Relationship Graph (MISFIRE)
G00786390Courtesy of NISSAN MOTOR CO., U.S.A.
