Relationship Between MIL, DTC, 1st Trip DTC And Driving Patterns For Misfire < Exhaust Quality Deterioration >, Fuel Injection System

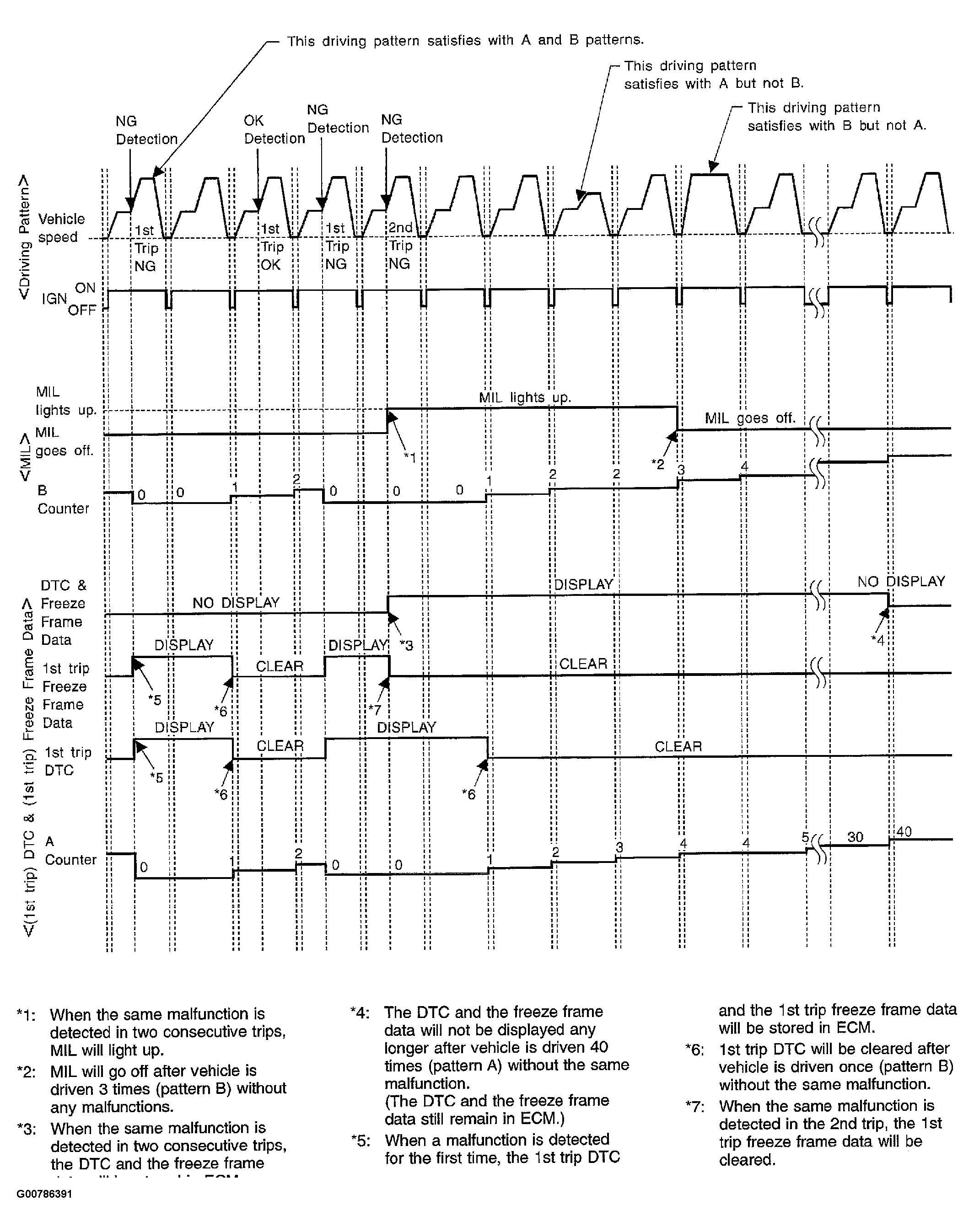

Fig 1: MIL, DTC, 1st TRIP DTC And Driving Patterns Relationship Graph (FOR MISFIRE)
G00786391Courtesy of NISSAN MOTOR CO., U.S.A.
