Generic Scan Tool (GST): Description

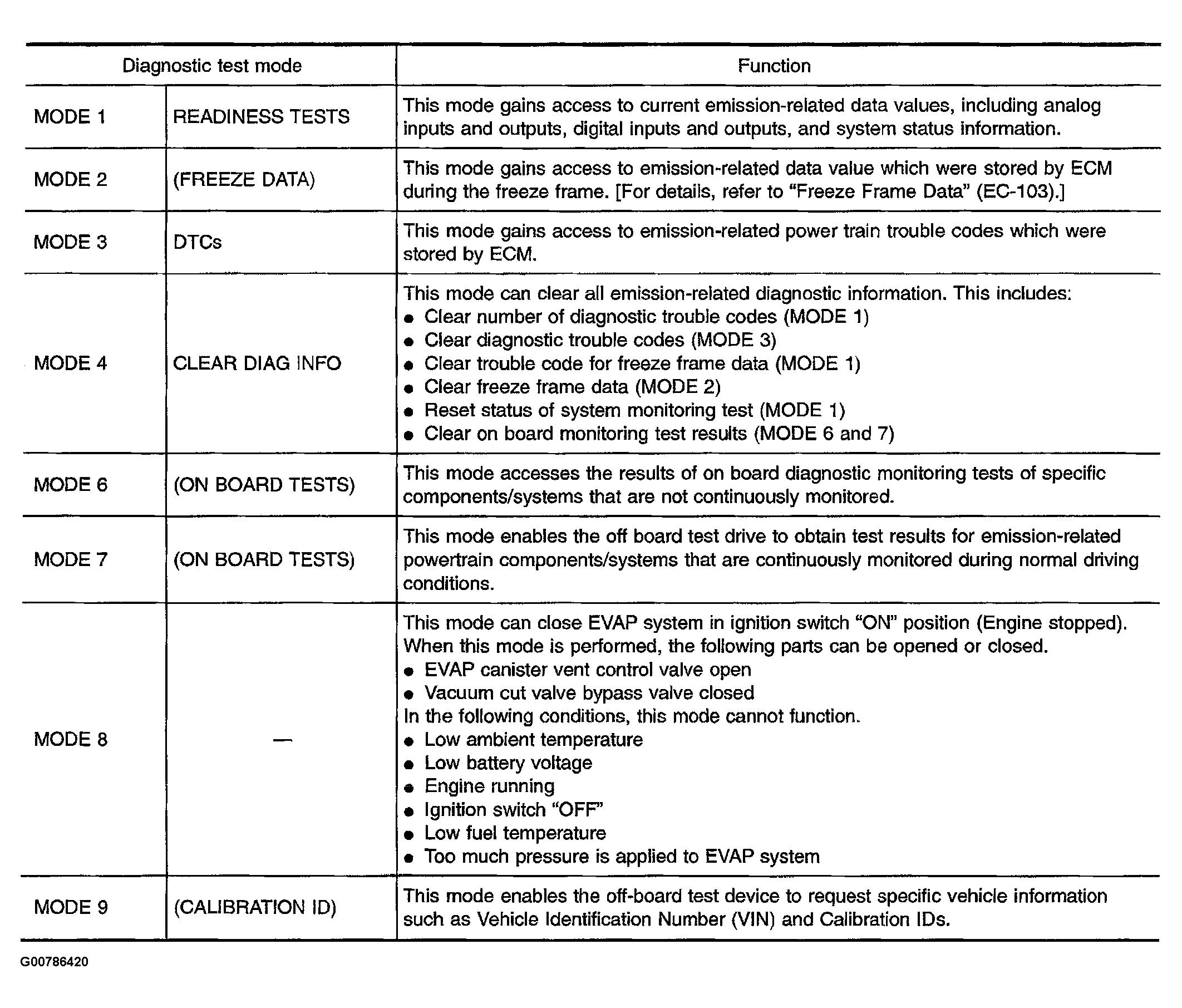

Generic Scan Tool (OBDII scan tool) complying with SAE J1978 has 8 different functions explained in Figure .

ISO9141 is used as the protocol.

The name GST or Generic Scan Tool is used in this article.
