Throttle Control Motor Relay

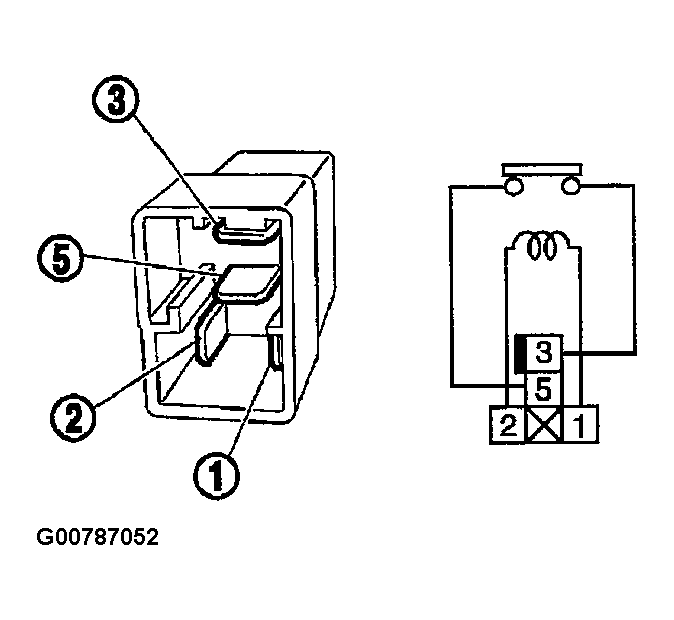

  1. Apply 12V direct current between relay terminals 1 and 2. See Figure .

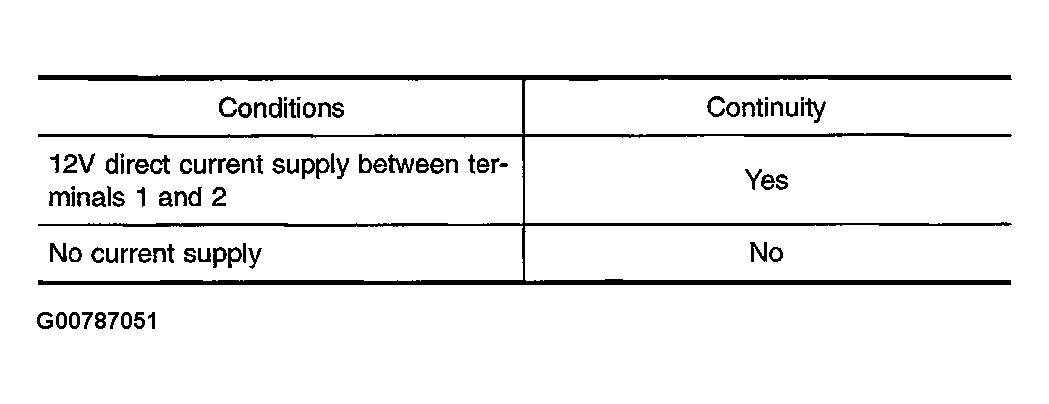

  2. Check continuity between relay terminals 3 and 5. See Figure .
  3. If NG, replace throttle control motor relay.
