DTC P0182 & DTC P0183: FTT Sensor: Wiring Diagram

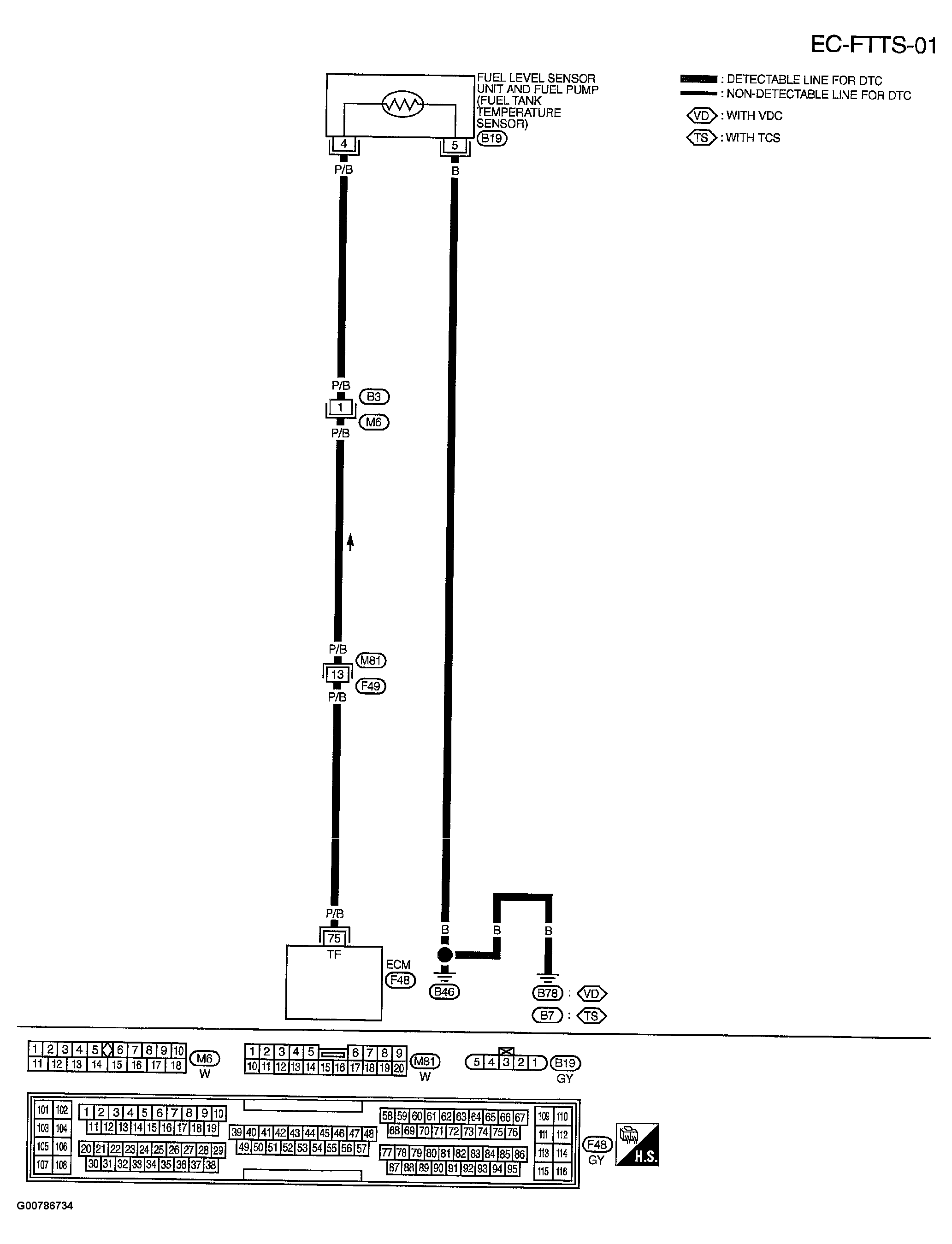

Fig 1: Displaying Wiring Diagram (EC-FTTS-01)

G00786734

Courtesy of NISSAN MOTOR CO., U.S.A.
