DTC P0172 & DTC P0175: Fuel Infection System Function
>>
Wiring Diagram
>>
Bank 2
Bank 2

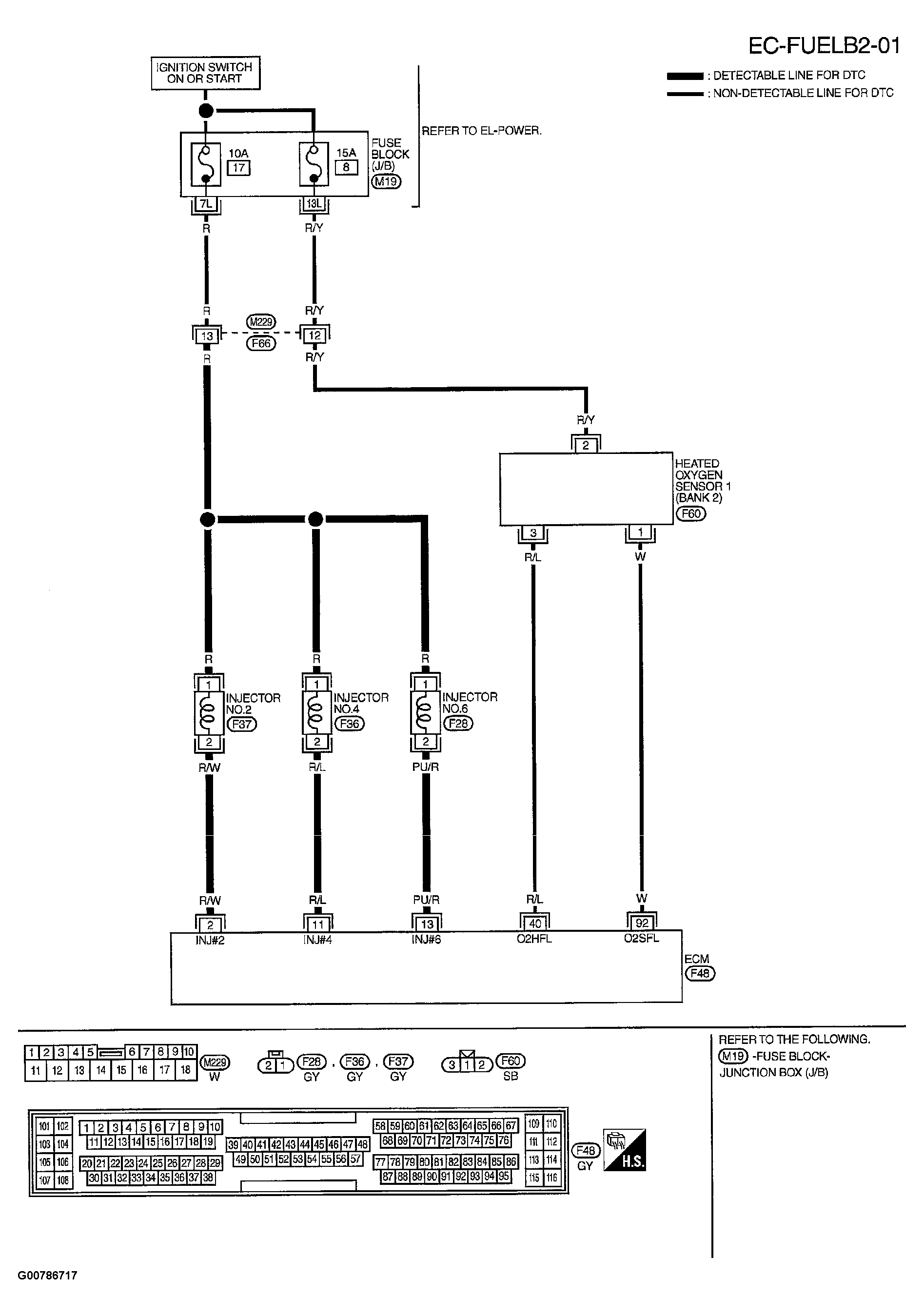

Fig 1: Displaying Wiring Diagram (EC-FUELB2-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
