DTC P0172 & DTC P0175: Fuel Infection System Function
>>
Wiring Diagram
>>
Bank 1
Bank 1

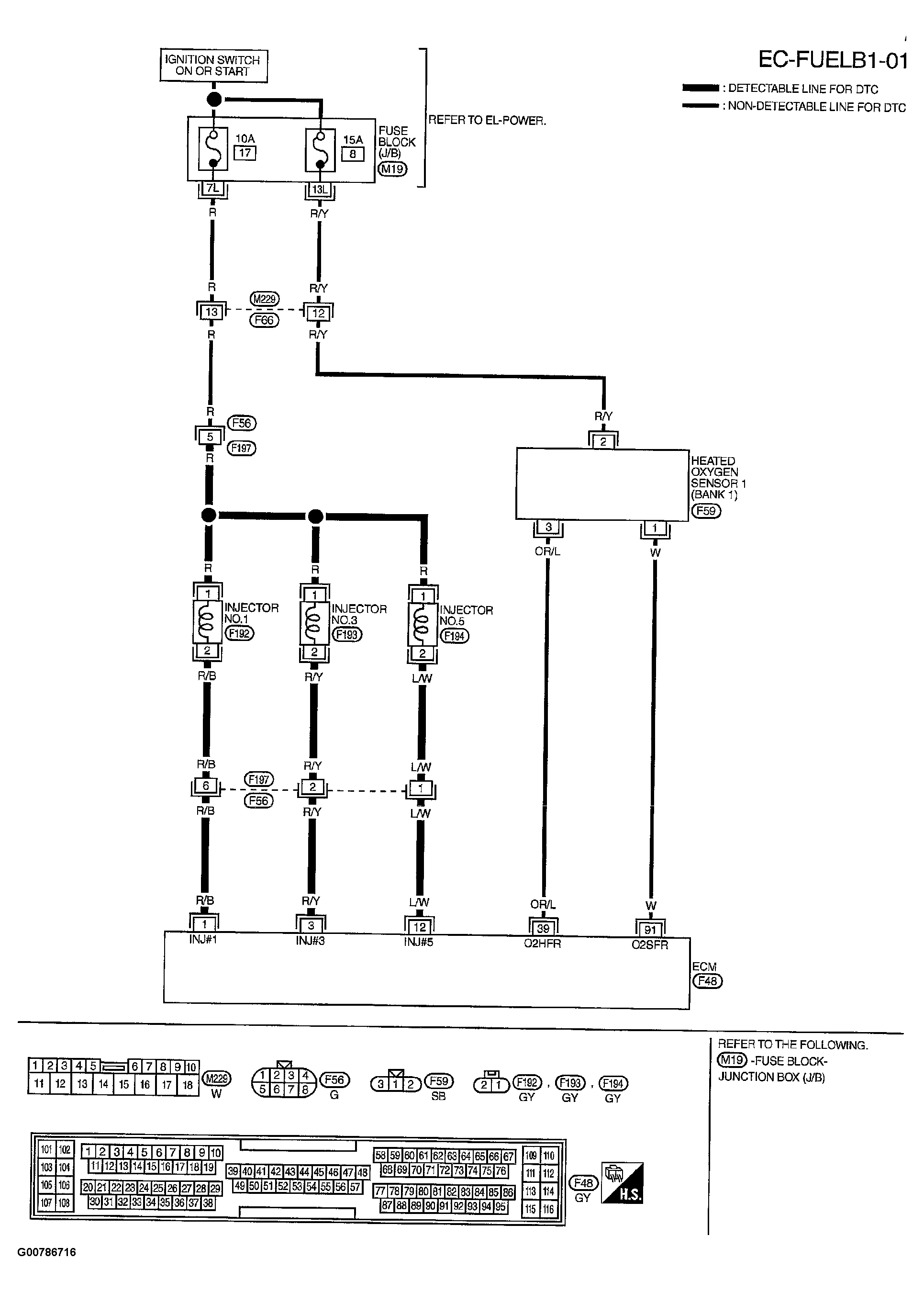

Fig 1: Displaying Wiring Diagram (EC-FUELB1-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
