Removal and Installation: Notes

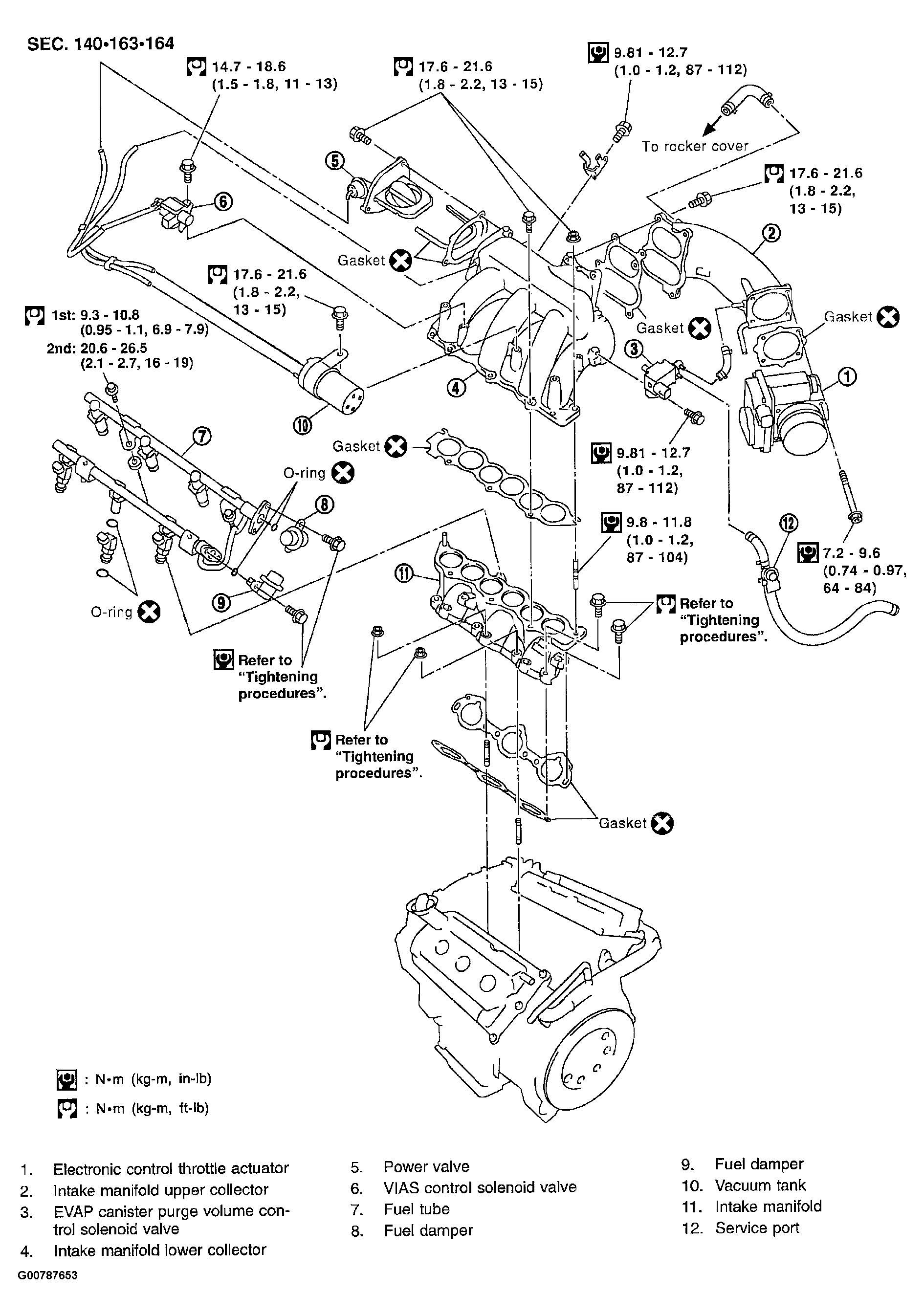

Fig 1: Removing Intake Manifold Upper
Courtesy of NISSAN MOTOR CO., U.S.A.

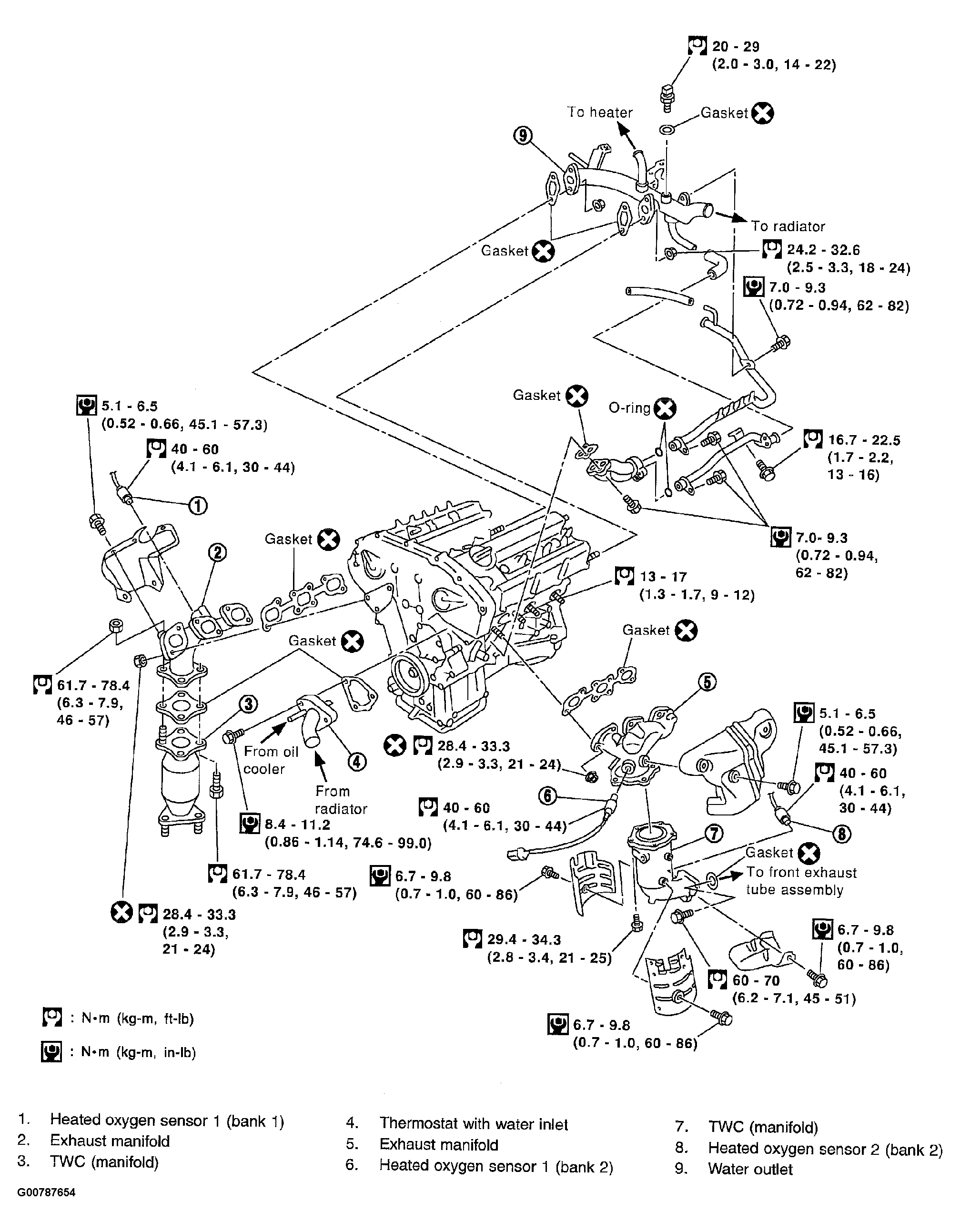

Fig 2: Removing Engine Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
