LEMON Manuals
: Even more car manuals for everyone
Home
>>
Infiniti
>>
2004
>>
I35
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Generators & Regulators
>>
On-Vehicle Testing
>>
Diagnostic Procedure 1
Diagnostic Procedure 1
For diagnostic procedure 1, see
Fig 1
.

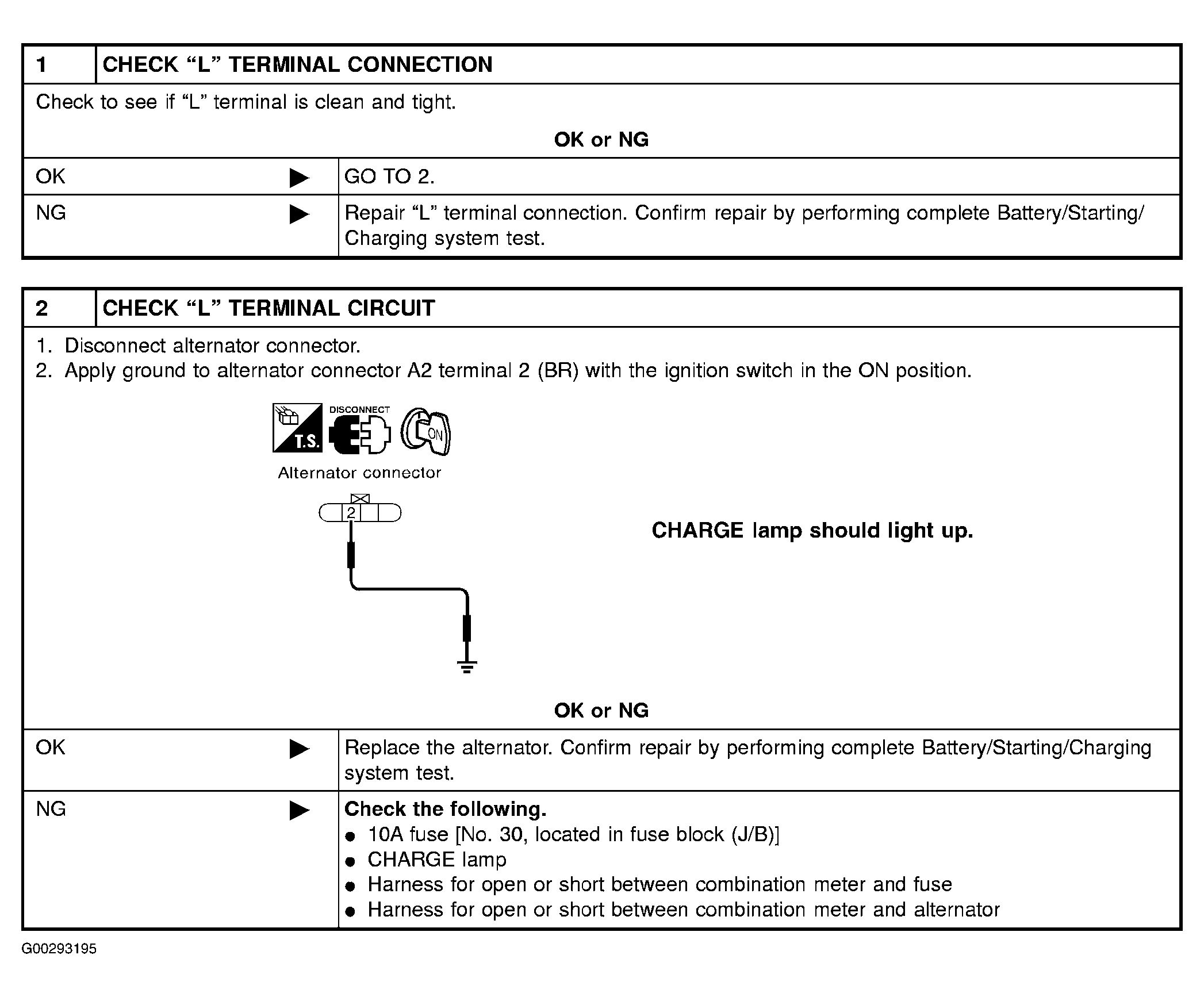

Fig 1: Diagnostic Procedure 1
Courtesy of NISSAN MOTOR CO., U.S.A.
