Trouble Diagnosis - Introduction: Schematic

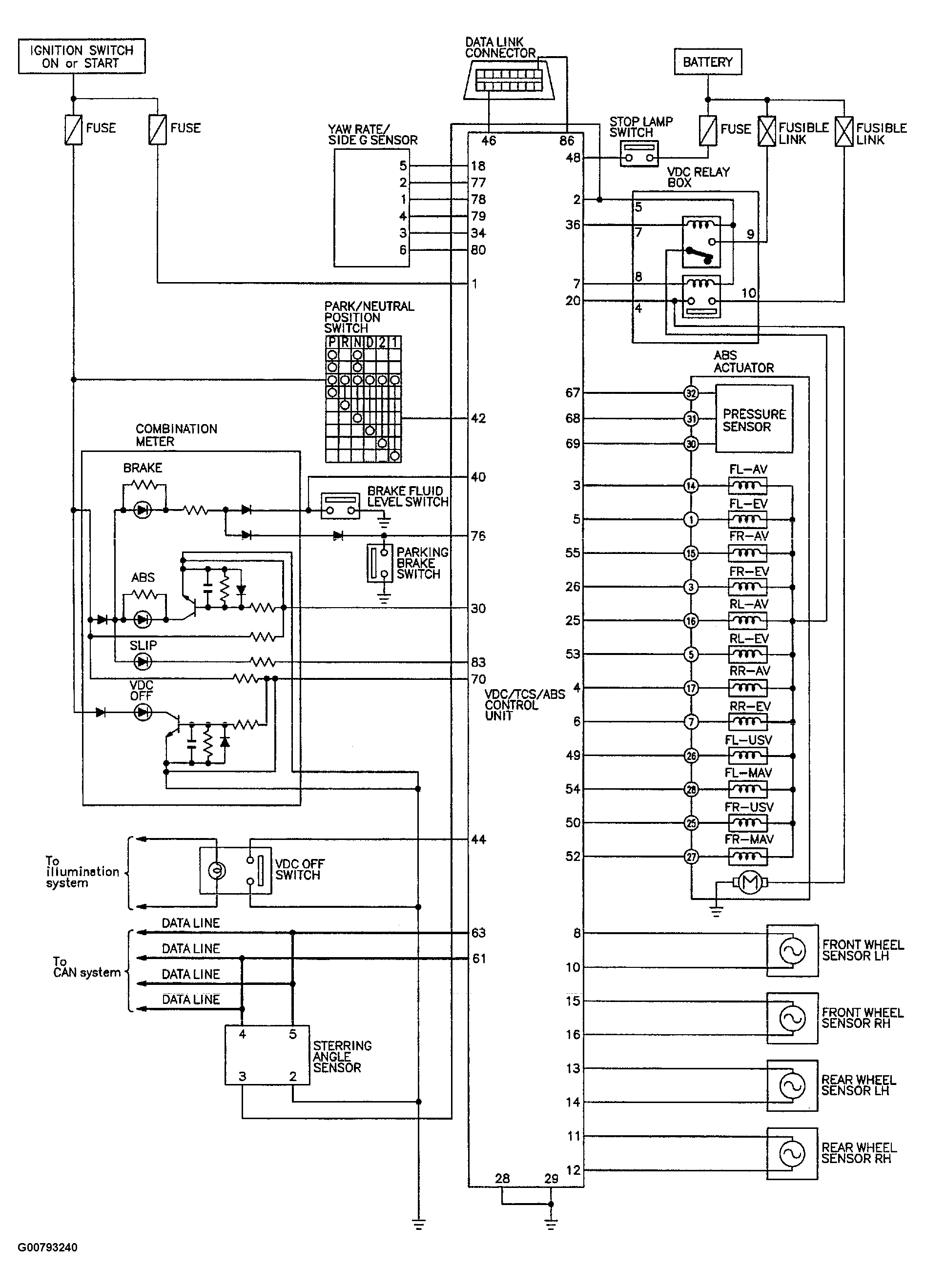

Fig 1: VDC Schematic Diagram

G00793240

Courtesy of NISSAN MOTOR CO., U.S.A.
