Standards With CONSULT-II

CAUTION: The displayed item is the data calculated by the control unit, so it may indicate a normal value even if an output circuit (harness) is open or shorted.

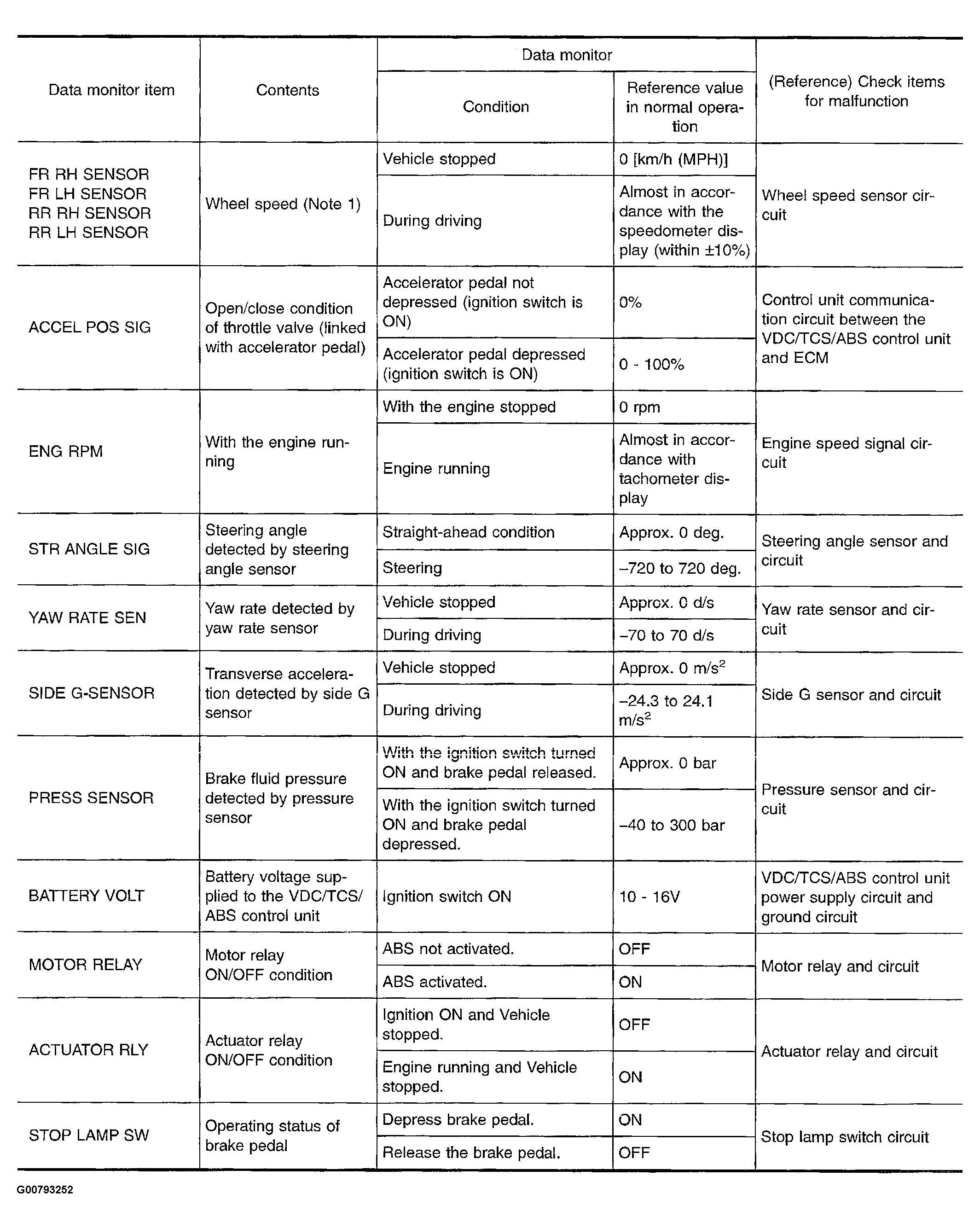

Fig 1: Standards With CONSULT-II (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

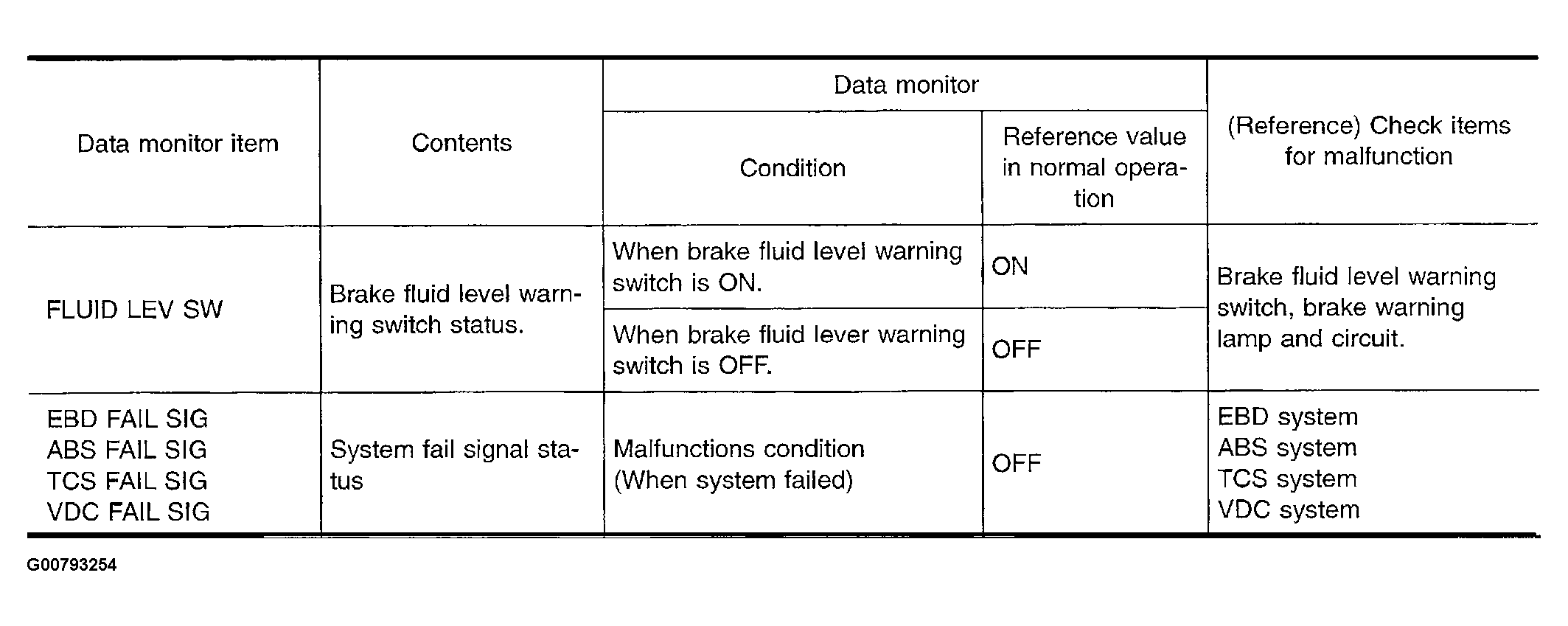

Fig 2: Standards With CONSULT-II (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

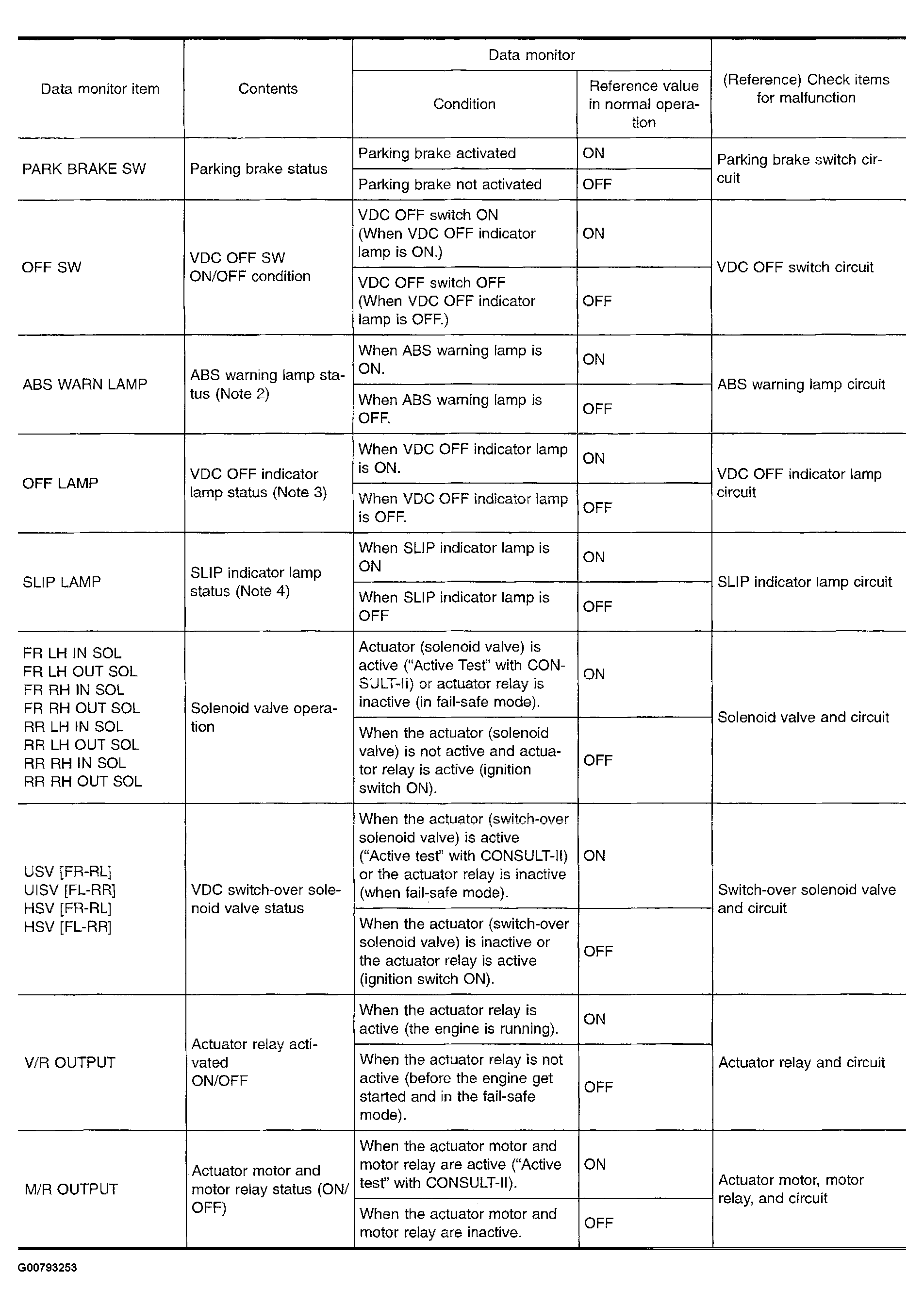

Fig 3: Standards With CONSULT-II (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
