Adjustment Of Neutral Position Of Steering Angle Sensor

After replacing the VDC/TCS/ABS control unit, steering angle sensor, steering components, suspension components, or after adjusting the wheel alignment, make sure to adjust the neutral position of the steering angle sensor before running the vehicle.

CAUTION: To adjust the neutral position of the steering angle sensor, make sure to use CONSULT-II. (Adjustment cannot be done other than CONSULT-II.)

Stop the vehicle with the front wheels in the straight-ahead position.
Connect CONSULT-II to data link connector on the vehicle, and turn the ignition switch to ON position (engine not running).

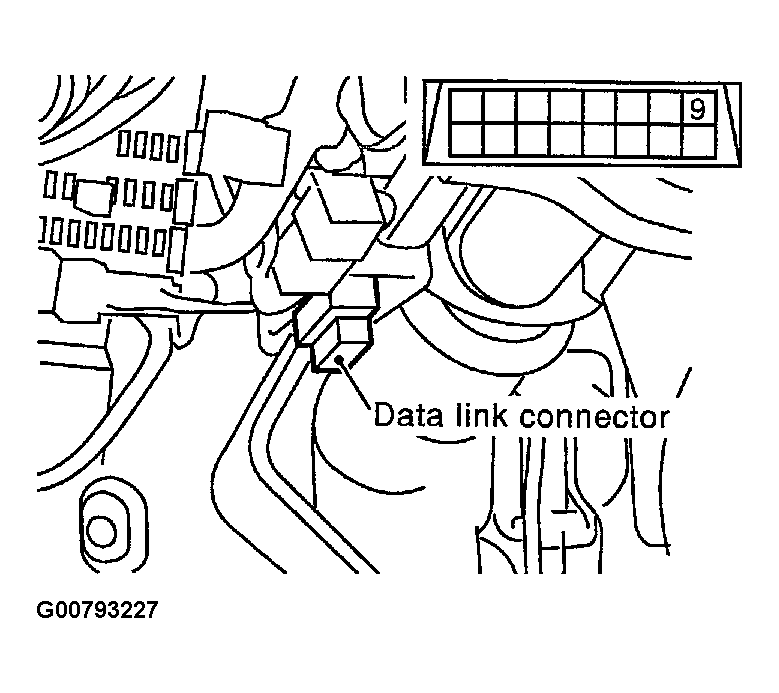

Fig 1: Connecting CONSULT-II To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START", "ABS", "WORK SUPPORT" and "ST ANGLE SENSOR ADJUSTMENT" on the CONSULT-II screen in this order.

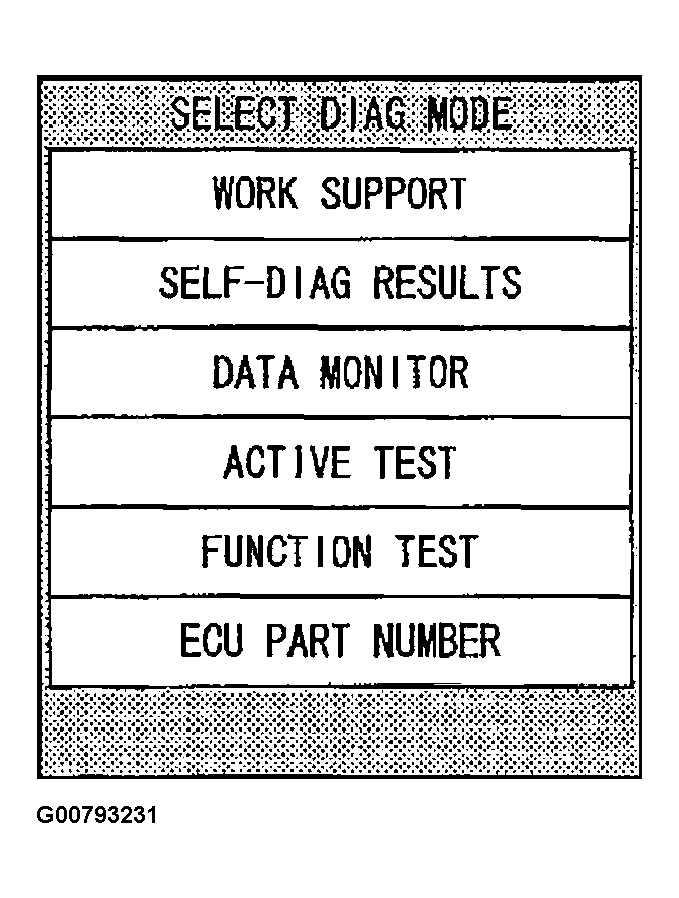

Fig 2: CONSULT-II "SELECT DIAG MODE" Display
Courtesy of NISSAN MOTOR CO., U.S.A.

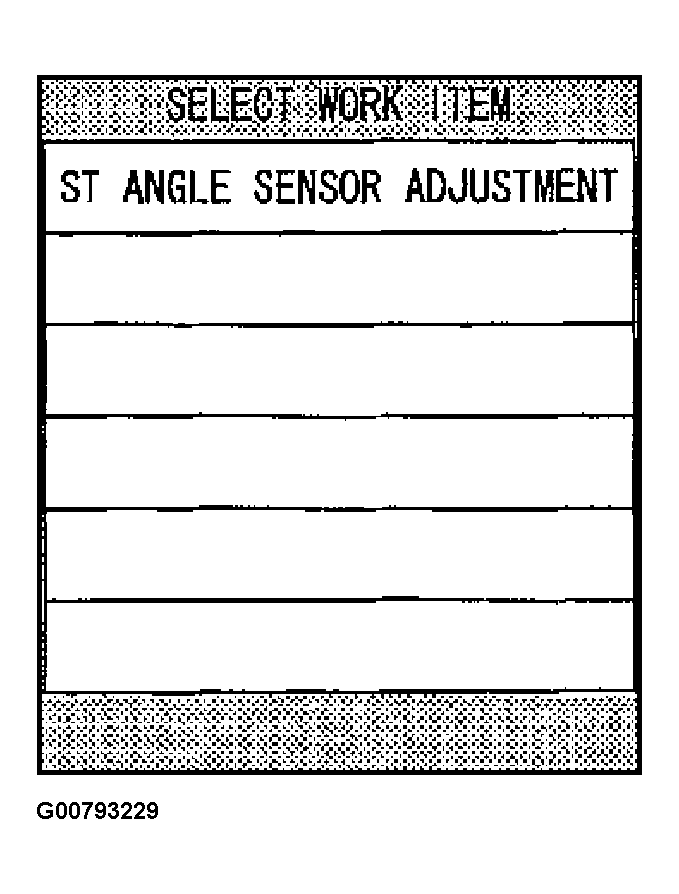

Fig 3: CONSULT-II "SELECT WORK ITEM" Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

Fig 4: CONSULT-II "ST ANGLE SENSOR ADJUSTMENT" Display
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not touch the steering wheel while adjusting the steering angle sensor.
After approximately 10 seconds, touch "END". (After approximately 60 seconds, it ends automatically.)
Turn the ignition switch OFF, then turn it ON again.
CAUTION: Make sure to carry out the above operation.
Run the vehicle with the front wheels in the straight-ahead position, then stop.
Select "DATA MONITOR", "ECU INPUT SIGNALS" on the CONSULT-II screen. Then check that the "ST ANGLE SIG" is within 0+/-2.5°. If the value is more than the specification, repeat steps 1 to 5.

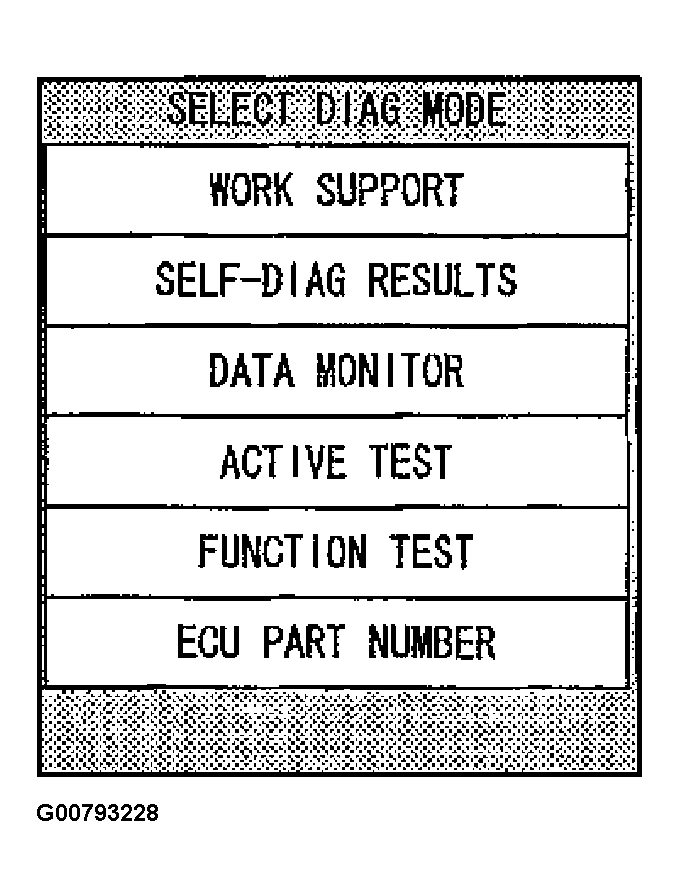

Fig 5: CONSULT-II "SELECT DIAG MODE" Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Erase the memory of VDC/TCS/ABS control unit and ECM.
Turn the ignition switch OFF.
