General Information
>>
System Diagram
System Diagram

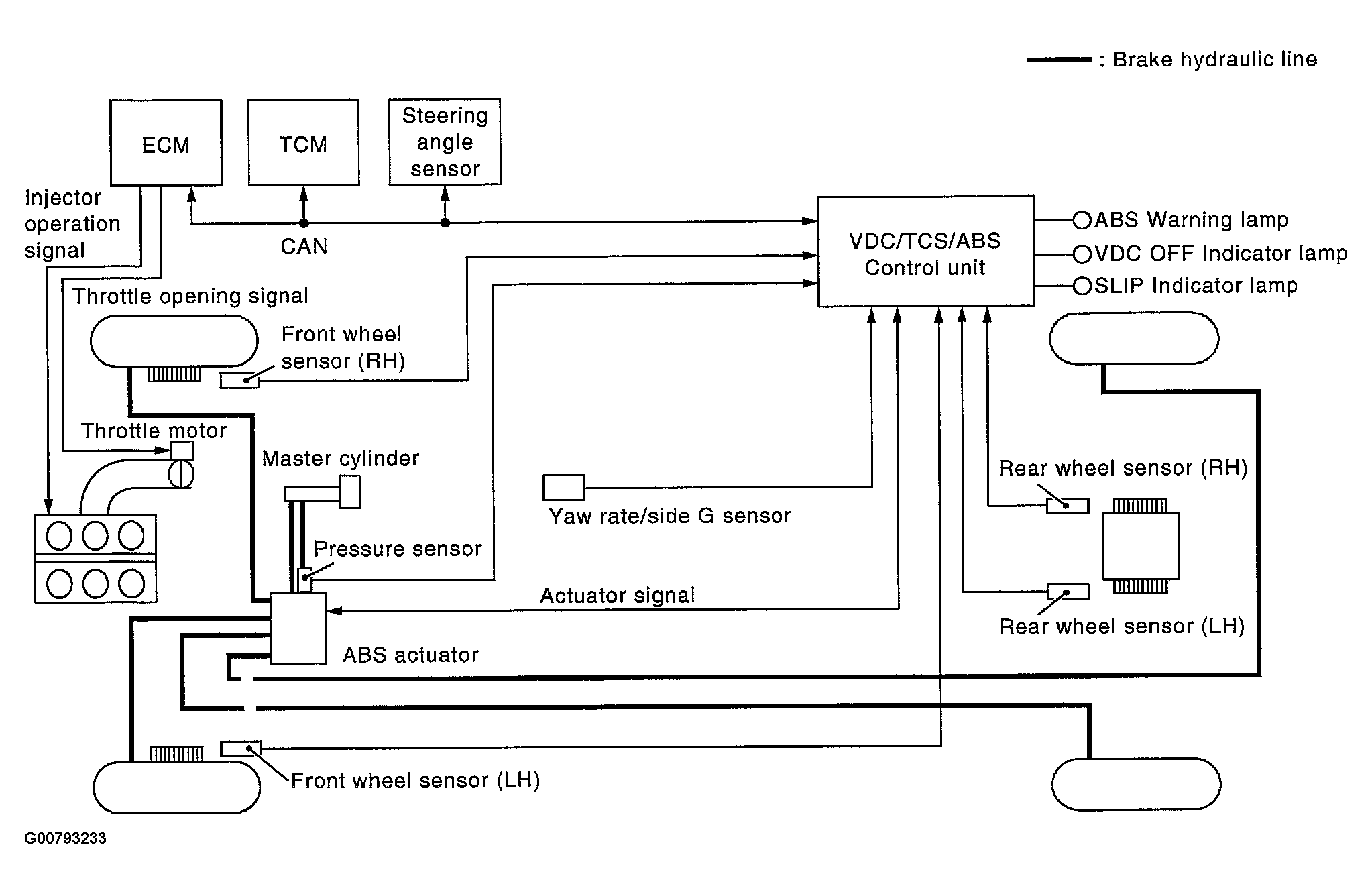

Fig 1: VDC System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
