1 Check Reclining Encoder Output Signal

(Reclining Encoder Check)

Measure voltage between seat control unit LH terminal 29 and ground with CONSULT-II or oscilloscope when power seat reclining is operated.

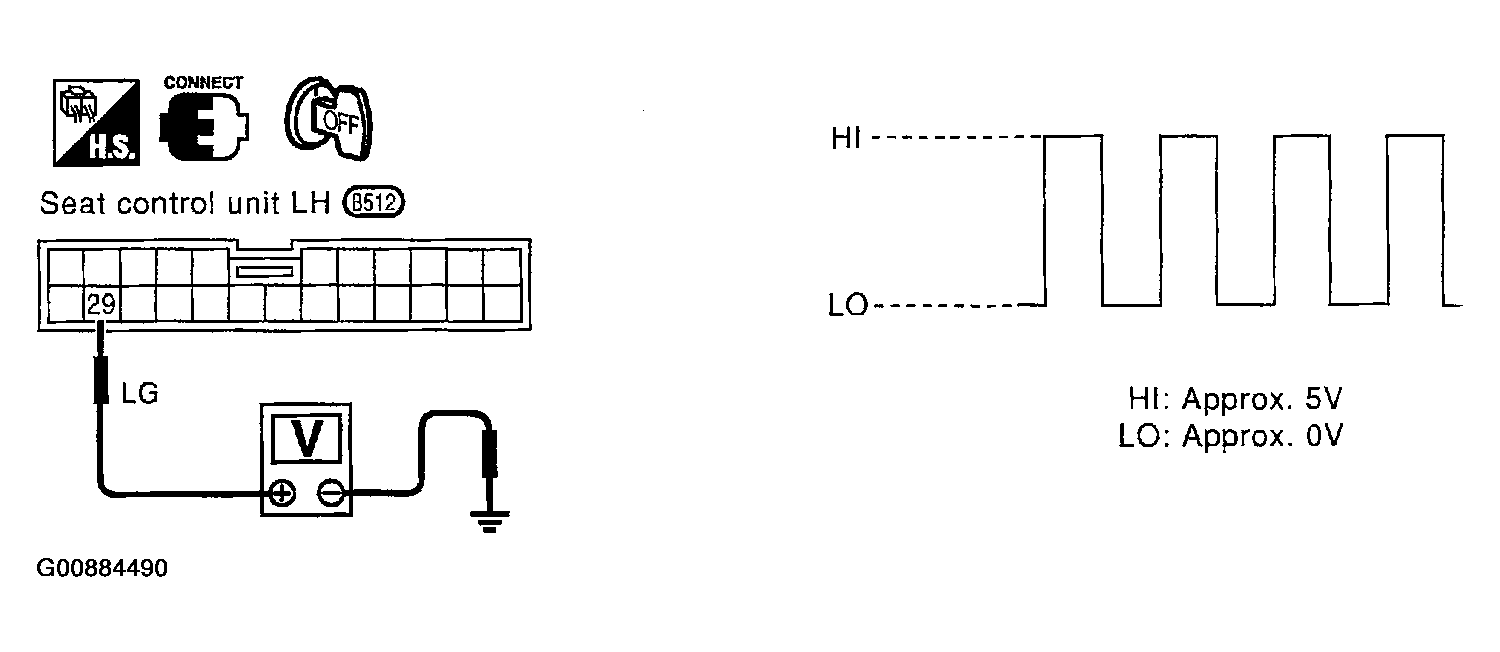

Fig 1: Checking Reclining Encoder For Output Signal

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Reclining encoder is OK.

NG: GO TO 2.
