Eng Speed, Mas A/F Se-B1, THRTL Pos Sen, Ho2S2 (B1), Ho2S1 (B1), INJ Pulse-B1

Below is the data for ENG SPEED, MAS A/F SE-B1, THRTL POS SEN, HO2S2 (B1), HO2S1 (B1) and INJ PULSE-B1 when revving engine quickly up to 4,800 rpm under no load after warming up engine sufficiently.

Each value is for reference, the exact value may vary.

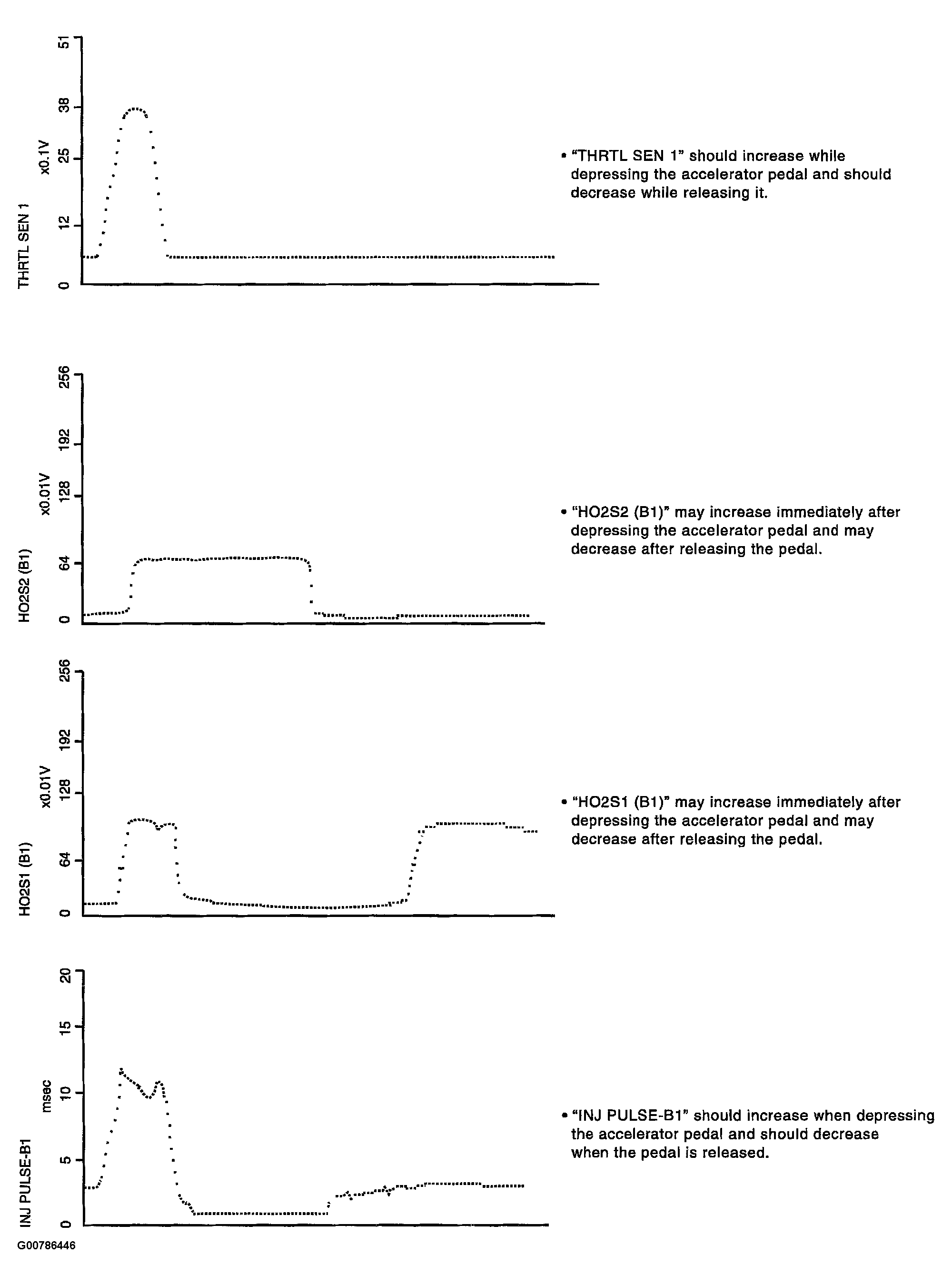

Fig 1: Displaying Major Sensor Reference Graphs In DATA MONITOR Mode (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

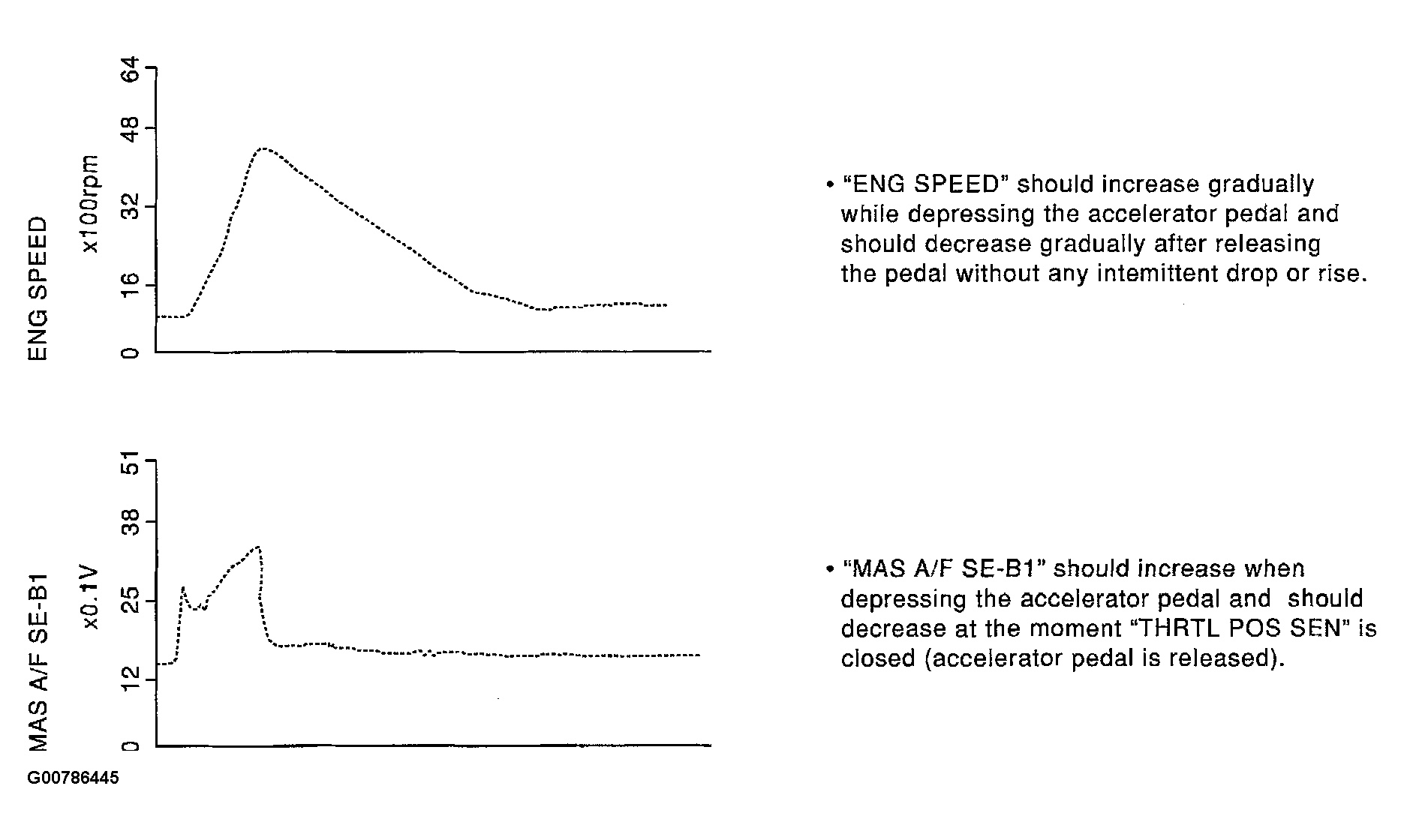

Fig 2: Displaying Major Sensor Reference Graphs In DATA MONITOR Mode (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
