2004.5 - Automatic Transaxle - Sedan
>>
Trouble Diagnosis
>>
TCM Input/Output Signal Reference Values
>>
TCM Inspection Table
TCM Inspection Table

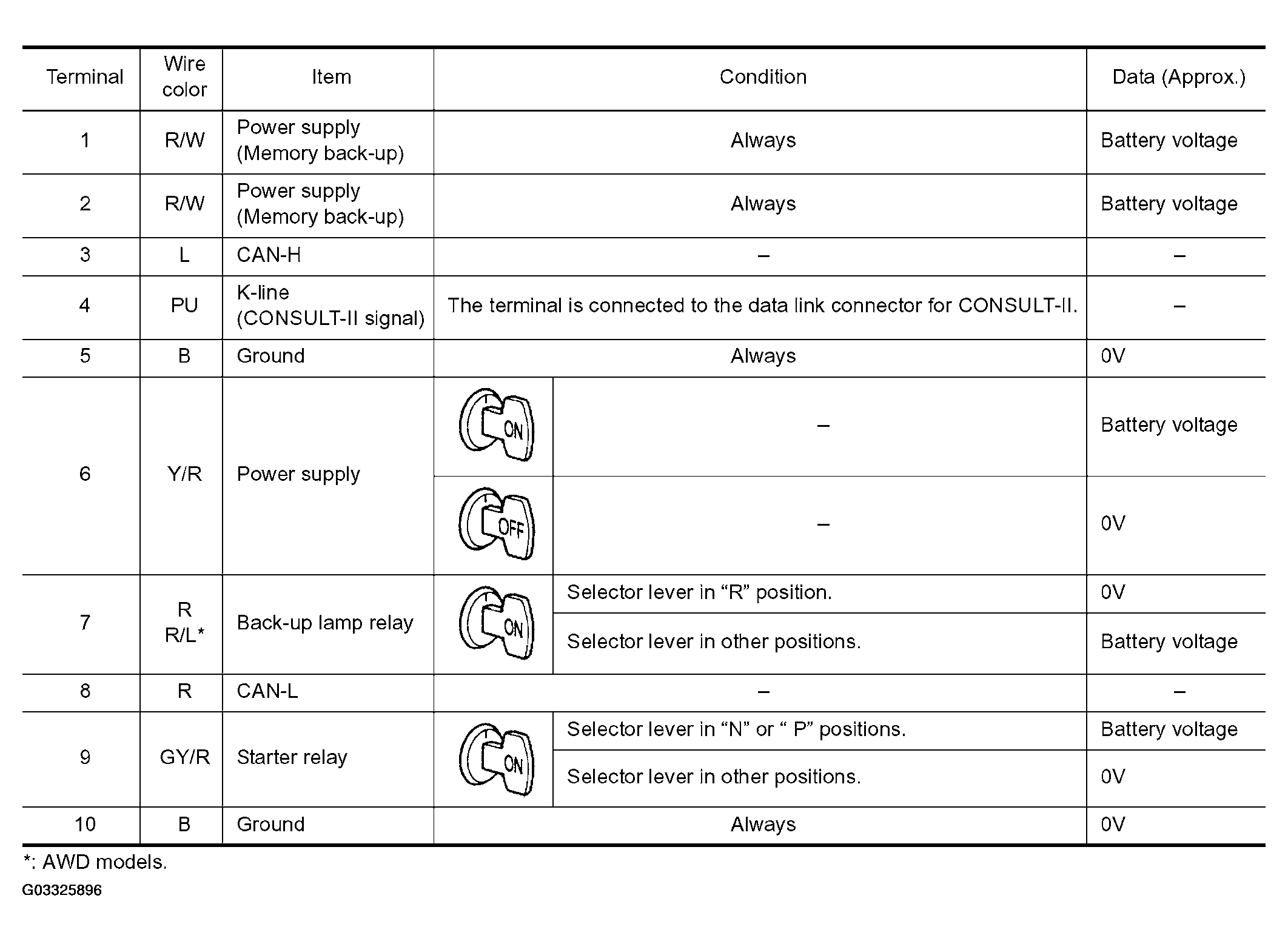

Data are reference value and are measured between each terminal and ground.
Fig 1: TCM Inspection Table
Courtesy of NISSAN MOTOR CO., U.S.A.
