Components (AWD Models)

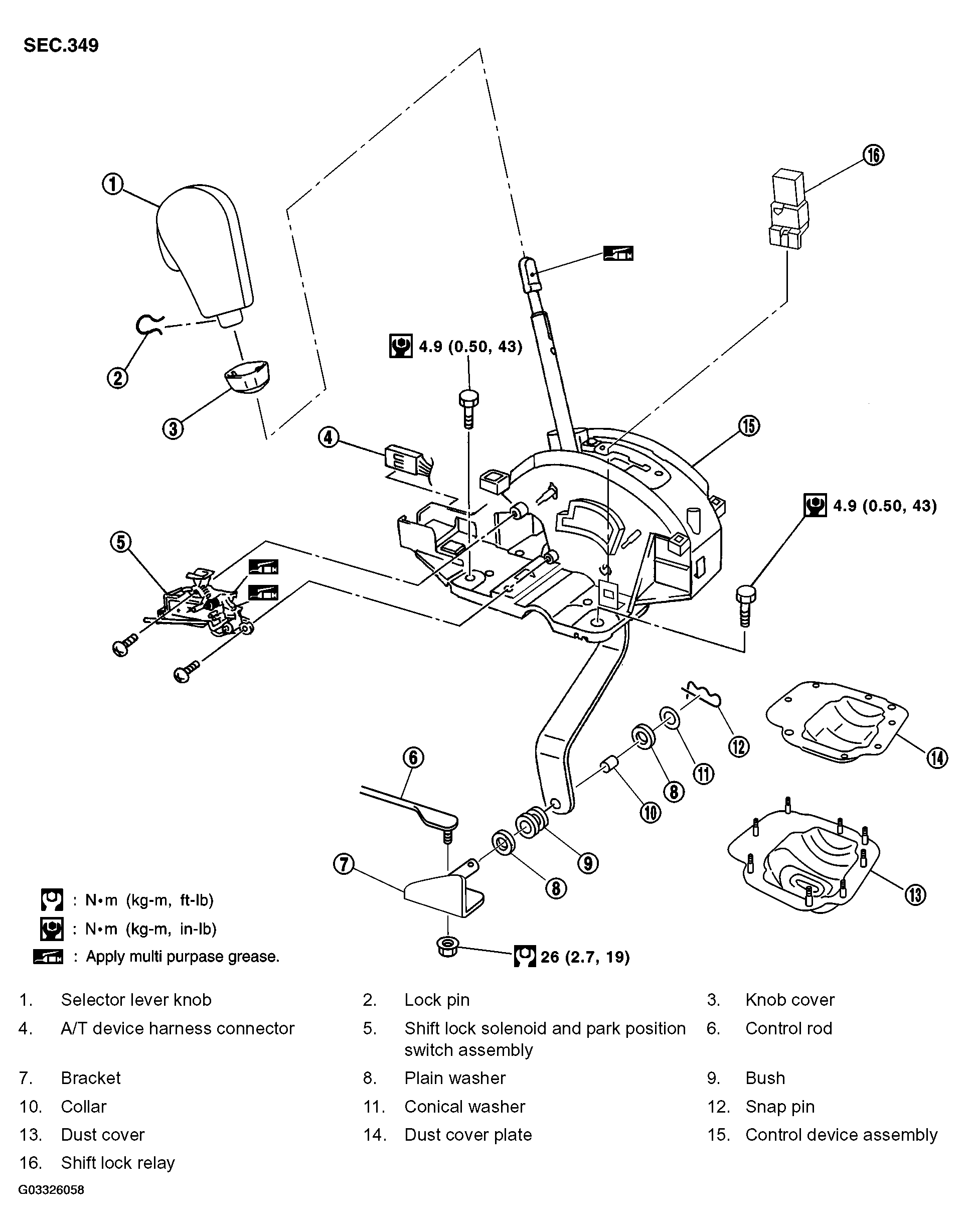

Fig 1: Identifying Shift Control System Components (AWD Models)
G03326058Courtesy of NISSAN MOTOR CO., U.S.A.
