Components (2WD Models)

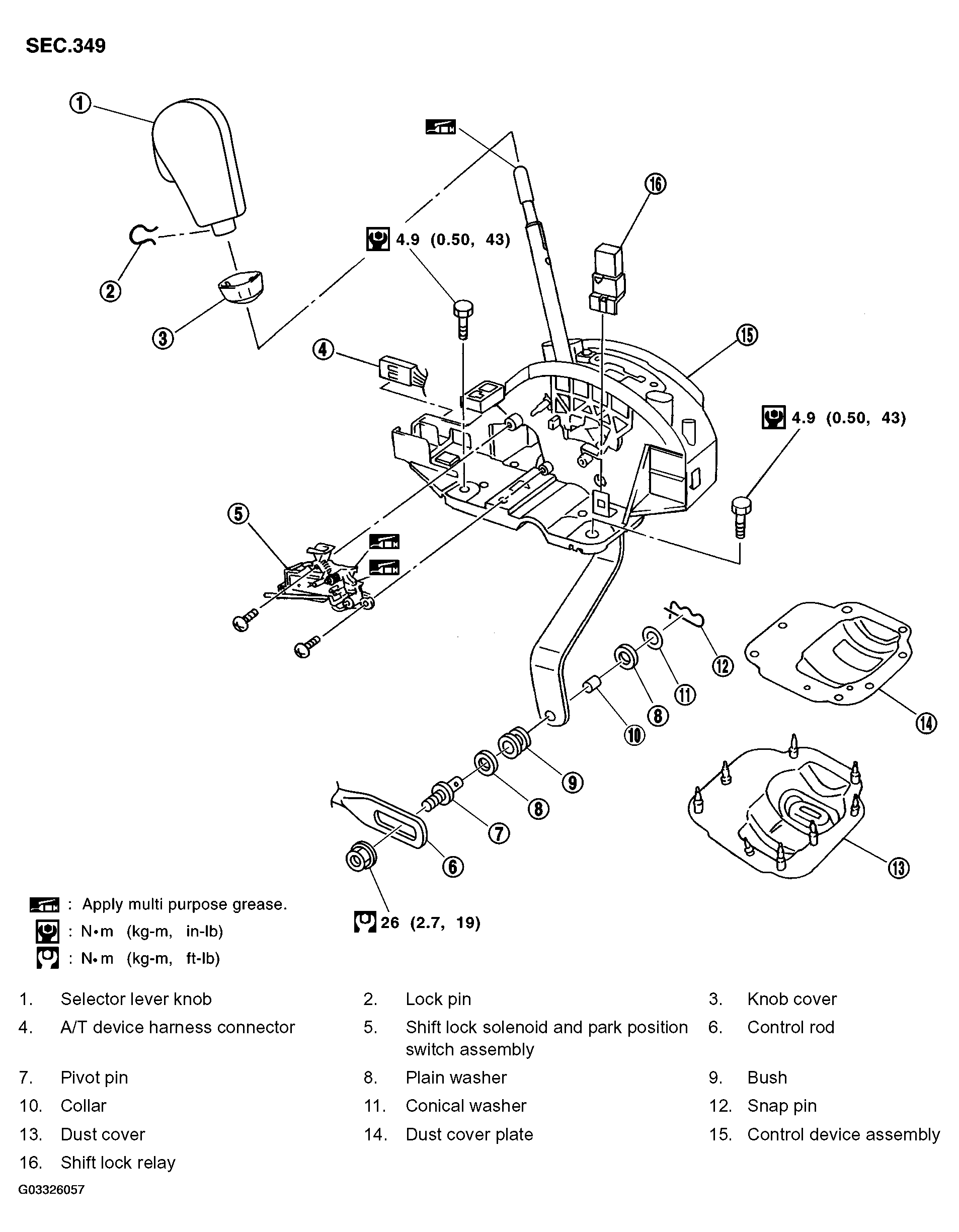

Fig 1: Identifying Shift Control System Components (2WD Models)
G03326057Courtesy of NISSAN MOTOR CO., U.S.A.
