2004.5 - Automatic Transaxle - Sedan: Overhaul: Components: Notes

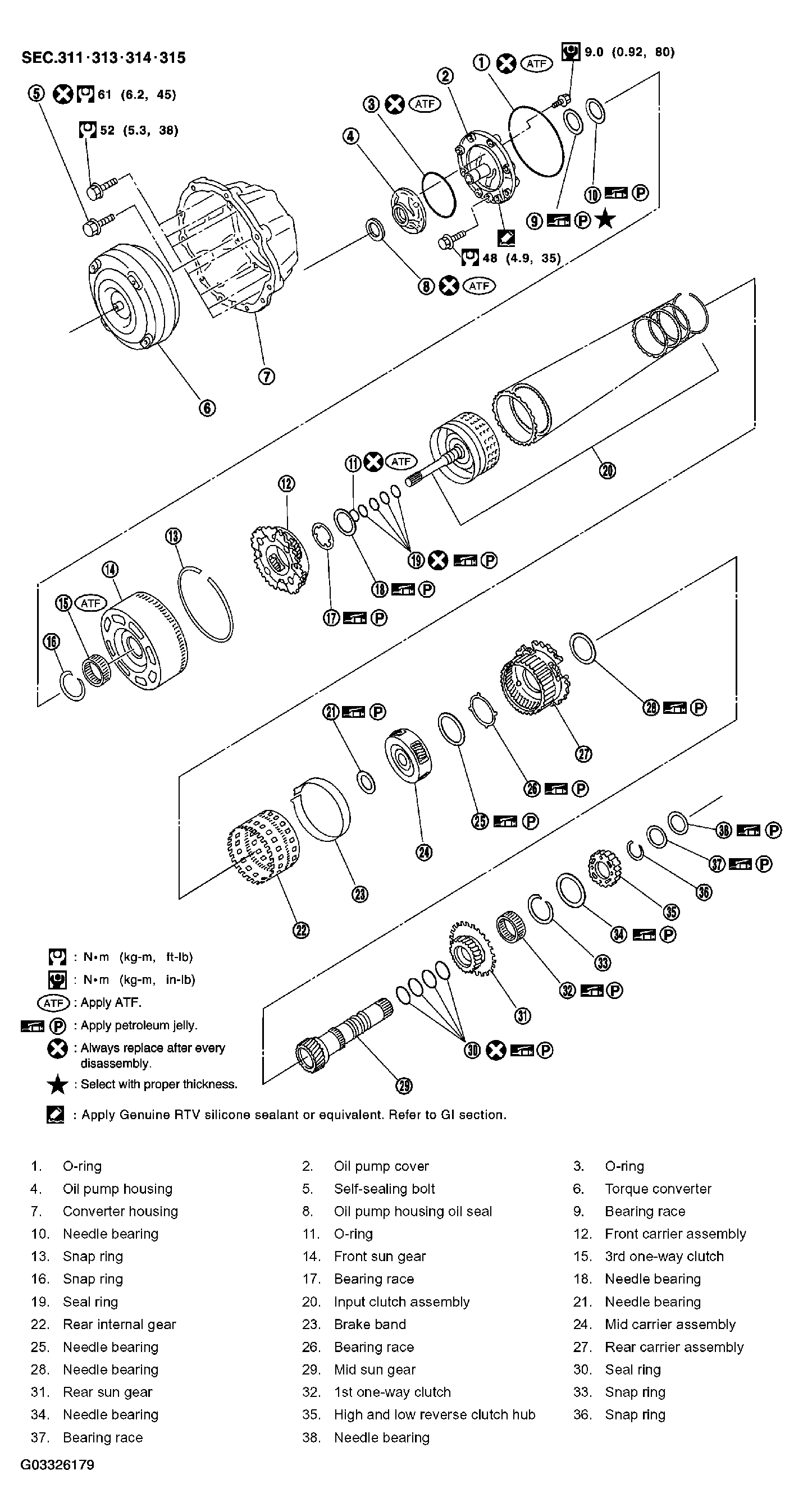

Fig 1: Identifying Exploded View Of Transmission Assembly (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

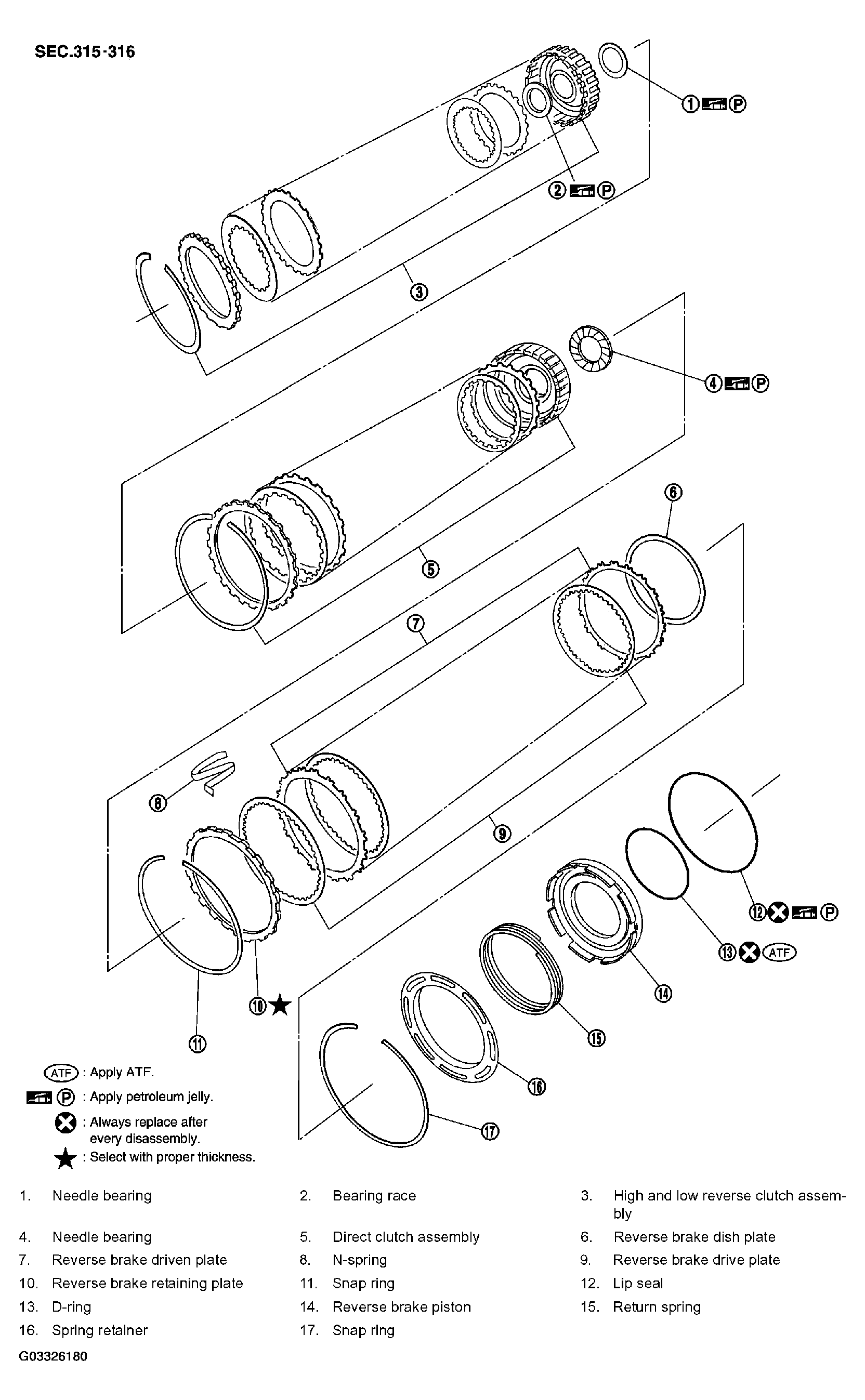

Fig 2: Identifying Exploded View Of Transmission Assembly (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
