Home >> Infiniti >> 2004 >> G35 x >> Repair and Diagnosis >> Transmission >> Automatic Trans >> 2004.5 - Automatic Transaxle - Sedan >> On-Vehicle Service >> Revolution Sensor Components (2WD Models Only) >> Components

Revolution Sensor Components (2WD Models Only): Components

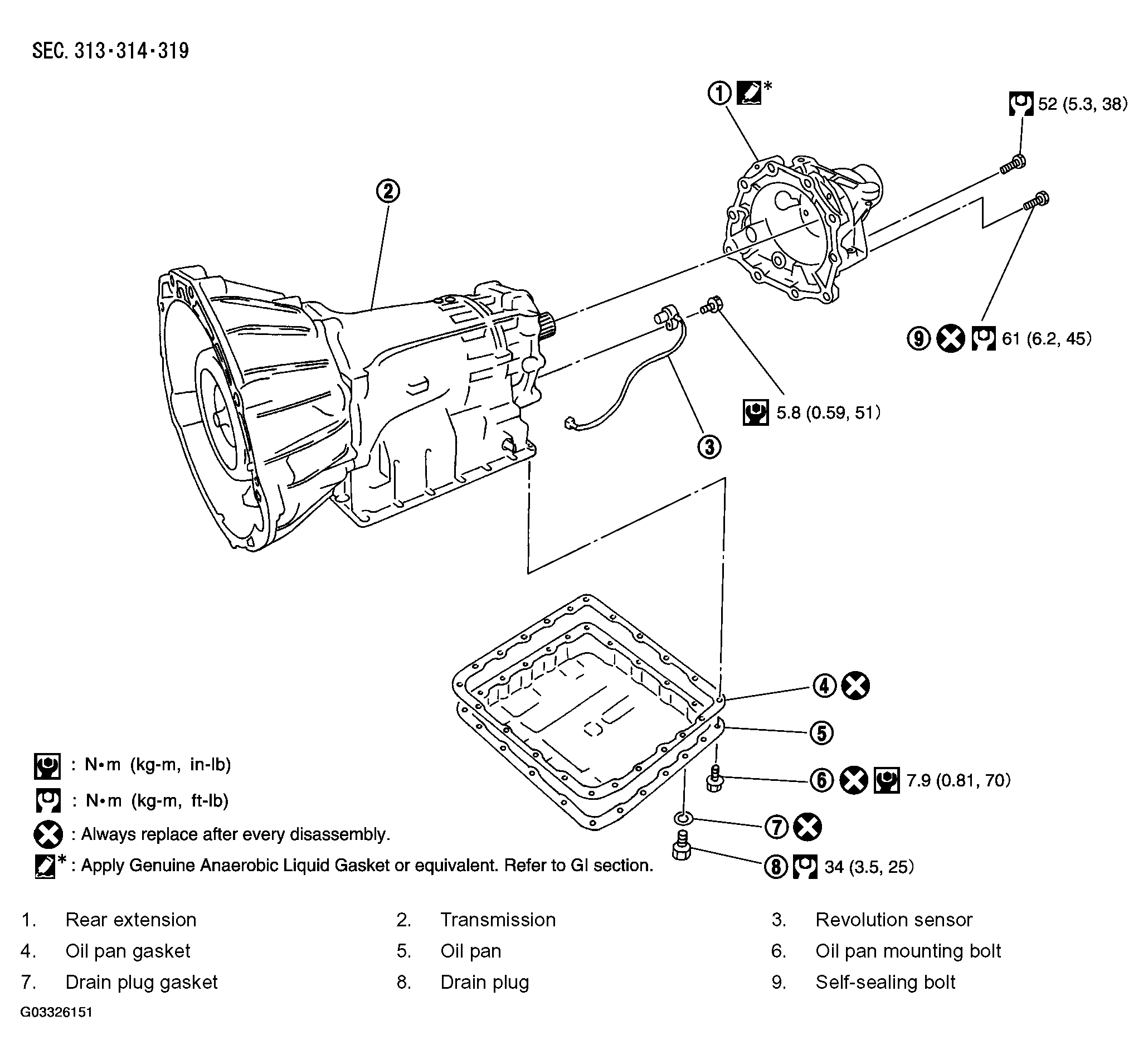

Fig 1: Identifying Revolution Sensor Components (2WD Models Only)

G03326151

Courtesy of NISSAN MOTOR CO., U.S.A.
