Parking Components (2WD Models Only): Components

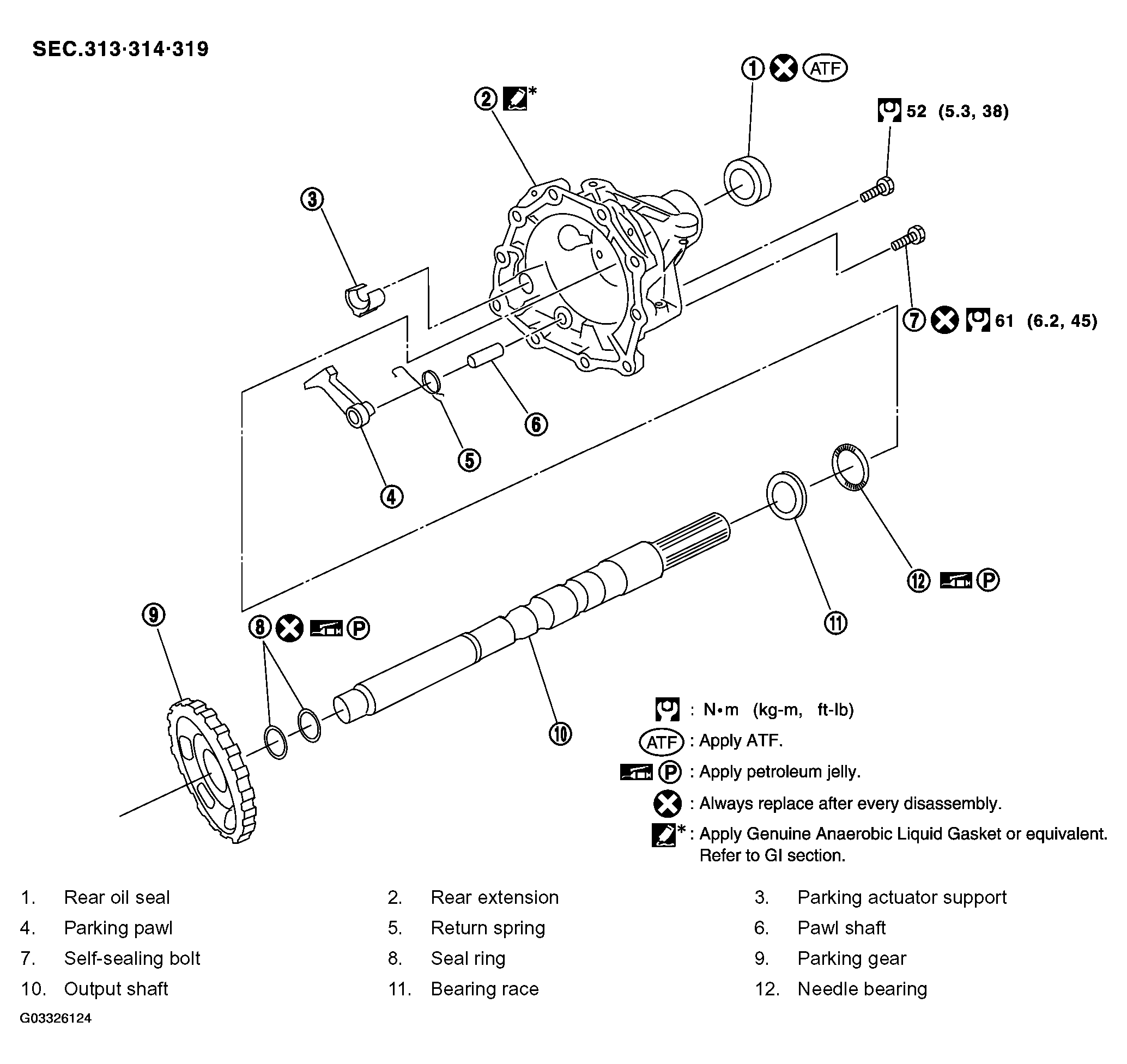

Fig 1: Identifying Parking Components (2WD Models Only)

G03326124

Courtesy of NISSAN MOTOR CO., U.S.A.
