Control Valve with TCM and A/T Fluid Temperature Sensor 2: Components

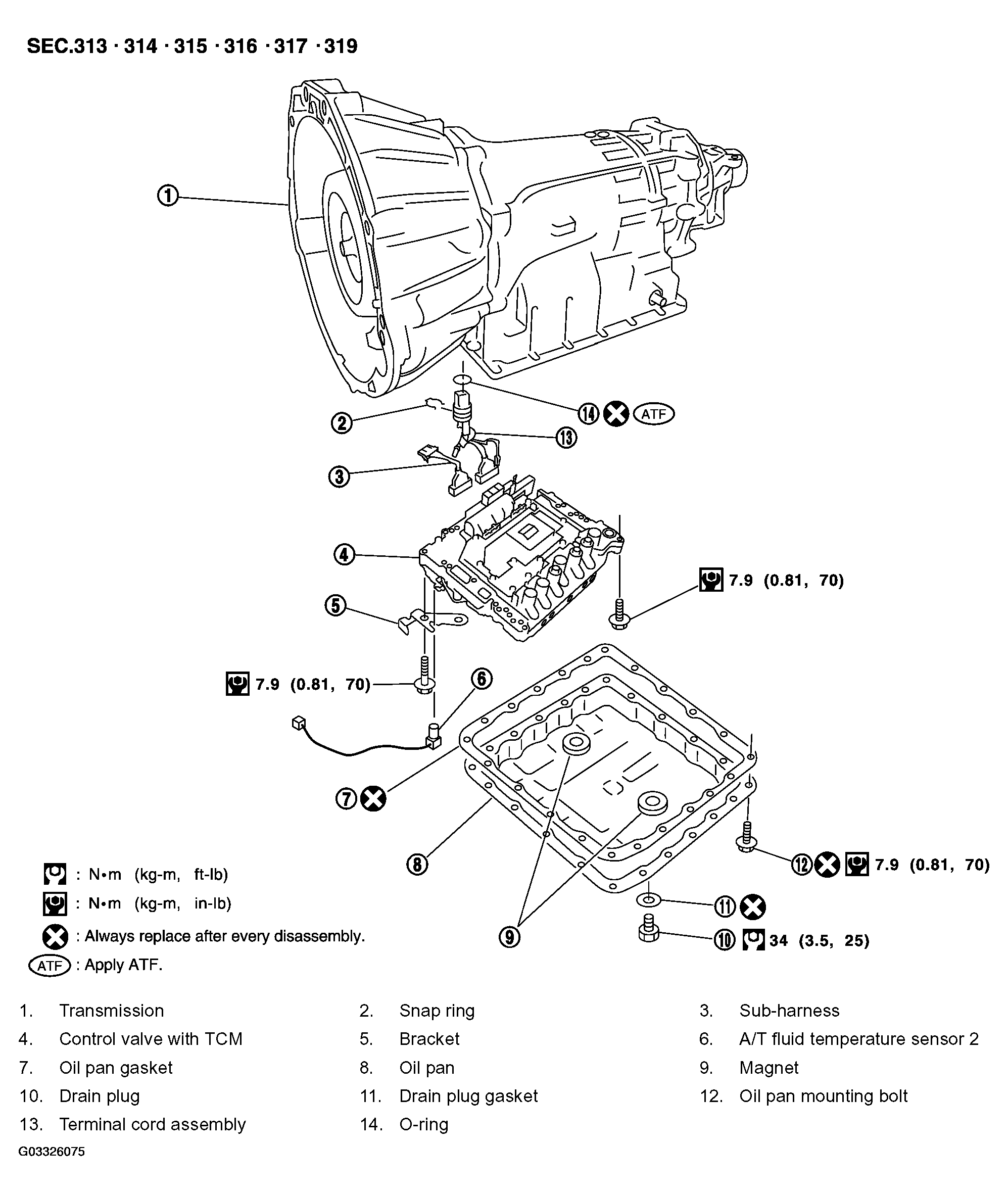

Fig 1: Identifying Control Valve With TCM And A/T Fluid Temperature Sensor 2

G03326075

Courtesy of NISSAN MOTOR CO., U.S.A.
