Removal and Installation: Removal

  1. Unlock slider by squeezing lock tabs on slider from adjuster holder.
  2. Remove casing cap from bracket of control device assembly and remove interlock rod from cable.

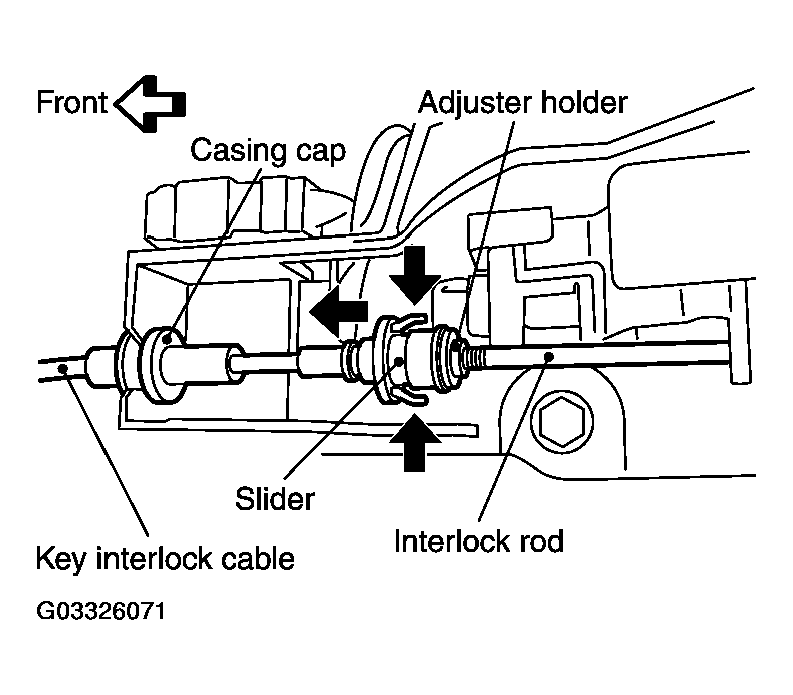

    Fig 1: Removing Casing Cap From Bracket Of Control Device Assembly
    G03326071Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove holder from key cylinder and remove key interlock cable.

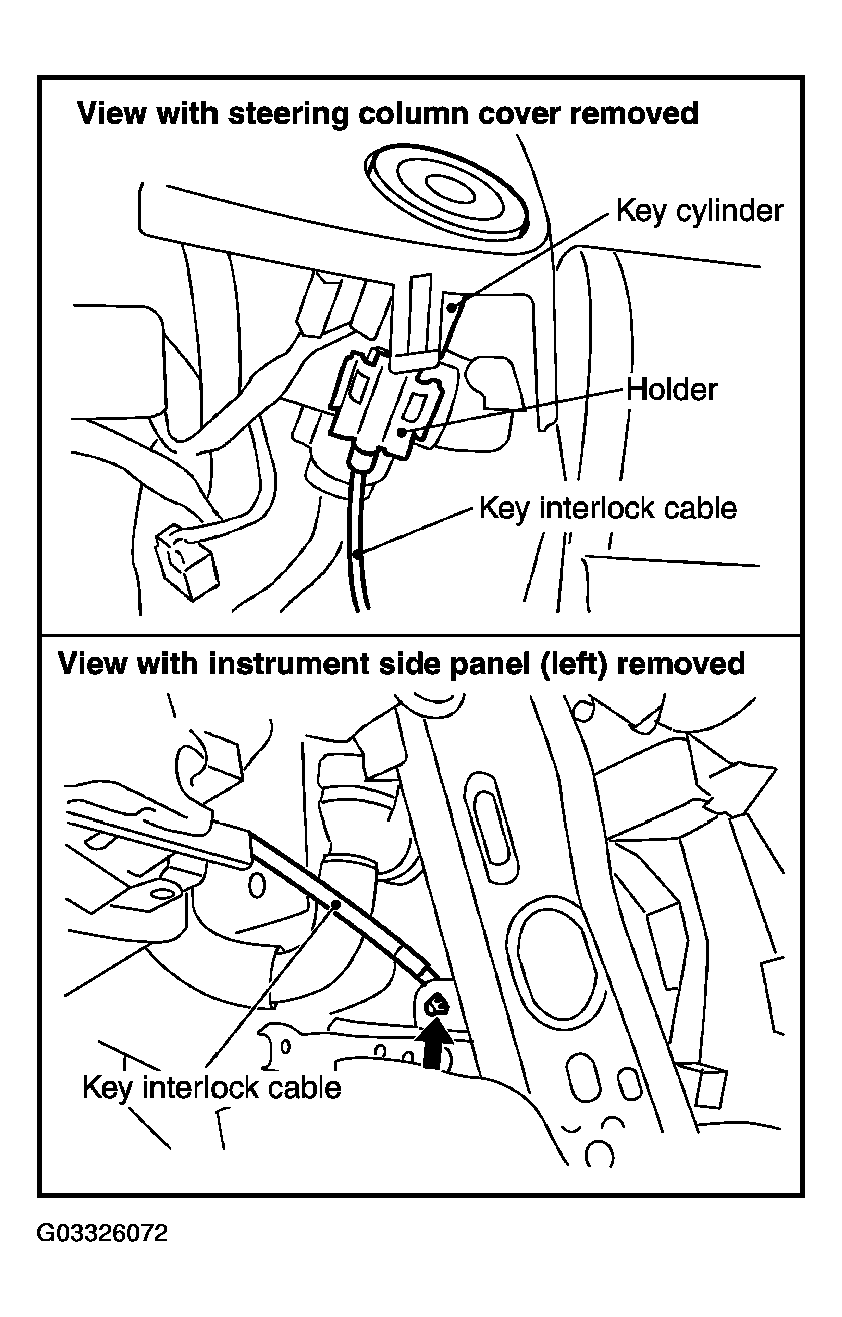

    Fig 2: Removing Holder From Key Cylinder
    G03326072Courtesy of NISSAN MOTOR CO., U.S.A.
