Removal and Installation: Installation

Set key interlock cable to key cylinder and install holder.
Clamp cable and fix to control cable with band.
Turn ignition key to lock position.
Set selector lever to P position.

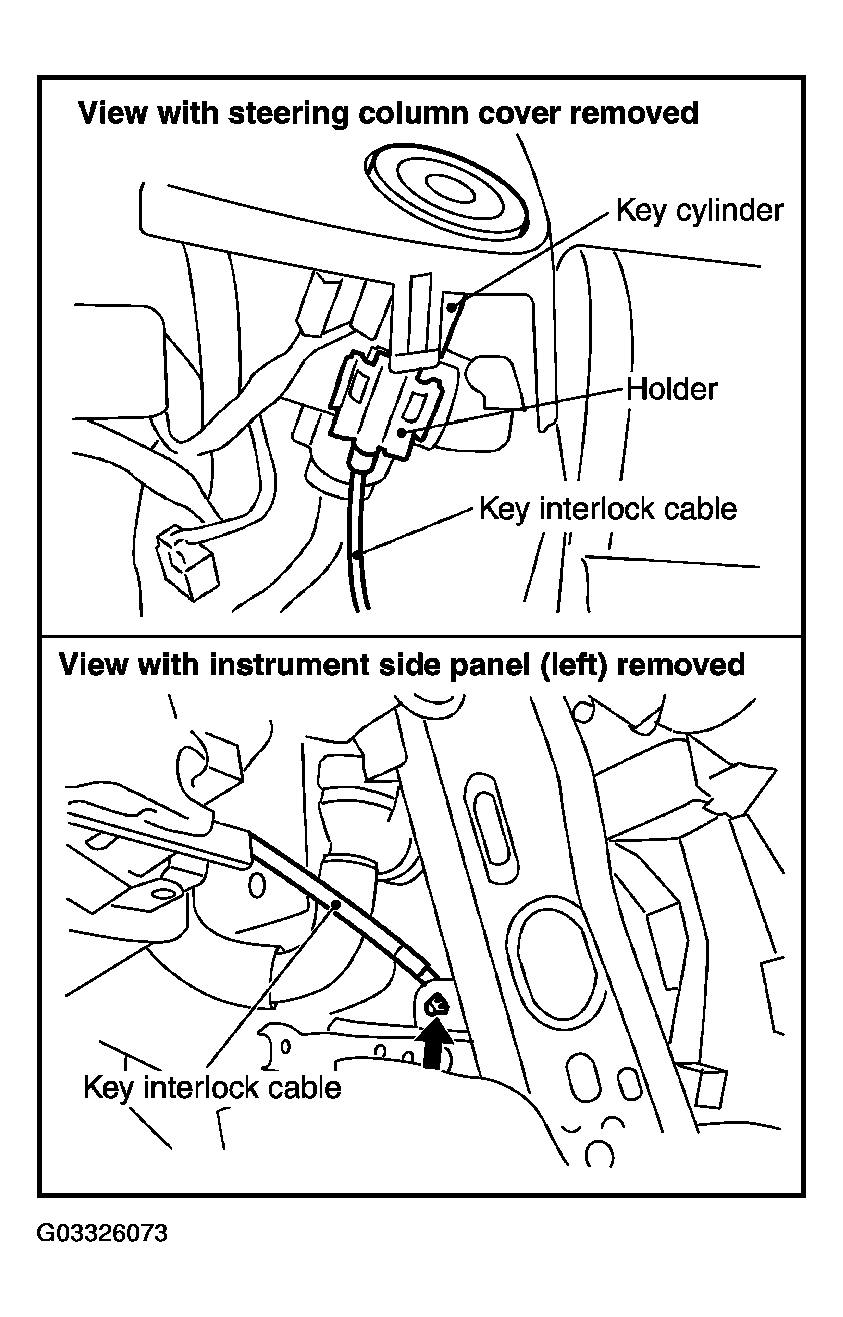

Fig 1: Installing Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert interlock rod into adjuster holder.
Install casing cap to bracket.
Move slider in order to fix adjuster holder to interlock rod.
CAUTION: Do not touch any adjacent parts of key interlock cable when slider is being held.

Insert slider into key interlock rod straightly.

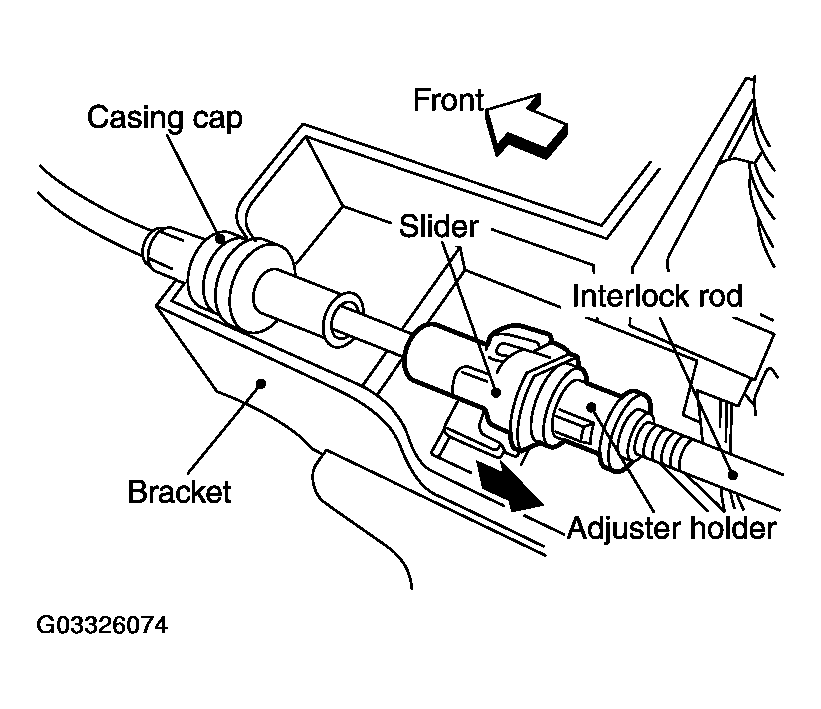

Fig 2: Inserting Slider Into Key Interlock Rod Straightly
Courtesy of NISSAN MOTOR CO., U.S.A.
