With CONSULT-II

  1. Turn ignition switch ON. (Do not start engine.)
  2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
  3. Move selector lever to "M" position.
  4. Start engine and drive vehicle for at least 2 consecutive seconds.
  5. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

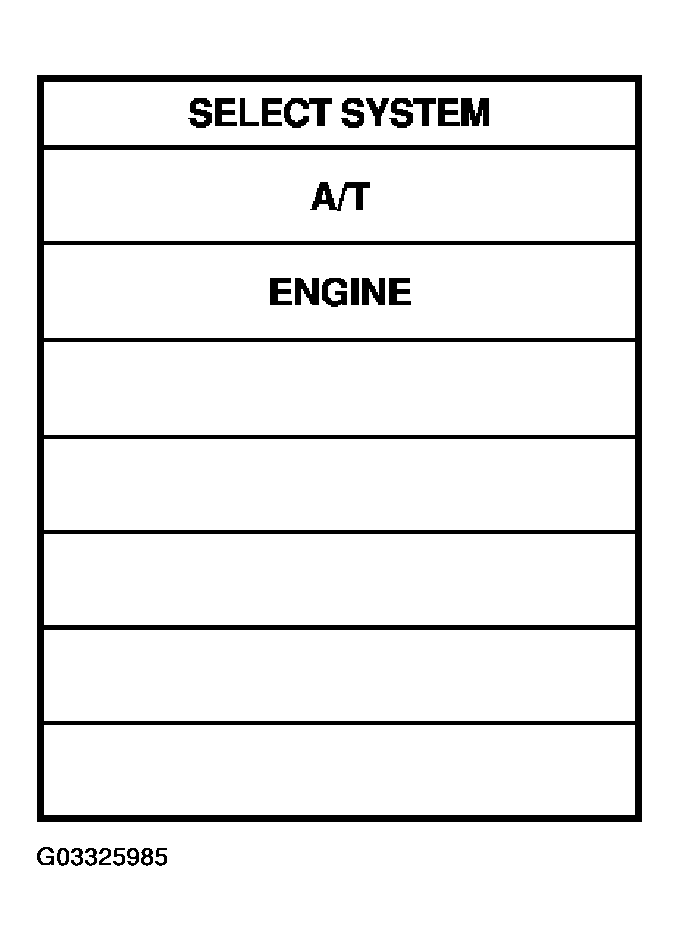

    Fig 1: Identifying Scan Tool Display
    G03325985Courtesy of NISSAN MOTOR CO., U.S.A.
