Manual Mode Switch

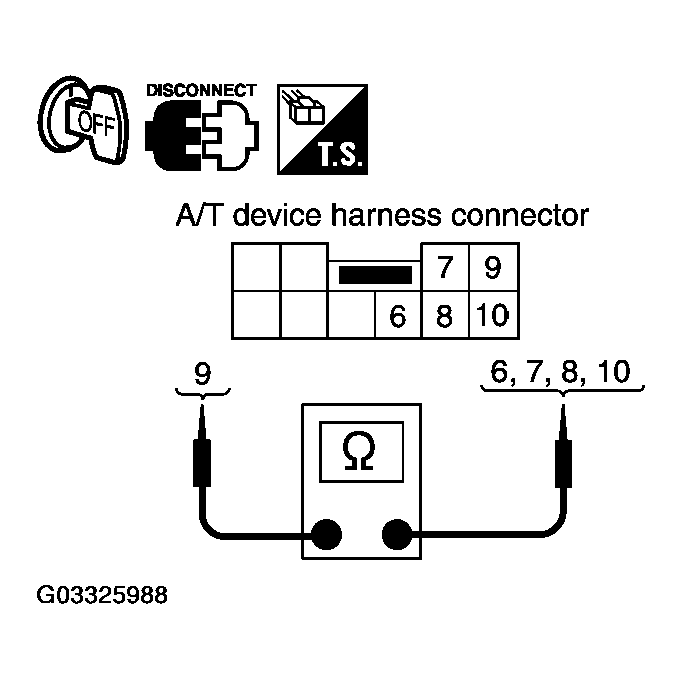

Check continuity between terminals.
ITEM CONDITION SPECIFICATION
| Item |
Position |
Connector |
Terminal |
Continuity |
| Manual mode select switch |
Auto |
M47 |
9 - 10 |
Yes |
| Manual |
6 - 9 |
| Manual mode position select switch |
UP |
8 - 9 |
| DOWN |
7 - 9 |
Courtesy of NISSAN MOTOR CO., U.S.A.
