With CONSULT-II

  1. Turn ignition switch ON. (Do not start engine.)
  2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
  3. Start engine and let it idle for 1 second.
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

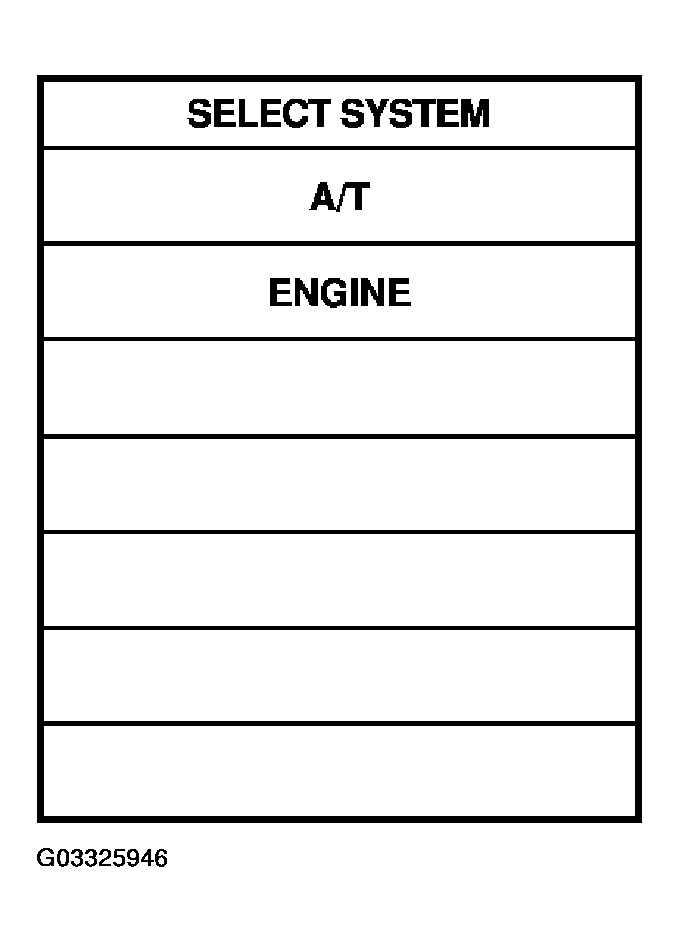

    Fig 1: Identifying Scan Tool Display
    G03325946Courtesy of NISSAN MOTOR CO., U.S.A.
