Diagnostic Procedure

SYMPTOM 1:

• Selector lever cannot be moved from "P" position with key in ON position and brake pedal applied.
• Selector lever can be moved from "P" position with key in ON position and brake pedal released.
• Selector lever can be moved from "P" position when key is removed from key cylinder.

SYMPTOM 2:

• Ignition key cannot be removed when selector lever is set to "P" position.
• Ignition key can be removed when selector lever is set to any position except "P".

1. CHECK KEY INTERLOCK CABLE

   Check key interlock cable for damage.

   OK or NG

   1. OK: GO TO 2.
   2. NG: Repair key interlock cable. Refer to "KEY INTERLOCK CABLE ".
2. CHECK SELECTOR LEVER POSITION

   Check selector lever position for damage. Refer to "CHECKING OF A/T POSITION ".

   OK or NG

   1. OK: GO TO 3.
   2. NG: Adjustment A/T position. Refer to "ADJUSTMENT OF A/T POSITION ".
3. CHECK POWER SOURCE
   1. Turn ignition switch ON. (Do not start engine.)
   2. Check voltage between A/T device harness connector M47 terminal 2 (Y/G) and ground.

      Voltage: Battery voltage

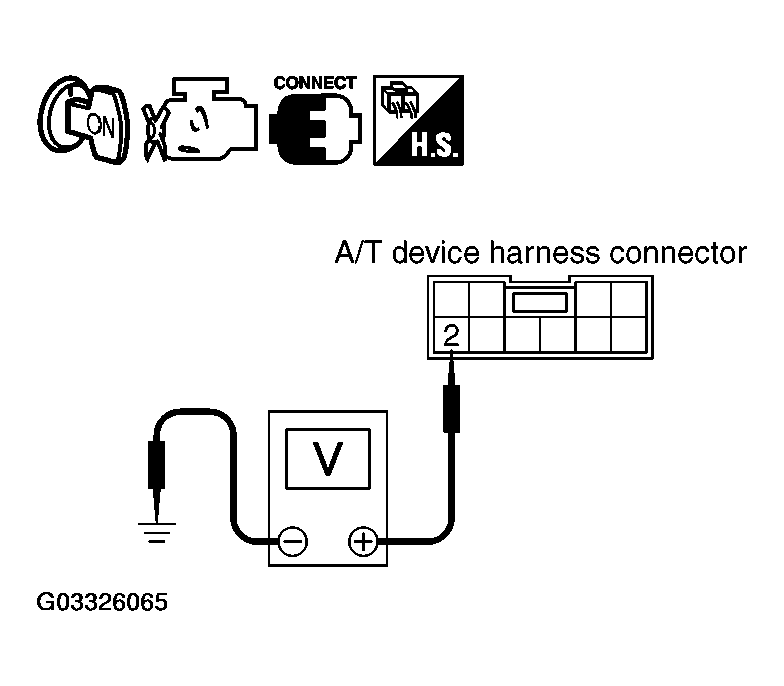

      Fig 1: Checking Power Source

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO  5.
   2. NG: GO TO 4.
4. DETECT MALFUNCTIONING ITEM

   Check the following items:

   1. Harness for short or open between ignition switch and A/T device harness connector M47 terminal 2
   2. 10A fuse [No.12, located in the fuse block (J/B)]
   3. Ignition switch (Refer to POWER SUPPLY ROUTING CIRCUIT ).

   OK or NG

   1. OK: GO TO 5.
   2. NG: Repair or replace damaged parts.
5. CHECK INPUT SIGNAL A/T DEVICE
   1. Turn ignition switch OFF.
   2. Disconnect A/T device harness connector.
      • Check voltage between A/T device harness connector M47 terminal 4 (OR) and ground.

        Voltage:

        Depressed brake pedal

        :Battery voltage

        Released brake pedal

        :Approx. 0V

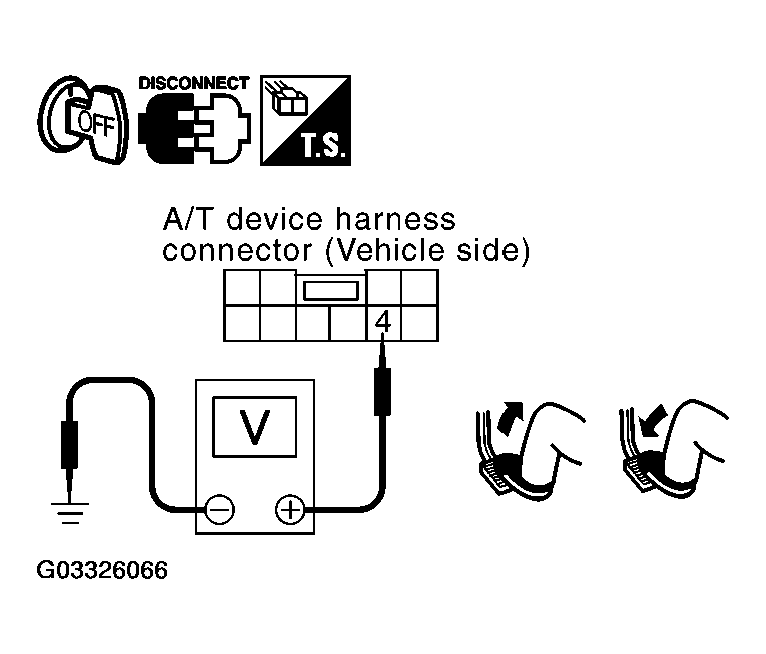

        Fig 2: Checking Input Signal A/T Device

        Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO  7.
   2. NG: GO TO 6.
6. DETECT MALFUNCTIONING ITEM

   Check the following items:

   1. Harness for short or open between battery and stop lamp switch harness connector E124 terminal 1.
   2. Harness for short or open between stop lamp switch harness connector E124 terminal 2 and A/T device harness connector M47 terminal 4.
   3. 10A fuse [No.20, located in the fuse block (J/B)]
   4. Stop lamp switch
      • Check continuity between stop lamp switch harness connector E124 terminals 1 and 2.

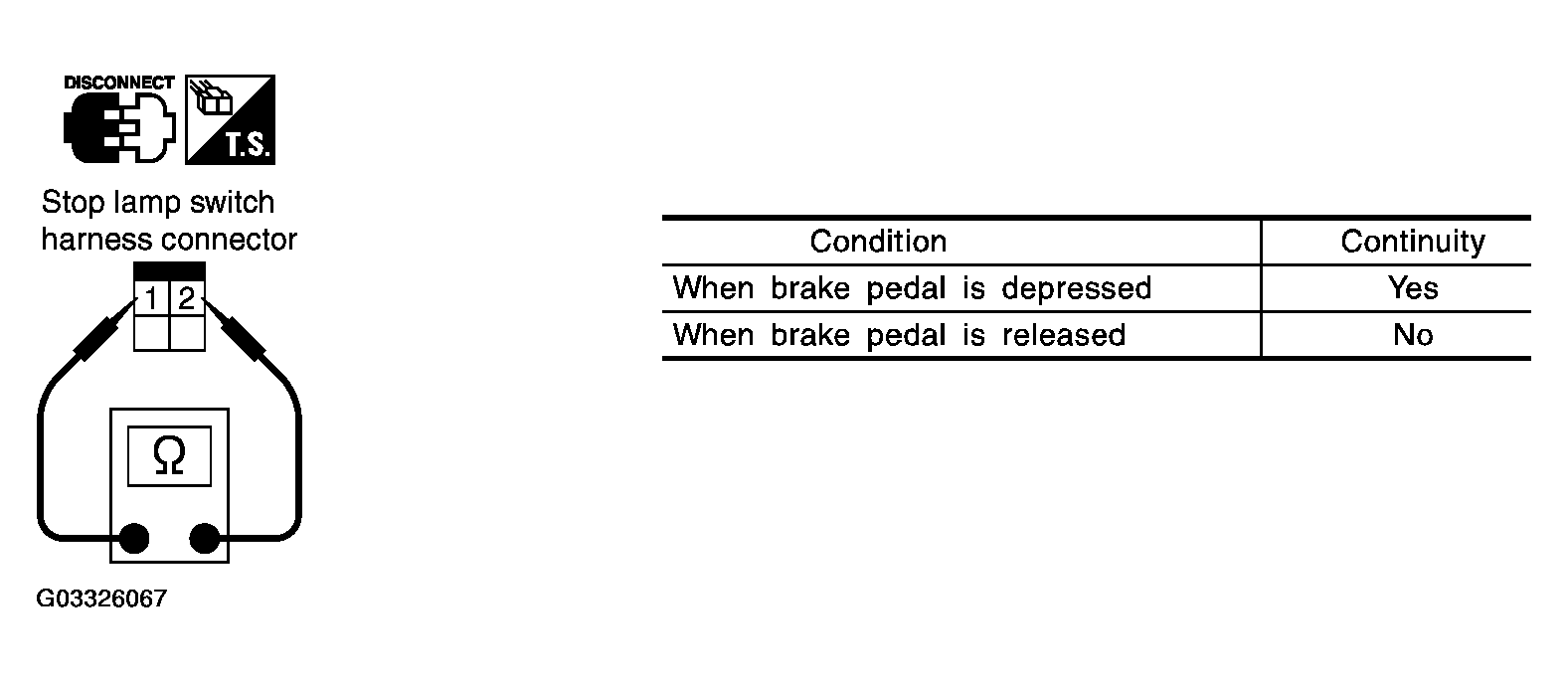

        Fig 3: Checking Continuity Between Stop Lamp Switch Harness Connector

        Courtesy of NISSAN MOTOR CO., U.S.A.

   Check stop lamp switch after adjusting brake pedal.

   OK or NG

   1. OK: GO TO 7.
   2. NG: Repair or replace damaged parts.
7. CHECK GROUND CIRCUIT
   1. Turn ignition switch OFF.
   2. Disconnect A/T device harness connector.
   3. Check continuity between A/T device harness connector M47 terminal 1 (B) and ground.

      Continuity should exist.

      If OK, check harness for short to ground and short to power.

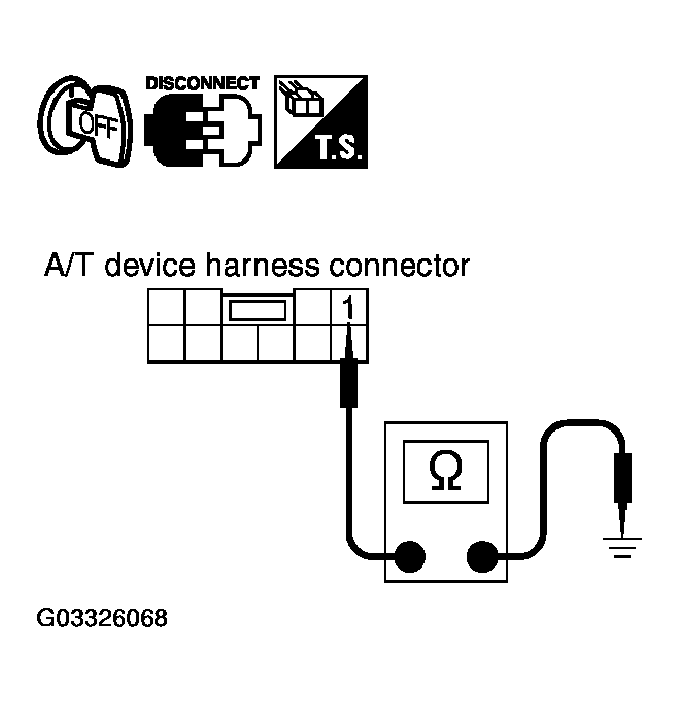

      Fig 4: Checking Ground Circuit

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 8.
   2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK PARK POSITION SWITCH AND SHIFT LOCK RELAY CIRCUIT (COIL SIDE)

   Check continuity between A/T device harness connector terminals 1 and 4.

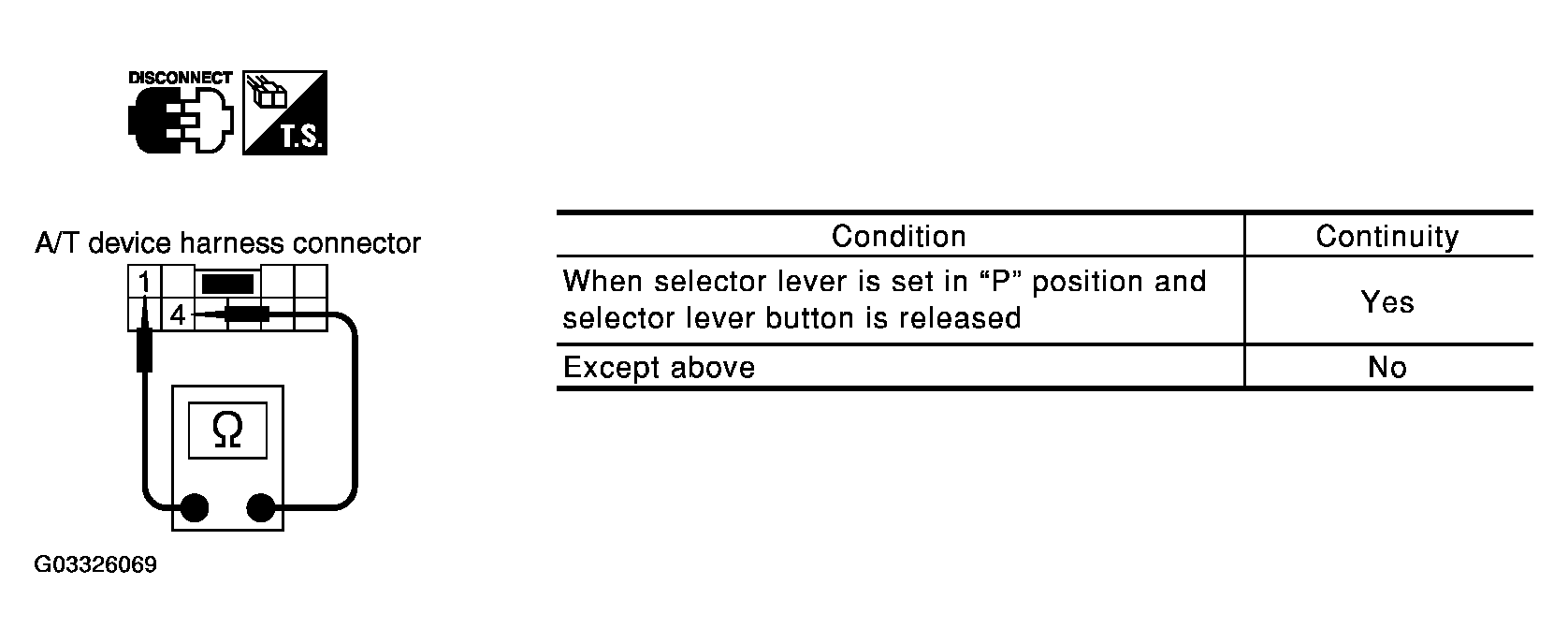

   Fig 5: Checking Park Position Switch And Shift Lock Relay Circuit (Coil Side)

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 9.
   2. NG: Go to next step.
      • Replace park position switch or shift lock relay.
      • Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK SHIFT LOCK SOLENOID AND SHIFT LOCK RELAY CIRCUIT (SWITCH SIDE)
   1. Connect A/T device harness connector.
   2. Turn ignition switch ON. (Do not start engine.)
   3. Check shift lock solenoid and shift lock relay operation.
      BRAKE PEDAL CONDITION SPECIFICATION



      Condition	Brake pedal	Operation
      When ignition switch is turned to ON position and selector lever is set in "P" position.	Depressed	Yes
      	Released	No

   OK or NG

   1. OK: GO TO 10.
   2. NG: Go to next step.
      • Replace shift lock solenoid or shift lock relay.
      • Repair open circuit or short to ground or short to power in harness or connectors.
   3. CHECK A/T DEVICE INSPECTION
      1. Perform A/T device input/output signal inspection test. Refer to "A/T DEVICE INSPECTION TABLE ".
      2. If NG, recheck harness connector connection.

      OK or NG

      1. OK: INSPECTION END
      2. NG: Repair or replace damaged parts.
