Cross-Sectional View (2WD models)
Cross-Sectional View (2WD models)

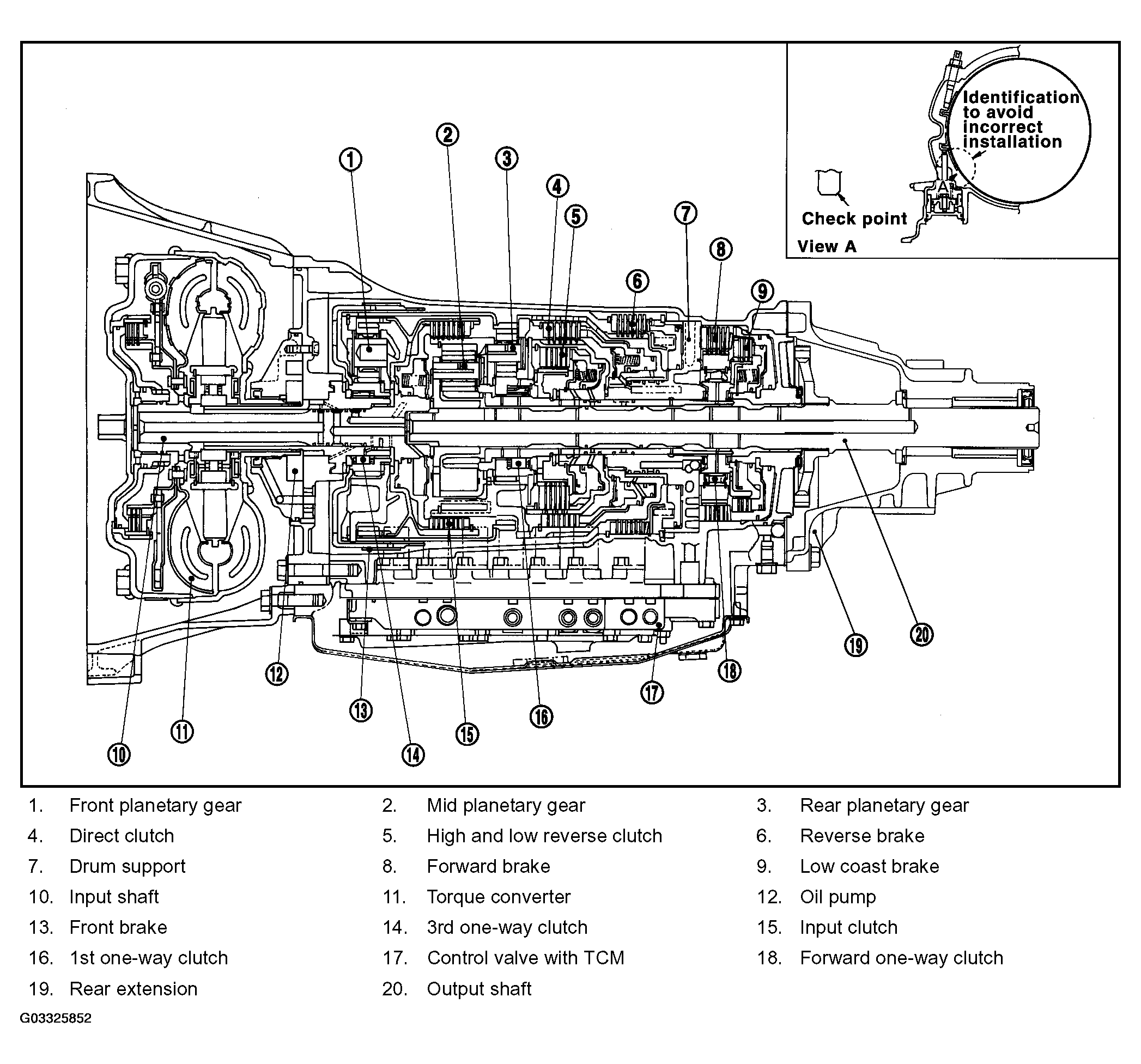

Fig 1: Identifying Cross-Sectional View (2WD models)
Courtesy of NISSAN MOTOR CO., U.S.A.
