Electrical Component Locator - Sedan: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|

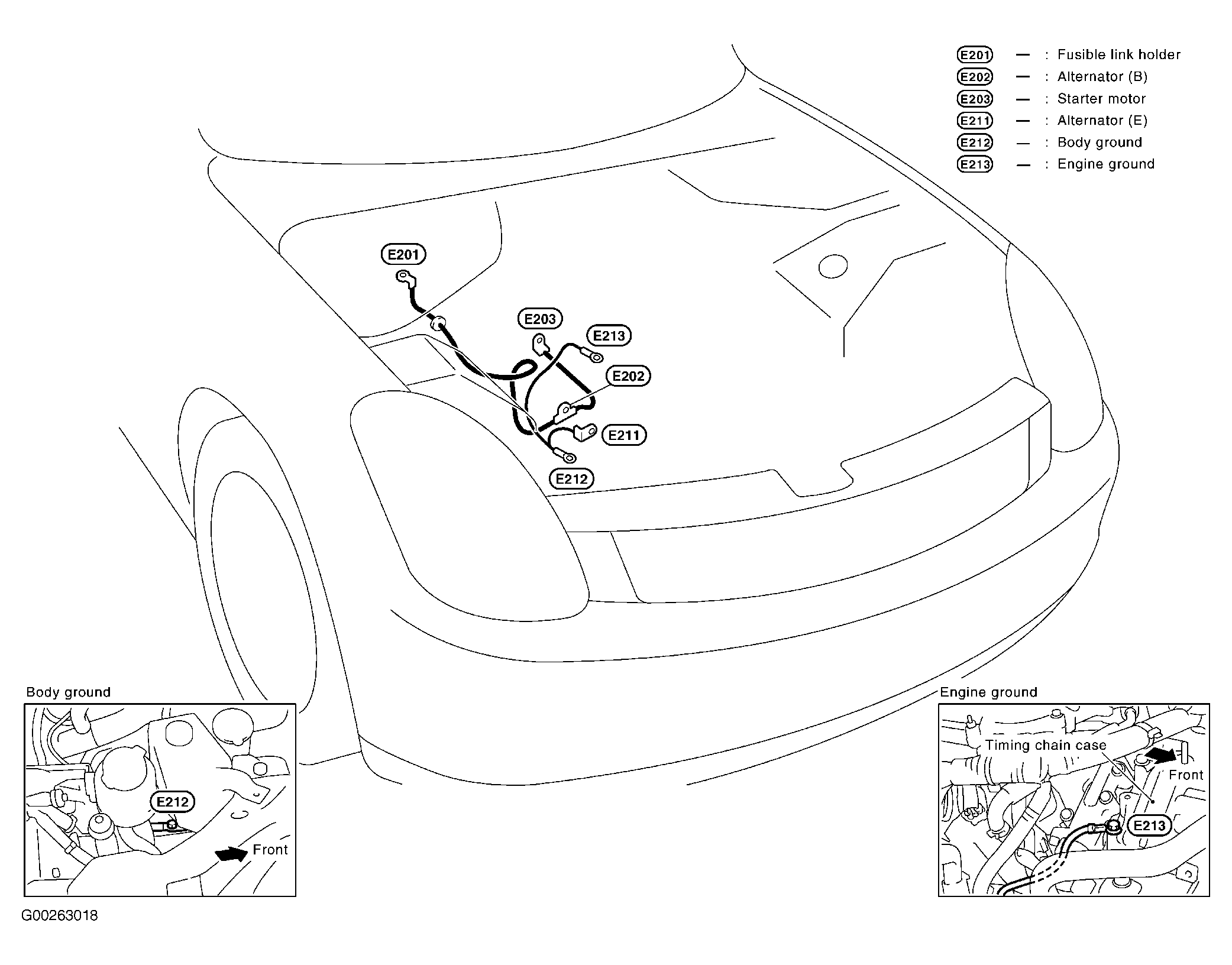

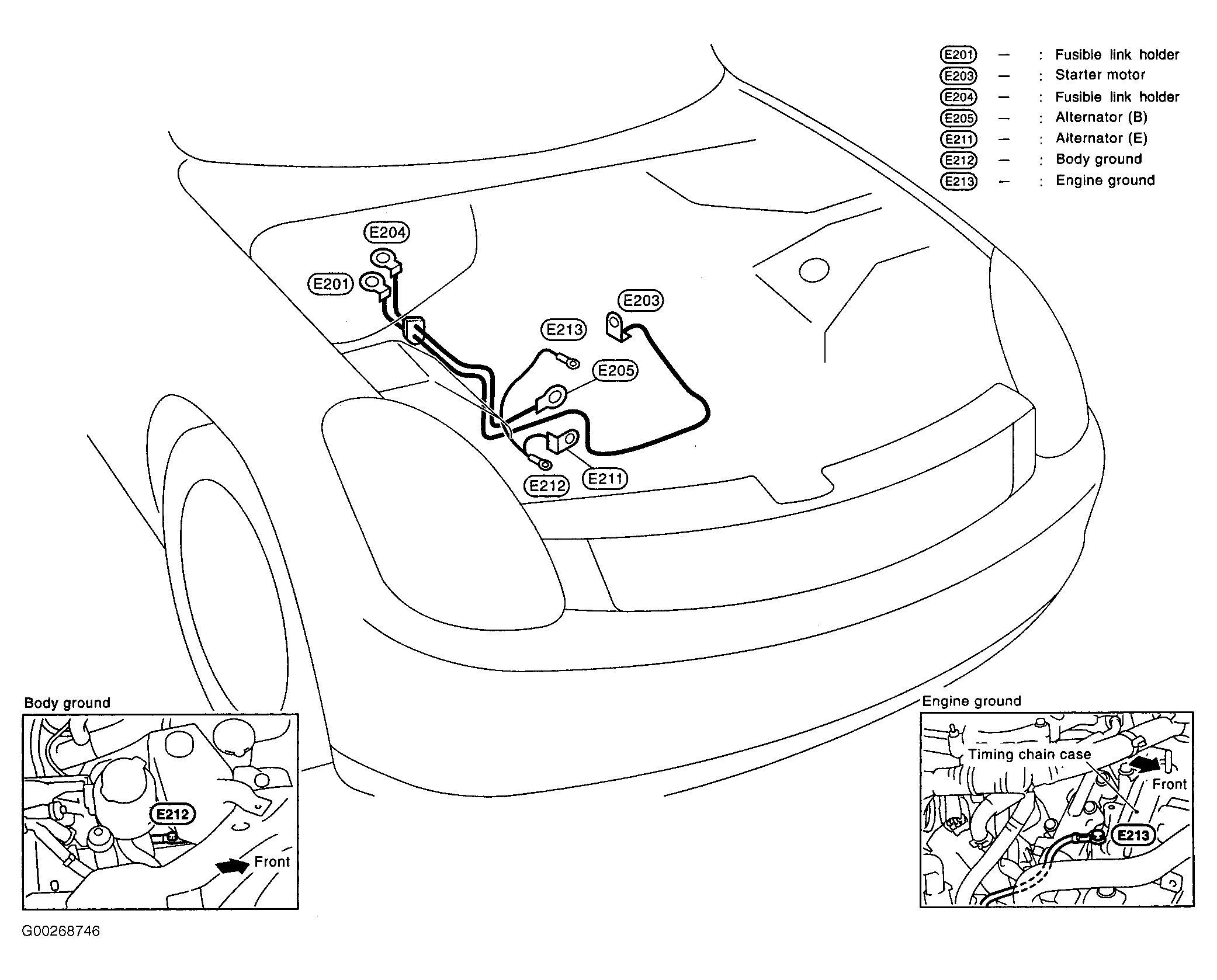

| Alternator (B) (AWD) (Late Production) | At right side of engine compartment. See Figure . |
| Alternator (B) (Early Production) | At right side of engine compartment. See Figure . |
| Alternator (E) (AWD) (Late Production) | At right side of engine compartment. See Figure . |
| Alternator (E) (Early Production) | At right side of engine compartment. See Figure . |

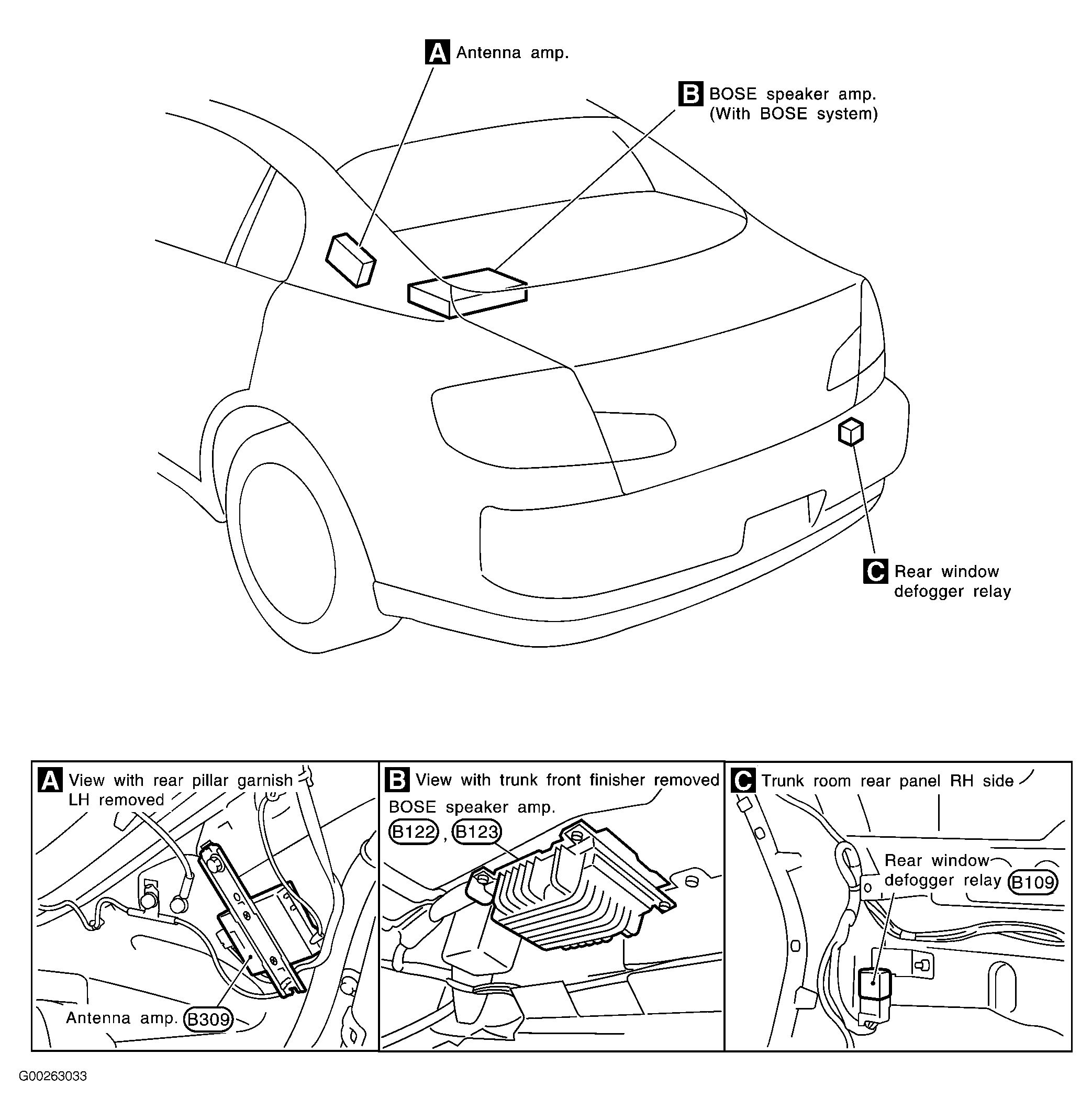

| Antenna Amplifier | At left "C" pillar. See Figure . |
| Antenna Amplifier (M45) | Under center console. See Figure . |
| A/T Device (M47) | Under center console. See Figure . |
| BOSE Speaker Amplifier | Under rear parcel shelf. See Figure . |
| Condenser (Body) (B26) | Under left side of rear seat. See Figure . |

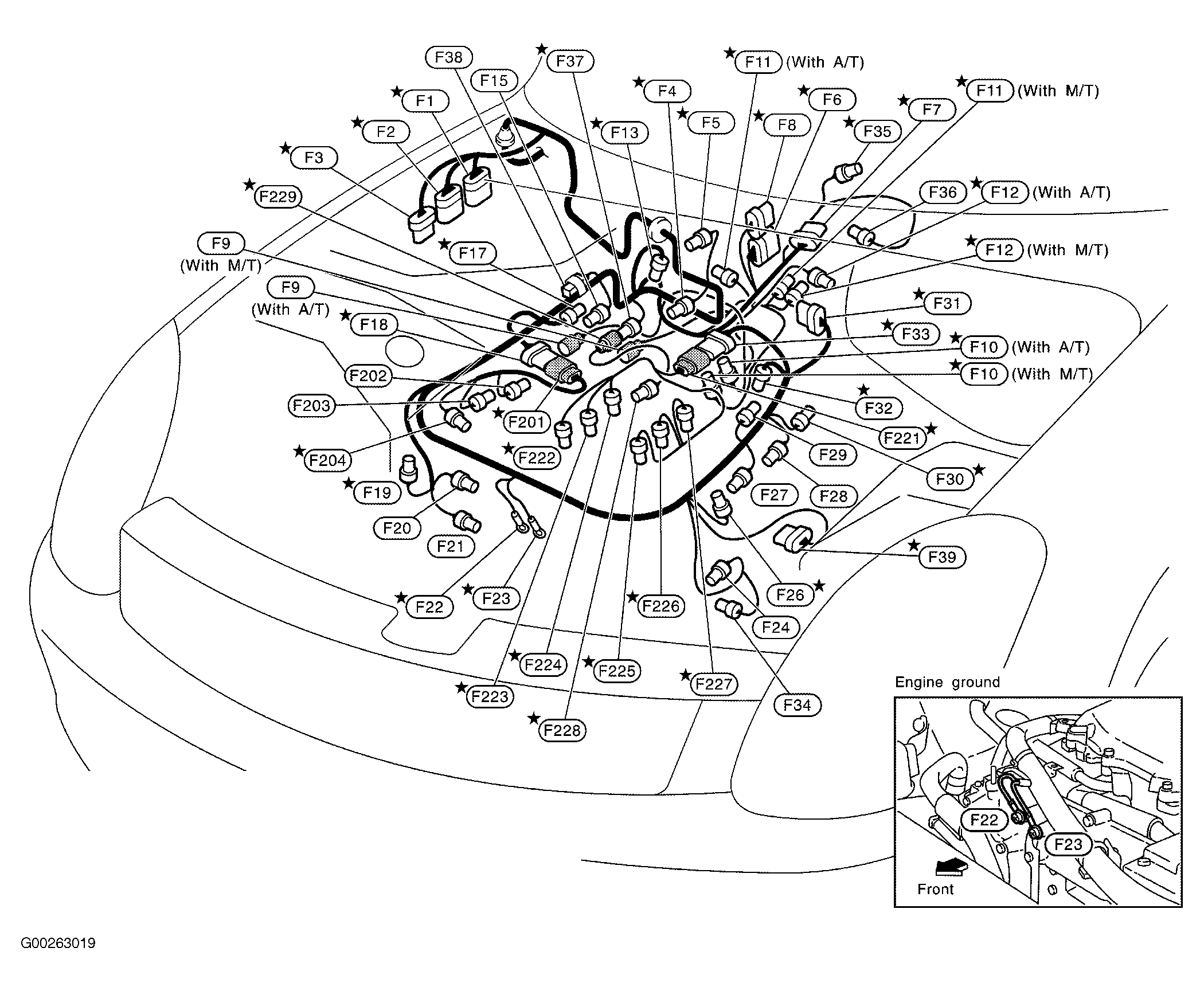

| Condenser (Engine) (AWD) (Late Production) (F38) | At right rear of engine. See Figure . |
| Condenser (Engine) (Early Production) (F38) | At right rear of engine. See Figure . |
| Condenser (Engine) (2WD) (Late Production) (F38) | At right rear of engine. See Figure . |
| Condenser (Rear Window Defogger) (B34) | At right "C" pillar. See Figure . |
| Data Link Connector (M8) | Lower left side of dash. See Figure . |
| Display & A/C Auto Amplifier | At top center of dash. See Figure . |
| Front Left Seat Belt Pre-Tensioner (B16) | At left "B" pillar. See Figure . |
| Front Power Seat (Driver Side) (W/Drive Positioner) (B6) | Under driver seat. See Figure . |
| Front Power Seat (Driver Side) (W/O Drive Positioner) (B7) | Under driver seat. See Figure . |
| Front Power Seat (Passenger Side) (B12) | Under front passenger seat. See Figure . |
| Front Right Seat Belt Pre-Tensioner (B22) | At right "B" pillar. See Figure . |
| GPS Antenna | Behind top center of dash, behind A/C auto amplifier. See Figure . |
| Horn (High) (C3) | Right front of engine compartment, behind grille. See Figure . |
| Horn (Low) (A5) | Right front of engine compartment, behind grille. See Figure . |

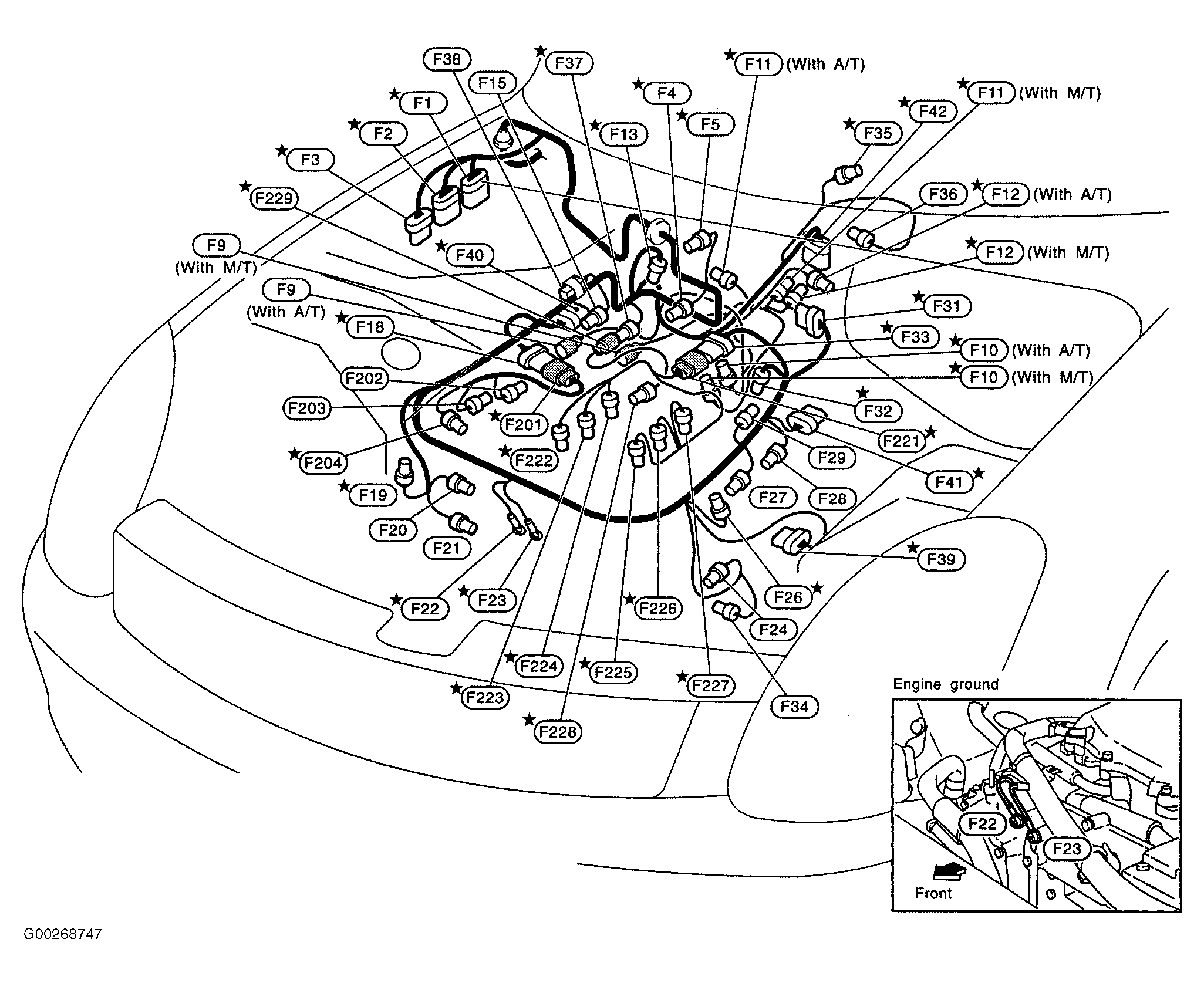

| Ignition Coil No. 1 (W/Power Transistor) (AWD) (Late Production) (F203) | At top of engine. See Figure . |
| Ignition Coil No. 1 (W/Power Transistor) (Early Production) (F203) | At top of engine. See Figure . |
| Ignition Coil No. 1 (W/Power Transistor) (2WD) (Late Production) (F203) | At top of engine. See Figure . |
| Ignition Coil No. 2 (W/Power Transistor) (AWD) (Late Production) (F27) | At top of engine. See Figure . |
| Ignition Coil No. 2 (W/Power Transistor) (Early Production) (F27) | At top of engine. See Figure . |
| Ignition Coil No. 2 (W/Power Transistor) (2WD) (Late Production) (F27) | At top of engine. See Figure . |
| Ignition Coil No. 3 (W/Power Transistor) (AWD) (Late Production) (F202) | At top of engine. See Figure . |
| Ignition Coil No. 3 (W/Power Transistor) (Early Production) (F202) | At top of engine. See Figure . |
| Ignition Coil No. 3 (W/Power Transistor) (2WD) (Late Production) (F202) | At top of engine. See Figure . |
| Ignition Coil No. 4 (W/Power Transistor) (AWD) (Late Production) (F28) | At top of engine. See Figure . |
| Ignition Coil No. 4 (W/Power Transistor) (Early Production) (F28) | At top of engine. See Figure . |
| Ignition Coil No. 4 (W/Power Transistor) (2WD) (Late Production) (F28) | At top of engine. See Figure . |
| Ignition Coil No. 5 (W/Power Transistor) (AWD) (Late Production) (F15) | At top of engine. See Figure . |
| Ignition Coil No. 5 (W/Power Transistor) (Early Production) (F15) | At top of engine. See Figure . |
| Ignition Coil No. 5 (W/Power Transistor) (2WD) (Late Production) (F15) | At top of engine. See Figure . |
| Ignition Coil No. 6 (W/Power Transistor) (AWD) (Late Production) (F29) | At top of engine. See Figure . |
| Ignition Coil No. 6 (W/Power Transistor) (Early Production) (F29) | At top of engine. See Figure . |
| Ignition Coil No. 6 (W/Power Transistor) (2WD) (Late Production) (F29) | At top of engine. See Figure . |

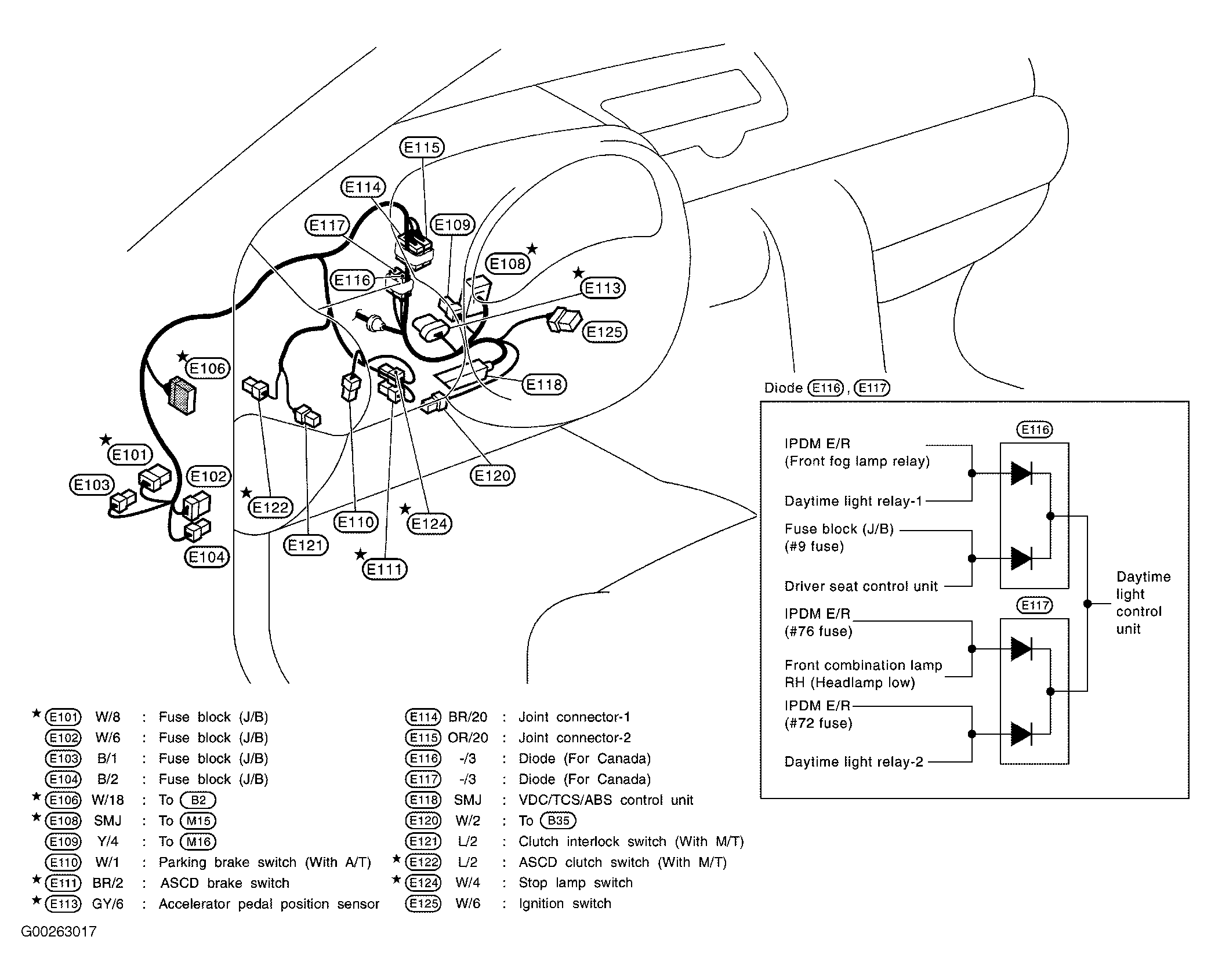

| Joint Connectors No. 1 & No. 2 (Early Production) | Behind left side of dash. See Figure . |

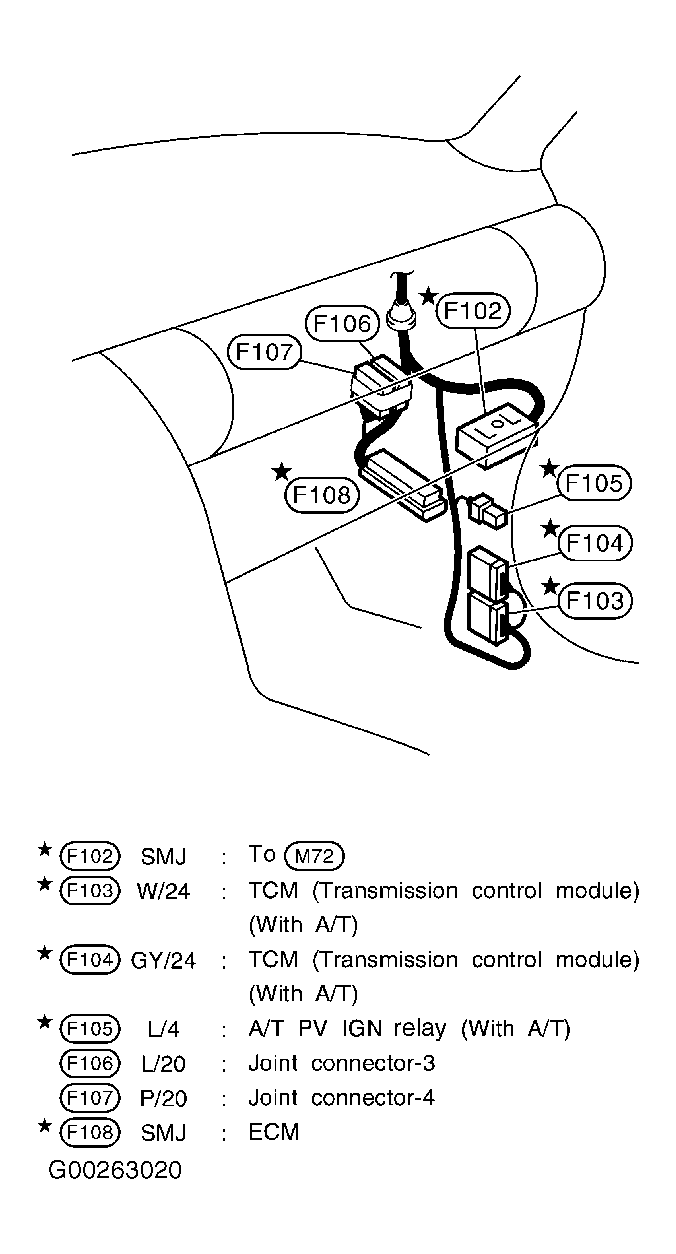

| Joint Connectors No. 3 & No. 4 | Behind right side of dash. See Figure . |
| NATS Antenna Amplifier | Behind left side of dash. See Figure . |
| Transfer Assembly (AWD) (Late Production) (F43) | At transfer case. See Figure . |
