2004.5 - Engine Control System - Component Testing - Sedan
>>
ASCD Indicator
>>
Wiring Diagram
ASCD Indicator: Wiring Diagram
NOTE:
For references to PG-POWER, see
GROUND DISTRIBUTION
&
POWER DISTRIBUTION
.

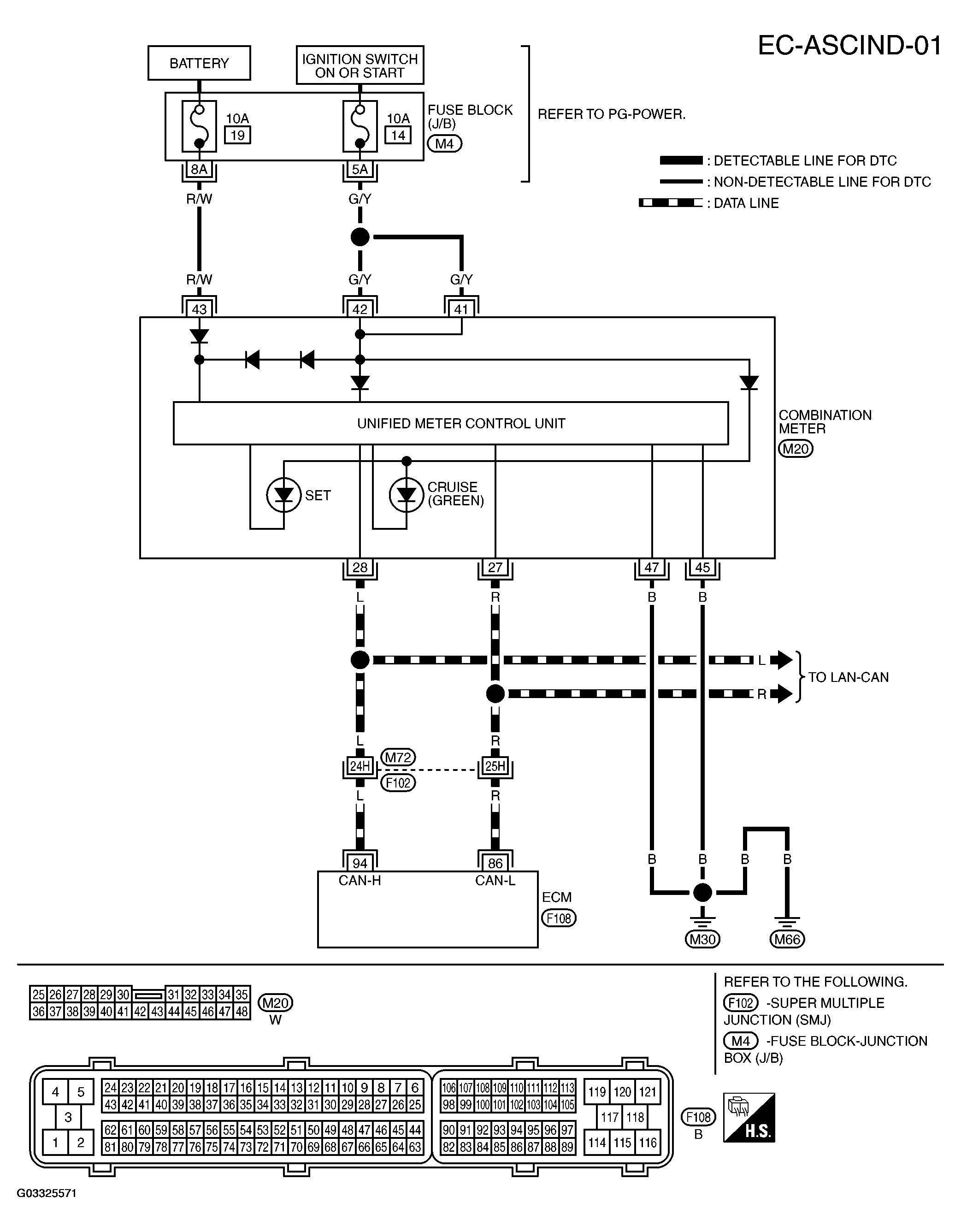

Fig 1: Wiring Diagram - EC-ASC/IND-01
Courtesy of NISSAN MOTOR CO., U.S.A.
