Home >> Infiniti >> 2004 >> G35 x >> Repair and Diagnosis >> Engine Performance >> System >> 2004 - Engine Control System - Sedan >> Trouble Diagnosis >> DTC P1217: Engine Over Temperature (For M/T Models) >> CONSULT-II Reference Value in Data Monitor Modes

CONSULT-II Reference Value in Data Monitor Modes

Specification data are reference values.

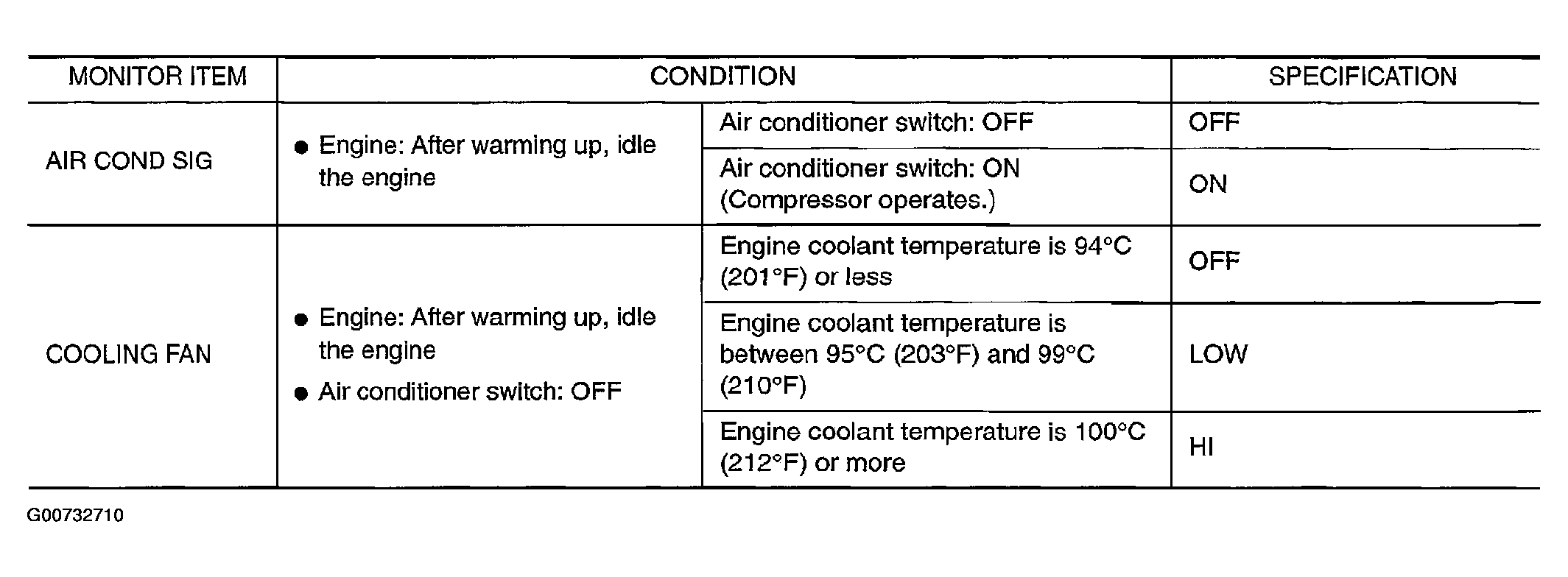

Fig 1: CONSULT-II Reference Value In Data Monitor Mode

G00732710

Courtesy of NISSAN MOTOR CO., U.S.A.
